RIEGLER Quick-connect coupling I.D. 19, Bright brass, G 1 1/4 IT
Type number: 419.06
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
141566EAN :
4047322568388Weight :
0.84 kgRIEGLER Quick-release coupling made of bare brass, for compressed air supply, G 1 1/4 female thread - Type 419.06
The RIEGLER quick-release coupling NW 19, blank brass, G 1 1/4 female thread connects and disconnects compressed air lines with a single movement - automatic sealing during disconnection. The housing is made of bright brass with NBR seals. The permissible medium temperature is between -20 °C and 100 °C. Connection thread G 1 1/4 IG - suitable for common industry standards. The flow rate is 8700 l/min (air) (at 6 bar and Δp = 0.5 bar). Connects and disconnects in seconds without tools.
Field of application
Typical areas of application: Workshop, production and mobile compressed air supply.
| Housing | Brass bright |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 8700 l/min (air) |
| Spring | Stainless steel |
| Sleeve | Brass bright |
| Threaded piece | Brass bright |
| Valve | Brass bright |
| Operating pressure | 0 - 35 bar |
| SW | 50 mm |
| NW | 19 |
| Length | 102 mm |
| Connection | G 1 1/4 FEMALE THREAD |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

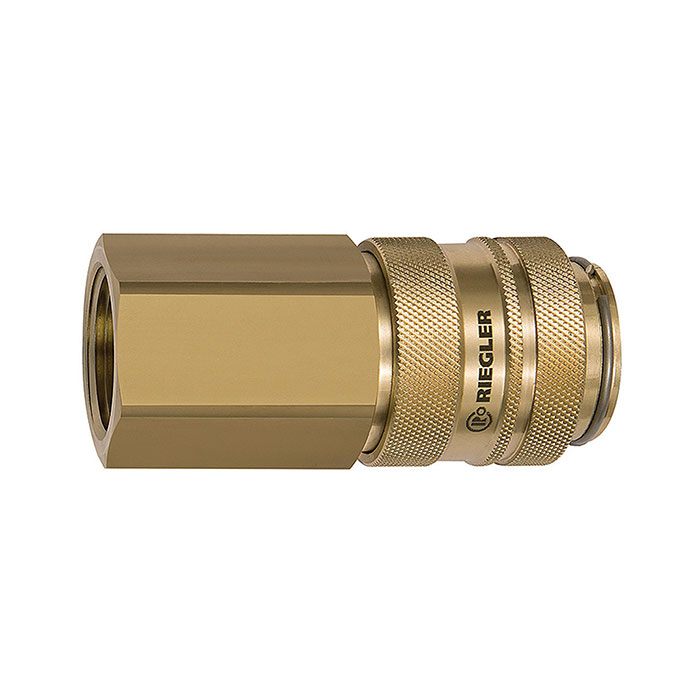

![[141565] RIEGLER Quick-connect coupling I.D. 19, Bright brass, G 1 IT](/web/image/product.template/208197/image_128/%5B141565%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%2019%2C%20Bright%20brass%2C%20G%201%20IT?unique=1e288b2)
|
Type number: 419.05 |
153.50 € | |

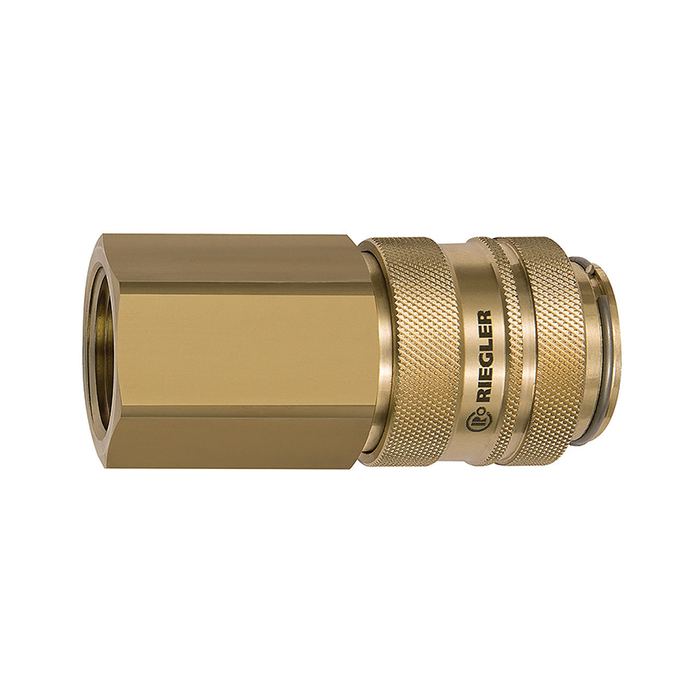

![[141564] RIEGLER Quick-connect coupling I.D. 19, Bright brass, G 3/4 IT](/web/image/product.template/208196/image_128/%5B141564%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%2019%2C%20Bright%20brass%2C%20G%203-4%20IT?unique=42d3b8e)
|
Type number: 419.04 |
153.50 € | |
