RIEGLER Swing safety coupling I.D. 6, ISO 6150 C, Steel, Sleeve I.D. 6
Type number: 423.21-SCH
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Swing safety coupling I.D. 6, ISO 6150 C, Steel, Sleeve I.D. 6, Operating pressure max. 25 bar, Temp. -20 °C to 100 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Medium | Compressed air, gases |
| Housing | Steel, QPQ treated |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 820 l/min (air) |
| Sleeve | Zinc die-cast, nickel-plated, red rubber-coated |
| Threaded piece | Galvanized steel |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 20 mm |
| NW | 6 |
| Length | 68 mm |
| Connection | LW 6 |
| Connector profile | according to ISO 6150 C |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

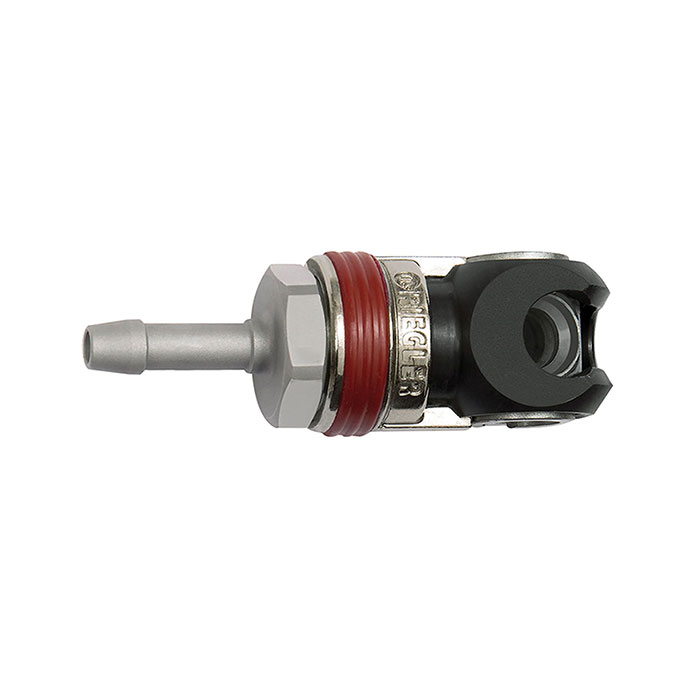

![[141636] RIEGLER Swing safety coupling I.D. 6, ISO 6150 C, Steel, Sleeve I.D. 10](/web/image/product.template/208251/image_128/%5B141636%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20Steel%2C%20Sleeve%20I.D.%2010?unique=163f8e9)
|
Type number: 423.24-SCH |
26.56 € | |
![[141635] RIEGLER Swing safety coupling I.D. 6, ISO 6150 C, Steel, Sleeve I.D. 8](/web/image/product.template/208250/image_128/%5B141635%5D%20RIEGLER%20Swing%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20Steel%2C%20Sleeve%20I.D.%208?unique=eb9aac9)
|
Type number: 423.22-SCH |
26.56 € | |
