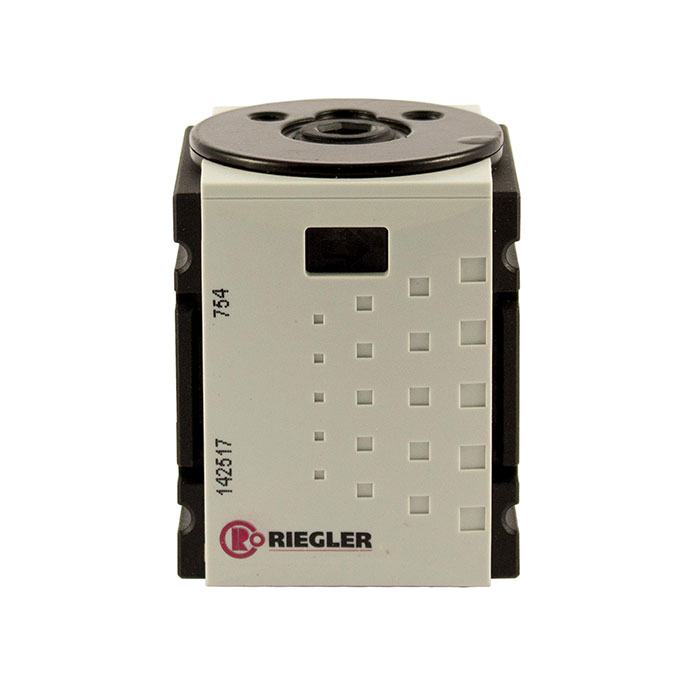

RIEGLER Distributor »FUTURA-mini«, Size 0, G 1/4, Outlets 2 x G 1/4
Type number: FUM 941
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Distributor »FUTURA-mini«, Size 0, G 1/4, Outlets 2 x G 1/4, Input pressure max. 12 bar, Temp. -10 °C to 50 °C
| Inlet pressure max. | 12 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Plastic |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA-mini |
| Thread | G 1/4 |
| Flow rate | 1 †' 2 2700 l/min, 1 †' 2.1 950 l/min, 1 †' 2.2 2000 l/min |
| Departure | 2 x G 1/4 |
| BG | 0 |
| A | 43 mm |
| B | 57 mm |
| C | 29 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS-No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | MAX |
