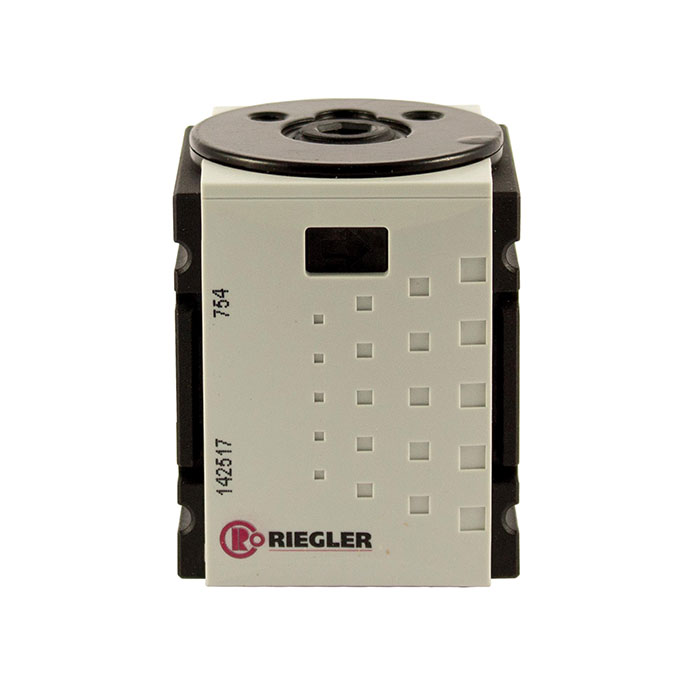

RIEGLER Distributor »FUTURA-mini«, Size 0, G 1/4, Outlets 2 x G 1/4
Type number: FUM 941
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER FUTURA-mini" manifold made of PA66 GF60, for compressed air preparation, G 1/4 - type FUM 941
The RIEGLER manifold "FUTURA-mini", BG 0, G 1/4, outlets 2 x G 1/4 expands maintenance systems modularly with additional functions. The housing is made of PA66 GF60. The maximum inlet pressure is 12 bar. The temperature range is between -10 °C and 50 °C. G 1/4 connection thread - suitable for common industry standards. Suitable for compressed air, neutral gases. The flow rate is 1 †' 2 2700 l/min, 1 †' 2.1 950 l/min, 1 †' 2.2 2000 l/min (at P2 = 6 bar and pressure drop Δp = 1 bar). Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure max. | 12 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Plastic |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA-mini |
| Thread | G 1/4 |
| Flow rate | 1 †' 2 2700 l/min, 1 †' 2.1 950 l/min, 1 †' 2.2 2000 l/min |
| Departure | 2 x G 1/4 |
| BG | 0 |
| A | 43 mm |
| B | 57 mm |
| C | 29 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS-No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | MAX |
