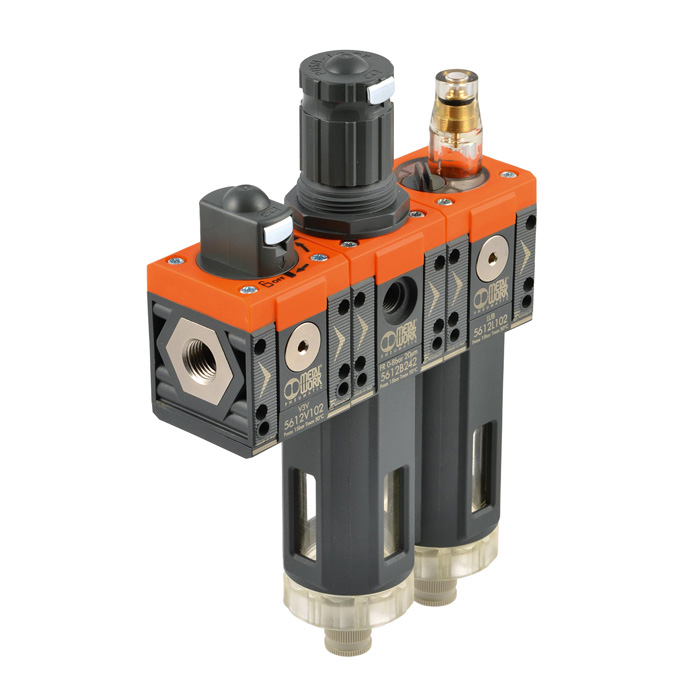

Shut-off valve + FR + oiler "SYNTESI", BG1, G 1/8, 20µm, 0...4 bar, RA
Type number: 60-2-OR-1438
EAN: 4047322765114
Shut-off valve + filter regulator + oiler "SYNTESI", BG 1, G 1/8, 20 µm, p1 max. = 10 bar, p2= 0...4 bar, RA fully automatic, T= -10...50 °C, o. Mano.
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Membrane | NBR 60 Shore (hardness) with polyester fabric insert |
| Container | Technopolymer |
| Filter fineness | 20 µm |
| Control range min. | 0 bar |
| Control range max. | 4 bar |
| BG | 1 |
| Input connection | G 1/8 |
| Output connection | G 1/8 |
| A | 126 mm |
| B | 202 mm |
| Durchfluss_1 | 250 Nl/min |
| Durchfluss_2 | 1050 Nl/min |
| Flow rate measurement 1 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| N | 126.2 mm |
| Air purity class at the outlet according to | 4.7.- |
| Thread on front and back | G 1/8 |
| Series | Syntesi |
| Dropper attachment | Brass |
| Spring cover | Technopolymer |
| Condensate drain | RA fully automatic |
