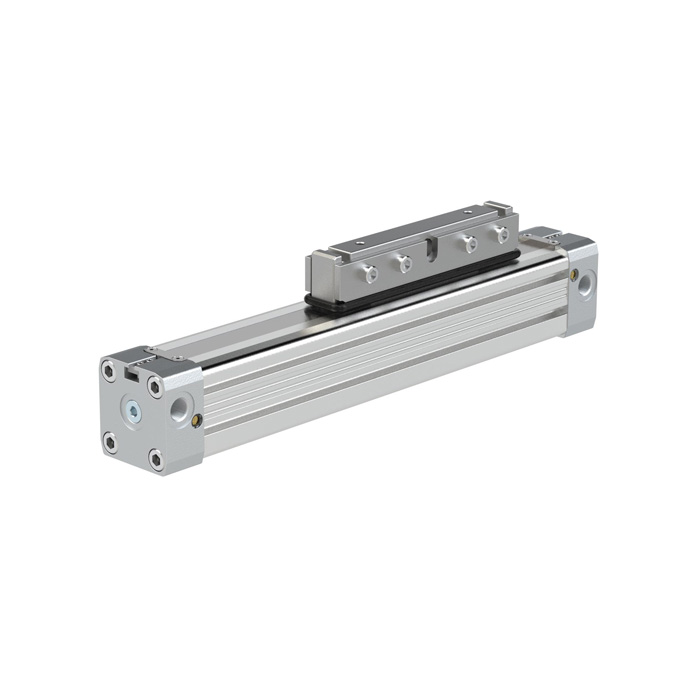

Rodless cylinder ZRL1C, Ø 25, stroke 1000, FPM seals
Type number: 2211-ES
EAN: 4047322769907
Rodless cylinder ZRL1C, Ø 25, stroke 1000, FPM seals, working pressure 0.5 - 8 bar, temperature range -10 to 80 °C
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Medium | Filtered compressed air (max. 50 µm) |
| Sealing material | Oil-resistant plastic (FPM) |
| Working pressure min. | 0.5 bar |
| Working pressure max. | 8 bar |
| Installation position | any |
| Sealing tapes | Stainless steel |
| Piston Ø | 25 mm |
| Function | double-acting |
| Stroke | 1000 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 1/8 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | no SVHC substance |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
| Magnet | with magnet |
| Damping | with adjustable damping |
| Piston caps and sliding parts | abrasion-resistant plastic |
| Stand Material Compliance | 44621 |
| Air connection | 3-fold on both sides |
| Screws | Steel 10.9 galvanized |
| Load clutch | Rigid |
