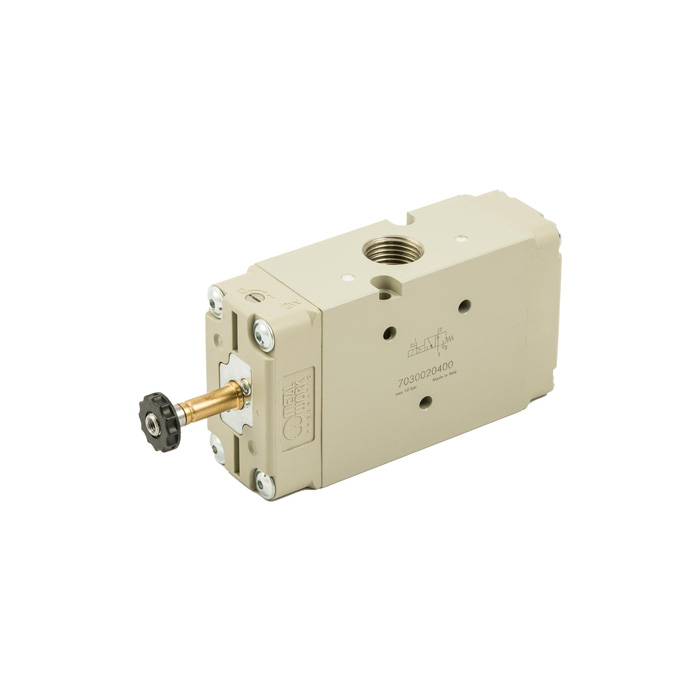

3/2-way valve, electropneumatic, monostable, G 1/2, NO
Type number: 0216267
EAN: 4047322771658
Product no. :
145694Category :
Valves Electropneumatically Operated3/2-way valve, electropneumatic, monostable, G 1/2, NO, p = 2.5 ... 10 bar, T = -10 ... 60 °C, aluminum, without plug/coil
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Operating pressure min. | 2.5 bar |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Manual override | resting |
| DN | 15 |
| Function | 3/2 NO |
| Actuation | monostable |
| Symbol | 32 |
| Connection | G 1/2 |
| Durchfluss_1 | 3200 Nl/min |
| Durchfluss_2 | 4600 Nl/min |
| Class name | PLUS |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
