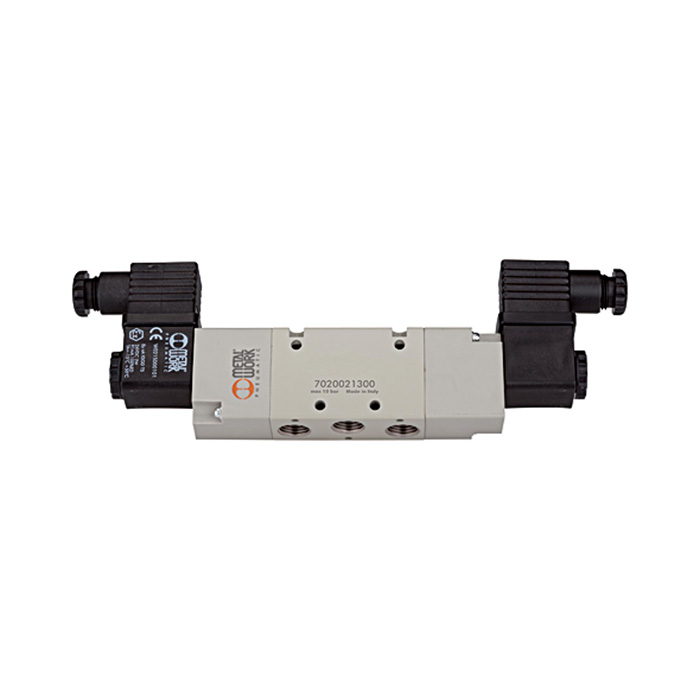

5/2-way valve, diff. spool, electropneumatic, bistable, G 1/8, 12 V DC

Price:

89.88 €
    ​
English (US)
  2. Shop
  3. Control Valves
  4. 5/2-way valve, diff. spool, electropneumatic, bistable, G 1/8, 12 V DC
5/2-way valve, electropneumatic, bistable, G 1/8, 110 V AC
5/2-way valve, electropneumatic, bistable, G 1/8, 110 V AC
88.61 €
88.61 €
5/2-way valve, diff. piston, electropneumatic, bistable, G 1/8, 24 V AC
5/2-way valve, diff. piston, electropneumatic, bistable, G 1/8, 24 V AC
89.88 €
89.88 €

5/2-way valve, diff. spool, electropneumatic, bistable, G 1/8, 12 V DC

https://www.filcom-technik.de/web/image/product.template/275784/image_1920?unique=ba23f85

Type number: 400-514-01

EAN: 4047322773751

89.88 € 89.88 EUR 89.88 € VAT Included

116.20 € VAT Included

    This combination does not exist.

    from 110 € free shipping Details shipping costs
    Contact Us
    Product no. :
    145860
    Category :
    Valves Electropneumatically Operated

    5/2-way valve, differential piston, electropneumatic, bistable, G 1/8, 12 V DC, p = 1 ... 10 bar, aluminum
    Medium Filtered compressed air with or without lubrication. If lubricated, then continuous.
    Sealing material NBR
    Series Valves Series 70
    Operating pressure min. 1 bar
    Max. operating pressure 10 bar
    Medium temperature min. -10 °C
    Medium temperature max. 60 °C
    Ambient temperature min. -10 °C
    Ambient temperature max. 50 °C
    Manual override resting
    DN 5
    Actuation Differential piston, bistable
    Symbol 40
    Tension 12 V DC
    Connection G 1/8
    Durchfluss_1 400 Nl/min
    Durchfluss_2 550 Nl/min
    Class name PLUS
    Function 45327
    Flow rate measurement 1 Flow rate at 6 bar and Δp 0.5 bar
    Flow rate measurement 2 Flow rate at 6 bar and Δp 1.0 bar
