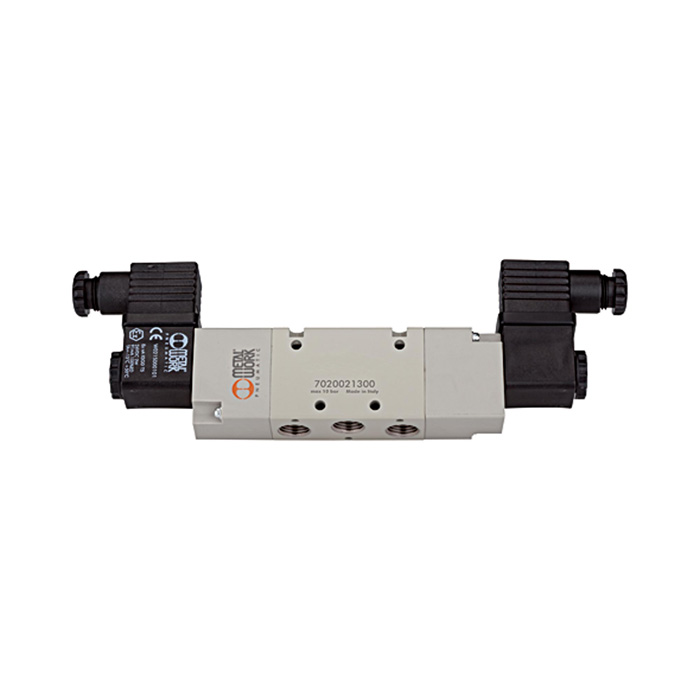

5/2-way valve, diff. piston, electropneumatic, bistable, G 1/8, 110VAC
Type number: 400-514-17
EAN: 4047322773775
Product no. :
145862Category :
Valves Electropneumatically Operated5/2-way valve, differential piston, electropneumatic, bistable, G 1/8, 110 V AC, 50/60 Hz, p = 1 ... 10 bar, aluminum
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Operating pressure min. | 1 bar |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Manual override | resting |
| DN | 5 |
| Actuation | Differential piston, bistable |
| Symbol | 40 |
| Connection | G 1/8 |
| Durchfluss_1 | 400 Nl/min |
| Durchfluss_2 | 550 Nl/min |
| Class name | PLUS |
| Function | 45327 |
| Tension | 110 V, 50/60 Hz |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
