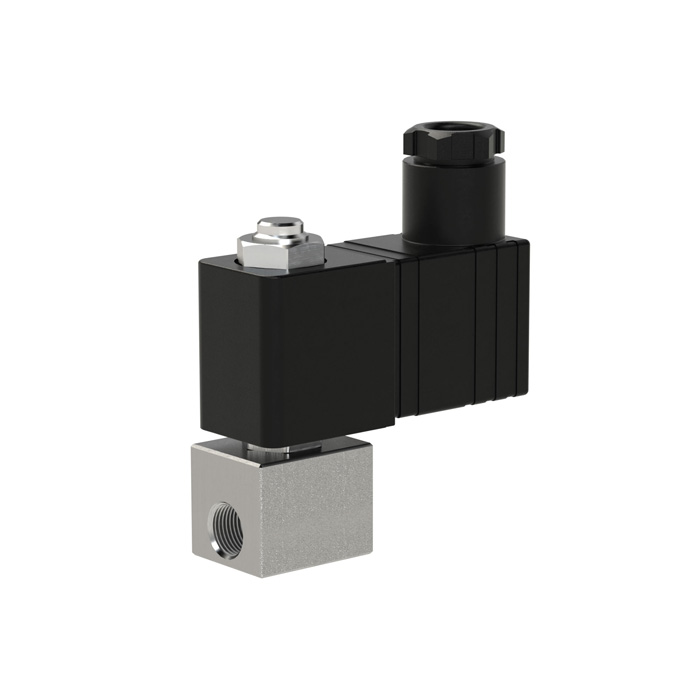

2/2 MV, NC, ES, G1/8, DN 2.5, PN 0-14, FPM, direct, 230V AC
Type number: 517.32.12.B.24A
EAN: 4047322776424
Product no. :
146067Category :
Solenoid Valves2/2-way solenoid valve, NC, ES, G 1/8, DN2.5, PN 0-14 bar, FPM, direct acting, 230V AC, medium temp. -15 to 100, ambient temp. -20 to 55
| Housing | Stainless steel |
| Sealing material | FPM |
| Duty cycle | 1 |
| Protection class | IP 65 (when using the cable plug) |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 14 bar |
| Medium temperature min. | -15 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 55 °C |
| Interior parts | Stainless steel |
| Thread | G 1/8 |
| DN | 45414 |
| Function | normally closed (NC) |
| Class name | PLUS |
| Spannungstoleranz | ± 10% according to VDE 0580 |
| Power consumption | 9VA |
| Electrical connection | Cable plug, industrial standard, type B - EN 175301-803-B |
| Installation position | Magnet preferably at the top |
| Valve seat | Stainless steel |
| Tension | 230 V AC |
