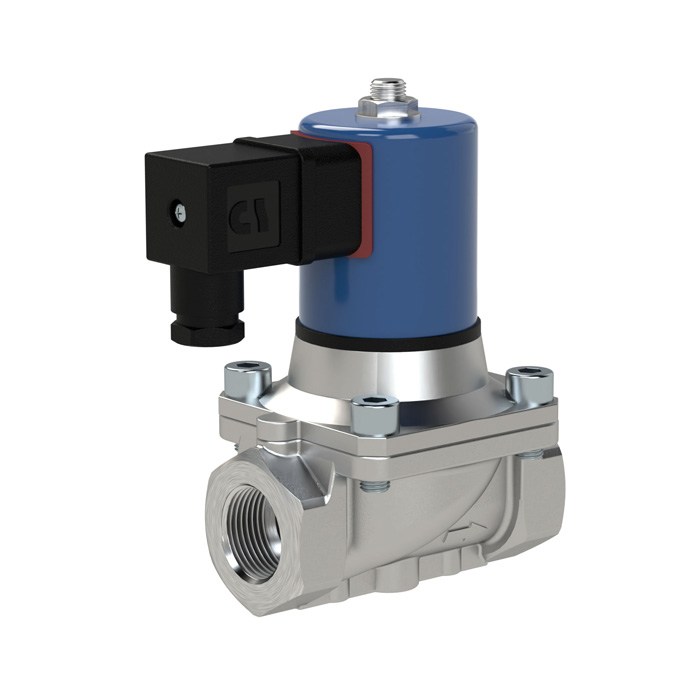

2/2 MV, NC, ES, G3/4, DN20, PN 0-12, NBR, forced, 24V DC
Type number: 517.52.18.B.110A
EAN: 4047322776516
Product no. :
146078Category :
Solenoid Valves2/2-way solenoid valve, NC, ES, G 3/4, DN20, PN 0-12 bar, NBR, forced, 24V DC, med. temp. -10 to 100, ambient temp. -10 to 50
| Housing | Stainless steel |
| Sealing material | NBR |
| Duty cycle | 1 |
| Protection class | IP 65 (when using the cable plug) |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 12 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Interior parts | Stainless steel |
| Thread | G 3/4 |
| DN | 20 |
| Function | normally closed (NC) |
| Tension | 24 V DC |
| Class name | PLUS |
| Spannungstoleranz | ± 10% according to VDE 0580 |
| Power consumption | 6,5W |
| Electrical connection | Cable plug, industrial standard type A - EN 175301-803-A |
| Installation position | Magnet preferably at the top |
| Valve seat | Stainless steel |
