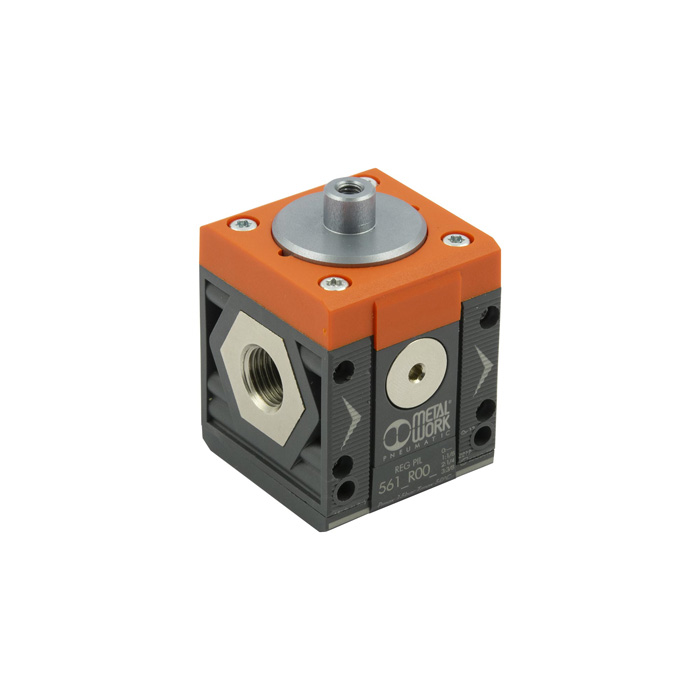

RIEGLER Pneumatic pilot operated pressure regulator "SYNTESI", BG 1, G 1/4
Type number: 517.52.14.B.12D
EAN: 4047322776578
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pneumatic pilot operated pressure regulator "SYNTESI", BG 1, G 1/4, p1 = max. 15 bar, T = -10 ... 50 °C, without pressure gauge
| Inlet pressure max. | 15 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Membrane | NBR 60 Shore (hardness) with polyester fabric insert |
| BG | 1 |
| Input connection | G 1/4 |
| Output connection | G 1/4 |
| A | 42 mm |
| B | 63 mm |
| D | 51.5 mm |
| Flow_1 | 1700 Nl/min |
| Flow_2 | 2800 Nl/min |
| Flow rate measurement 1 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Thread on front and back | G 1/8 |
| Pilot cover | Anodized aluminum plate |
| Pilot connection | M5 |
| Series | Syntesi |
