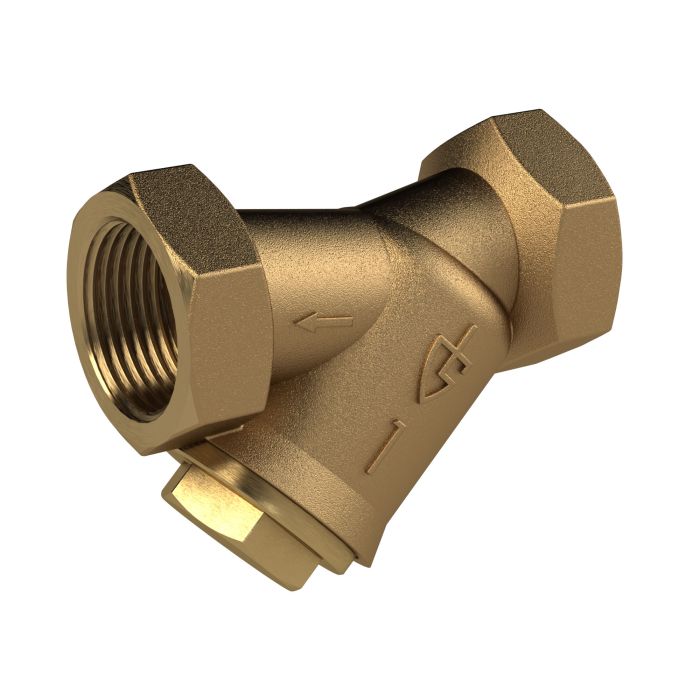

RIEGLER Strainer, gunmetal, G 3/8, DN 10, MW 0,25 mm
Typennummer: SCHFR.G38.MW0,25
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Dirt strainer, red brass, sieve insert mesh width 0.25 mm, operating temperature -25 °C to 130 °C, G 3/8, DN 10, PN max. 25 bar
| Thread | G 3/8 |
| DN | 10 |
| Mesh size | 0.25 mm |
| Housing | Gunmetal |
| Sealing material | NBR |
| Max. operating pressure | 25 bar |
| Operating temperature min. | -25 °C |
| Operating temperature max. | 130 °C |
| Head piece | Brass bright |
| Sieve insert | Stainless steel double sieve insert |
| SW 1 | 27 mm |
| SW 2 | 14 mm |
| C | 31 mm |
| L | 60.0 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| REACH Info | contains SVHC substance |
| Class name | FLEX |
