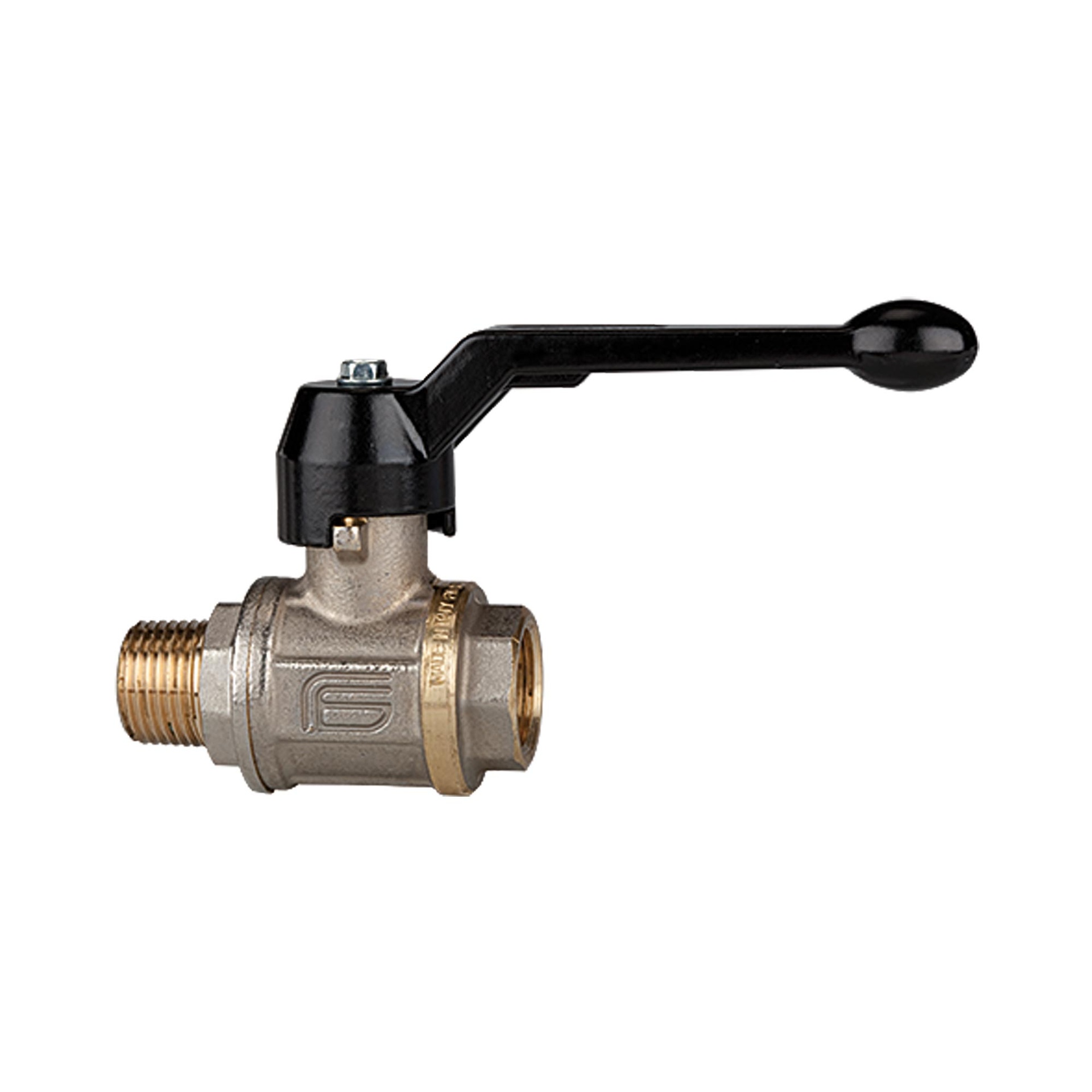

RIEGLER ball valve, heavy-duty design, hand lever, IG/AG, MS nickel-plated, G 3/8
Type number: 3350.33-1
EAN: 4047322793179
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
5/3-way valve, electropneumatic, ext. control line, center closed, G 1/2, 230 V AC, 50/60 Hz, p=vacuum ?10 bar, control pressure 2.5?10 bar, aluminum
| Thread standard | DIN EN ISO 228-1 |
| DN | 10 |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 130 °C |
| SW 2 | 21 mm |
| SW 1 | 21 mm |
| B | 54 mm |
| L | 56 mm |
| A | 75 mm |
| F | 8.5 mm |
| E | 8.5 mm |
| PN | 80 bar |
| Hand lever | Aluminum, painted black |
| Thread | G 3/8 |
| Class name | MAX |
| Thread material | Brass bright |
| Ball | Chrome-plated brass |
| Housing | Nickel-plated brass |
| Spindle seal | PTFE |
| Ball seal | PTFE |
