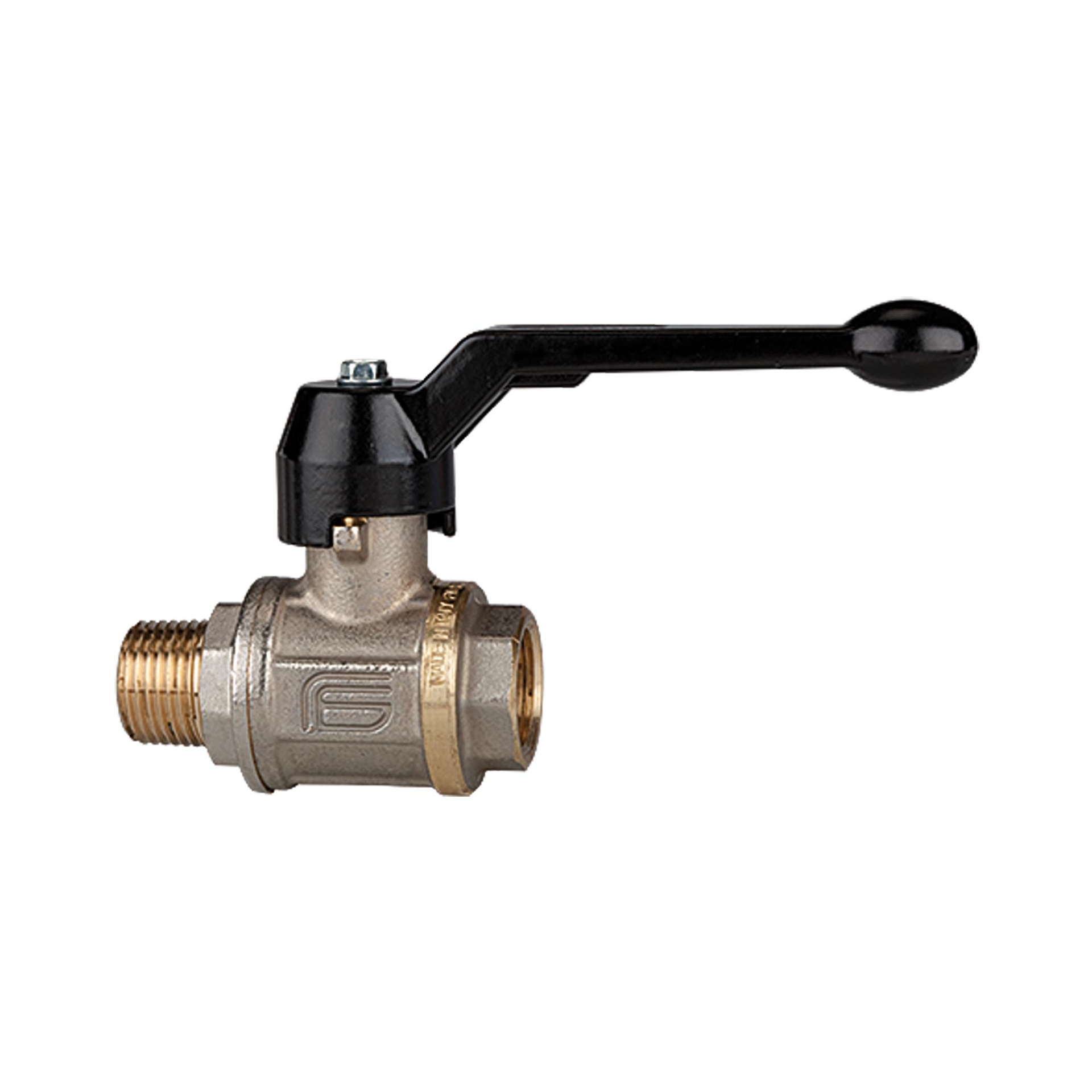

RIEGLER ball valve, heavy-duty design, hand lever, IG/AG, MS nickel-plated, G 3/8
Typennummer: 3350.33-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Ball valve, heavy-duty version, nickel-plated brass, for industrial systems, G 3/8 - Type 3350.33-1
The RIEGLER heavy-duty ball valve, hand lever, IG/AG, MS nickel-plated, G 3/8 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass. The operating temperature is between -20 °C and 130 °C. Connection thread G 3/8 (DIN EN ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.

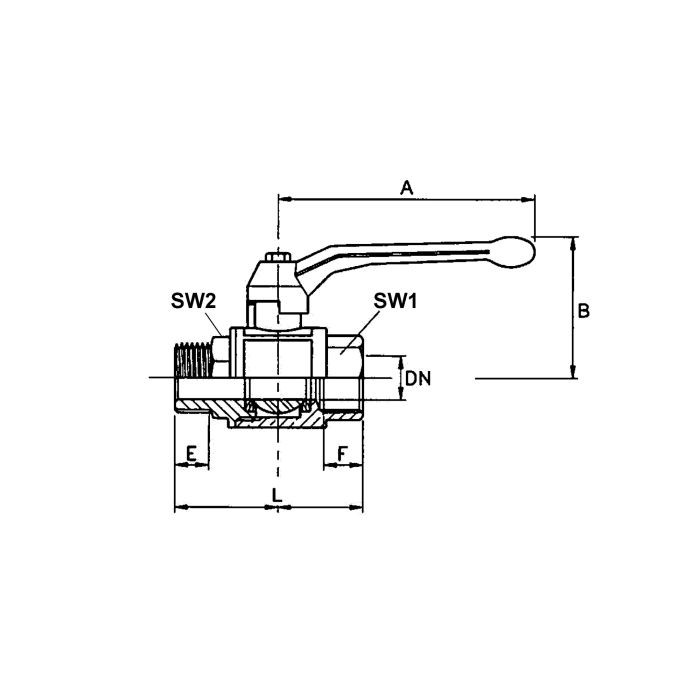

| Thread standard | DIN EN ISO 228-1 |
| DN | 10 |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 130 °C |
| SW 2 | 21 mm |
| SW 1 | 21 mm |
| B | 54 mm |
| L | 56 mm |
| A | 75 mm |
| F | 8.5 mm |
| E | 8.5 mm |
| PN | 80 bar |
| Hand lever | Aluminum, painted black |
| Thread | G 3/8 |
| Class name | MAX |
| Thread material | Brass bright |
| Ball | Chrome-plated brass |
| Housing | Nickel-plated brass |
| Spindle seal | PTFE |
| Ball seal | PTFE |
