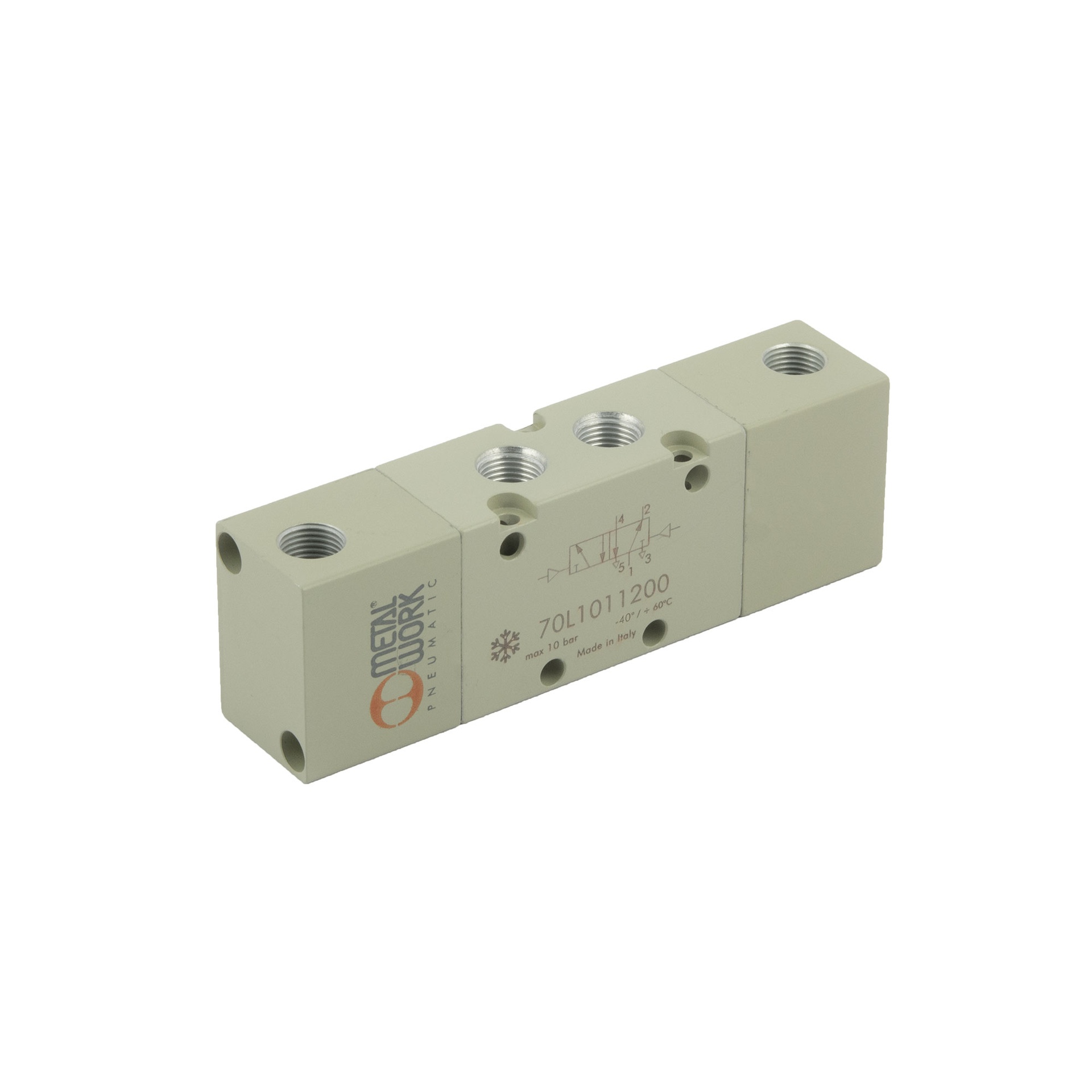

RIEGLER 5/2-way valve, low-temp., pneumatic, bistable, connection G 1/8
Typennummer: 70L1011200
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
5/2-way valve low temperature, pneumatic, bistable, G 1/8, pmax 10 bar, T = -40 ? 60 °C, aluminum
| Execution | pneumatic |
| Control pressure min. at -40 to -10 °C | 5 bar |
| Control pressure min. at -10 to 60 °C | 3 bar |
| Operating pressure min. at -40 to -10 °C | 5 bar |
| Operating pressure min. at -10 to 60 °C | 3 bar |
| Symbol | 43 |
| Pilot air connection | G 1/8 IG |
| Series | Series 70 Low temperature |
| Medium | filtered, dry and unlubricated compressed air |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Flow_2 | 550 Nl/min |
| Flow_1 | 400 Nl/min |
| Piston | Nickel-plated aluminum |
| Actuation | bistable |
| DN | 5 |
| Temperature range min. | -40 °C |
| Function | 5/2 |
| Control pressure max. | 10 bar |
| Max. operating pressure | 10 bar |
| Temperature range max. | 60 °C |
| Valve body | Aluminum |
| Connection | G 1/8 FEMALE THREAD |
| Sealing material | NBR |
| Class name | PLUS |
| Spring | Special steel |
