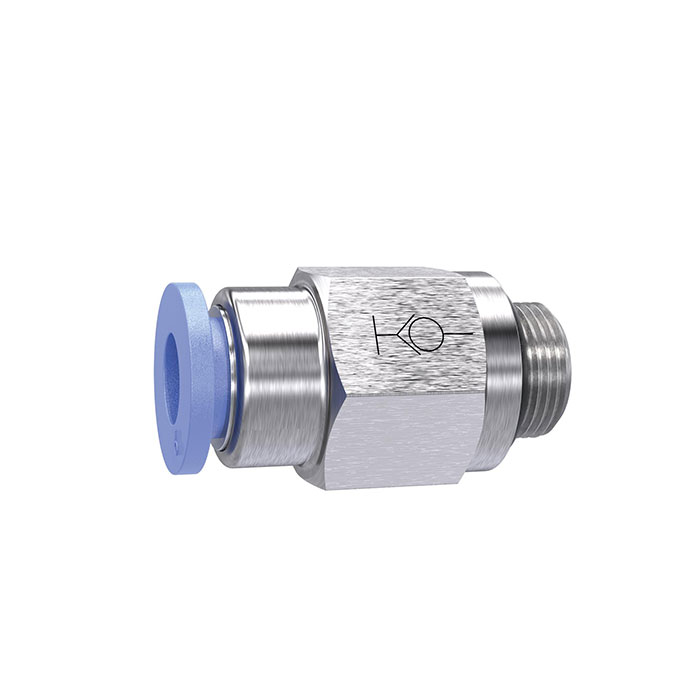

RIEGLER Straight Push-in fitting »Blue Series«, Self-locking, G 1/2 o.
Type number: 195.1212-2
EAN: 4047322593052
Ger. push-in fitting "Blue series" self-closing, G 1/2 a., for male Ø 12 mm, pmax. 10 bar, plastic/MS nickel-plated
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems |
| Solder ring | Blue plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | G 1/2 |
| SW | 21 mm |
| Thread standard | DIN EN ISO 228-1 |
| Function | Self-locking |
| for hose outer Ø | 12 mm |
| Execution | With O-ring (NBR) |
| L1 | 36.5 mm |
| Class name | EASY |
