RIEGLER Straight Check valve »Blue Series«, Thread to hose, M5 o.
Typennummer: 200.54-2
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ger. non-return valve "Blue Series", M5 a., for external Ø 4 mm, pmax. 10 bar, plastic/MS, nickel-plated.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Opening pressure min. | 0.2 bar |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems |
| Flow direction | Thread to the hose |
| Solder ring | Blue plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | M5 |
| SW | 10 mm |
| Thread standard | DIN 13-1 |
| for hose outer Ø | 4 mm |
| Execution | With O-ring (NBR) |
| L1 | 33 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[151498] RIEGLER Straight Check valve »Blue Series«, Thread to hose, G 1/2 o.](/web/image/product.template/210653/image_128/%5B151498%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Thread%20to%20hose%2C%20G%201-2%20o.?unique=d08960f)
|
Typennummer: 200.1210-2 |
6.02 € | |
![[151499] RIEGLER Straight Check valve »Blue Series«, Thread to hose, G 1/2 o.](/web/image/product.template/210654/image_128/%5B151499%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Thread%20to%20hose%2C%20G%201-2%20o.?unique=45f694c)
|
Typennummer: 200.1212-2 |
7.24 € | |

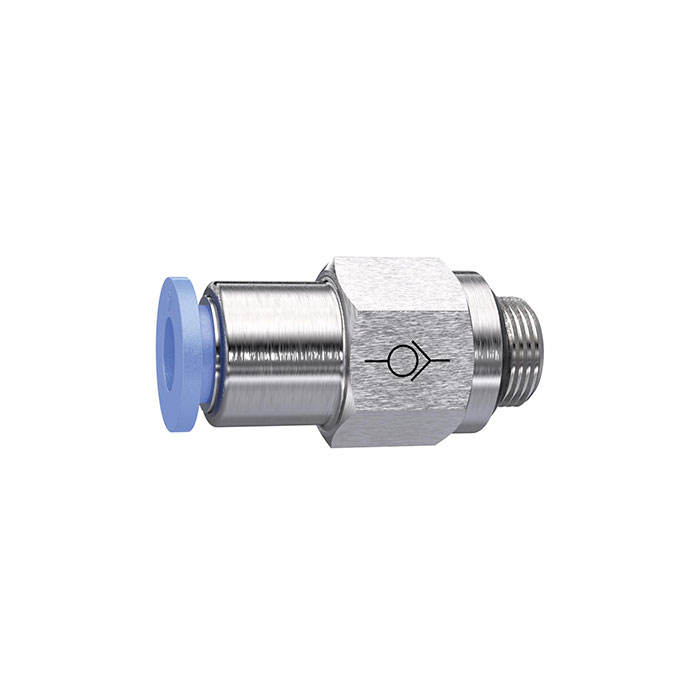

![[151495] RIEGLER Straight Check valve »Blue Series«, Thread to hose, G 1/4 o.](/web/image/product.template/210650/image_128/%5B151495%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Thread%20to%20hose%2C%20G%201-4%20o.?unique=e460820)
|
Typennummer: 200.148-2 |
4.41 € | |
![[151494] RIEGLER Straight Check valve »Blue Series«, Thread to hose, G 1/4 o.](/web/image/product.template/210649/image_128/%5B151494%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Thread%20to%20hose%2C%20G%201-4%20o.?unique=fb2ef85)
|
Typennummer: 200.146-2 |
4.37 € | |
![[151491] RIEGLER Straight Check valve »Blue Series«, Thread to hose, G 1/8 o.](/web/image/product.template/210646/image_128/%5B151491%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Thread%20to%20hose%2C%20G%201-8%20o.?unique=dd955c0)
|
Typennummer: 200.184-2 |
2.43 € | |
![[151493] RIEGLER Straight Check valve »Blue Series«, Thread to hose, G 1/8 o.](/web/image/product.template/210648/image_128/%5B151493%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Thread%20to%20hose%2C%20G%201-8%20o.?unique=cdda90a)
|
Typennummer: 200.188-2 |
2.93 € | |
![[151492] RIEGLER Straight Check valve »Blue Series«, Thread to hose, G 1/8 o.](/web/image/product.template/210647/image_128/%5B151492%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Thread%20to%20hose%2C%20G%201-8%20o.?unique=8235597)
|
Typennummer: 200.186-2 |
2.45 € | |
![[151496] RIEGLER Straight Check valve »Blue Series«, Thread to hose, G 3/8 o.](/web/image/product.template/210651/image_128/%5B151496%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Thread%20to%20hose%2C%20G%203-8%20o.?unique=7089af7)
|
Typennummer: 200.3810-2 |
5.41 € | |
![[151497] RIEGLER Straight Check valve »Blue Series«, Thread to hose, G 3/8 o.](/web/image/product.template/210652/image_128/%5B151497%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Thread%20to%20hose%2C%20G%203-8%20o.?unique=905f577)
|
Typennummer: 200.3812-2 |
6.21 € | |
