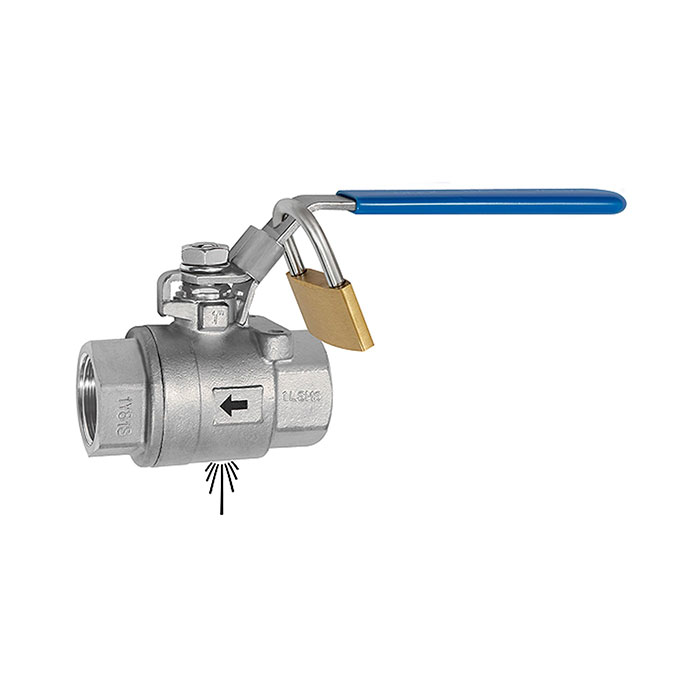

RIEGLER Stainless steel ball valve, lockable, venting hole, G 1
Type number: 3396.06
EAN: 4047322595230
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Stainless steel ball valve, lockable, vent hole M5, operating temp. -20 °C to 160 °C, G 1, DN 25, PN max. 17 bar
| Housing | Stainless steel 1.4408 |
| Max. operating pressure | 17 bar |
| Ball | Stainless steel 1.4408 |
| Ball seal | PTFE + PFA |
| Spindle seal | PTFE |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 160 °C |
| Thread | G 1 |
| DN | 25 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| Vent hole | M5 |
| Note | The item images may differ from the original part |
| A | 145 mm |
| B | 69.3 mm |
| L | 88.7 mm |
| C Ø | 25 mm |
| Theme shop | SAFETY |
| Class name | STAINLESS STEEL |
| Bore diameter padlock | approx. 7.8 mm |
