RIEGLER 3/2-way solenoid valve, Stainless steel, NC, 24 V DC, NBR, G 1/4
Typennummer: MV14ES24
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3/2-way solenoid valve, Stainless steel, NC, Directly operated, 24 V DC, Medium temp. -25 °C to 90 °C, NBR, G 1/4, PN 0 - 6 bar
| Housing | Stainless steel 1.4301 |
| Sealing material | NBR |
| Protection class | IP 65 (when using the cable plug) |
| Electrical connection | for cable plug PG 11 P, to DIN 4400 |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 6 bar |
| Medium temperature min. | -25 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -25 °C |
| Ambient temperature max. | 55 °C |
| Interior parts | Stainless steel |
| Thread | G 1/4 |
| DN | 45325 |
| Function | normally closed (NC) |
| Tension | 24 V DC |
| A | 95 mm |
| B | 40 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

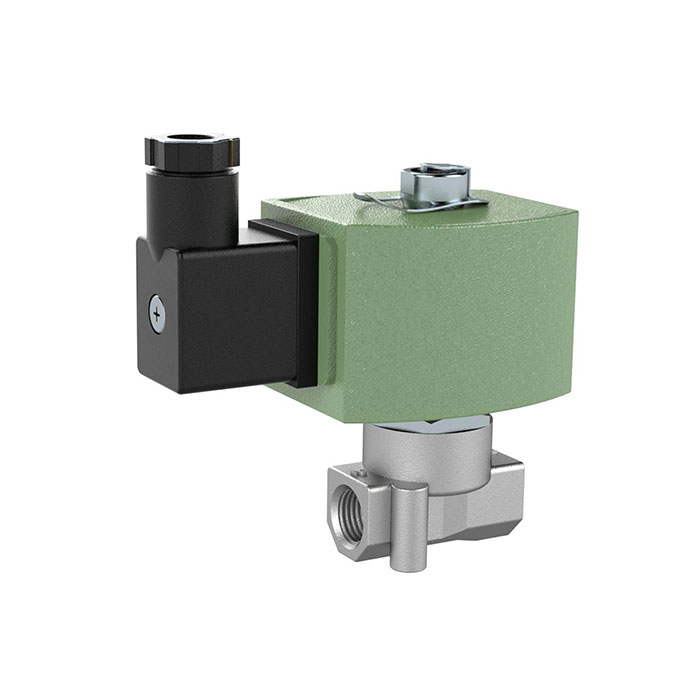

![[158062] RIEGLER 3/2-way solenoid valve, Stainless steel, NC, 230 V AC, NBR, G 1/4](/web/image/product.template/214565/image_128/%5B158062%5D%20RIEGLER%203-2-way%20solenoid%20valve%2C%20Stainless%20steel%2C%20NC%2C%20230%20V%20AC%2C%20NBR%2C%20G%201-4?unique=ce82cf8)
|
