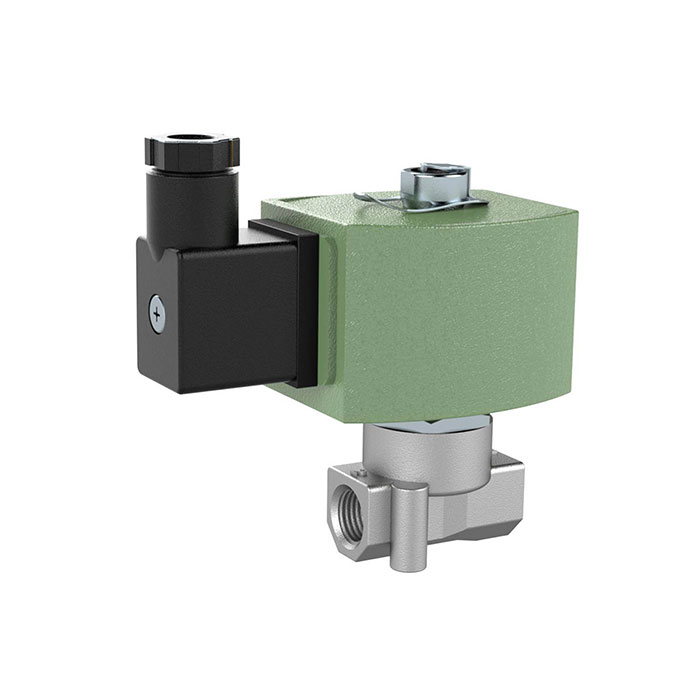

RIEGLER 3/2-way solenoid valve, Stainless steel, NC, 24 V DC, NBR, G 1/4
Typennummer: MV14ES24
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-way MV. made of stainless steel 1.4301, for industrial systems, max. 6 bar - Type MV14ES24
The RIEGLER 3/2-way valve, ES, NC, direct acting, 24 V DC, NBR, G 1/4, PN 0 - 6 bar switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of stainless steel 1.4301 with NBR seals. The operating pressure range is 0 bar to 6 bar. The permissible medium temperature is between -25 °C and 90 °C. Connection thread G 1/4 - suitable for common industry standards. Operating voltage 24 V DC, protection class IP 65 (when using the cable plug). Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Housing | Stainless steel 1.4301 |
| Sealing material | NBR |
| Protection class | IP 65 (when using the cable plug) |
| Electrical connection | for cable plug PG 11 P, to DIN 4400 |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 6 bar |
| Medium temperature min. | -25 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -25 °C |
| Ambient temperature max. | 55 °C |
| Interior parts | Stainless steel |
| Thread | G 1/4 |
| DN | 45325 |
| Function | normally closed (NC) |
| Tension | 24 V DC |
| A | 95 mm |
| B | 40 mm |
| Class name | STAINLESS STEEL |
