RIEGLER 3/2-way solenoid valve stainless steel, NC, 24 V DC, FPM, G 1/8
Typennummer: MV18ES24
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3/2-way solenoid valve, Stainless steel, NC, Directly operated, 24 V DC, Medium temp. -10 °C to 100 °C, FPM, G 1/8, PN 0 - 15 bar
| Housing | Stainless steel 1.4401 |
| Sealing material | FPM |
| Protection class | IP 65 (when using the cable plug) |
| Electrical connection | for cable plug PG 11 P, to DIN 4400 |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 15 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Interior parts | Stainless steel |
| Valve seat | Stainless steel 1.4401 |
| Thread | G 1/8 |
| DN | 45323 |
| Function | normally closed (NC) |
| Tension | 24 V DC |
| A | 60.5 mm |
| B | 33 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

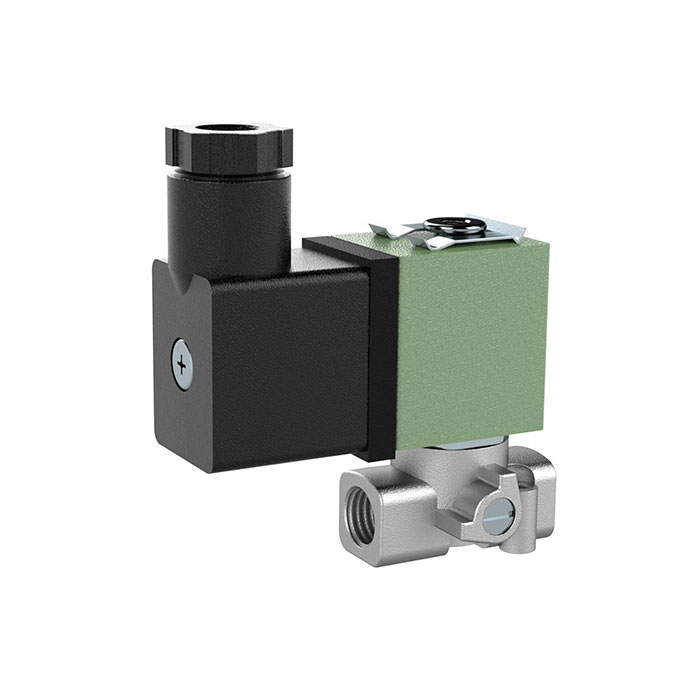

![[158093] RIEGLER 3/2-way solenoid valve stainless steel, NC, 230VAC,50-60Hz, G 1/8](/web/image/product.template/214590/image_128/%5B158093%5D%20RIEGLER%203-2-way%20solenoid%20valve%20stainless%20steel%2C%20NC%2C%20230VAC%2C50-60Hz%2C%20G%201-8?unique=f05e561)
|
