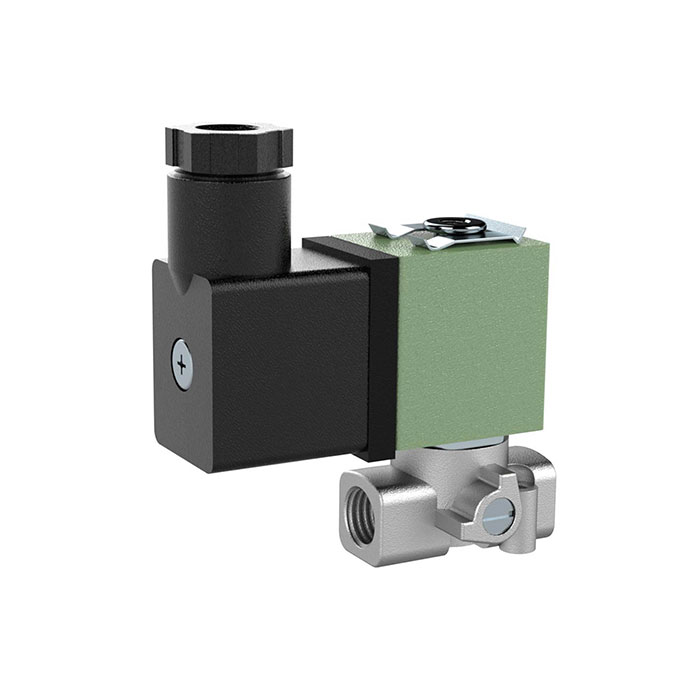

RIEGLER 3/2-way solenoid valve stainless steel, NC, 24 V DC, FPM, G 1/8
Typennummer: MV18ES24
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-way MV made of stainless steel 1.4401, for industrial systems, max. 15 bar - type MV18ES24
The RIEGLER 3/2 way MV, ES, NC, direct acting, 24 V DC, FPM, G 1/8, PN 0 - 15 bar switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of stainless steel 1.4401 with FPM seals. The operating pressure range is 0 bar to 15 bar. The permissible medium temperature is between -10 °C and 100 °C. Connection thread G 1/8 - suitable for common industry standards. Operating voltage 24 V DC, protection class IP 65 (when using the cable plug). Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Housing | Stainless steel 1.4401 |
| Sealing material | FPM |
| Protection class | IP 65 (when using the cable plug) |
| Electrical connection | for cable plug PG 11 P, to DIN 4400 |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 15 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Interior parts | Stainless steel |
| Valve seat | Stainless steel 1.4401 |
| Thread | G 1/8 |
| DN | 45323 |
| Function | normally closed (NC) |
| Tension | 24 V DC |
| A | 60.5 mm |
| B | 33 mm |
| Class name | STAINLESS STEEL |
