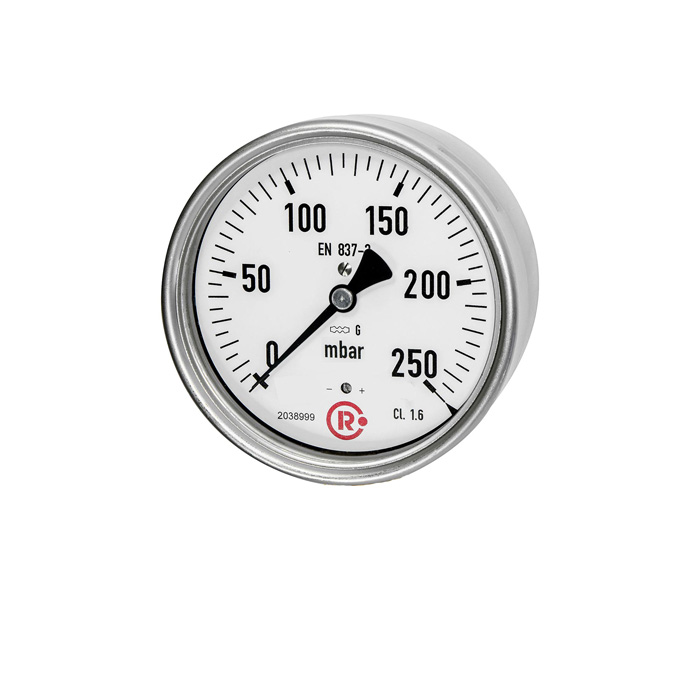

RIEGLER Capsule pressure gauge, G 1/2 rear centric, 0 - 250 mbar, Ø 100
Typennummer: 6825-R
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Capsule pressure gauge, Housing CrNi steel, Connection, rear, centric, G 1/2, Goods class 1.6, Measurement range 0-250 mbar, Ø100
| Housing | CrNi steel |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Area of application | for gaseous, dry and non-aggressive media |
| Measuring element | Copper alloy |
| Pointer movement | Brass |
| Diameter | 100 mm |
| Connection | G 1/2 |
| Graduation value in the mbar range | 5 mbar |
| Quality class | 45444 |
| Lower / Upper measuring range limit | Overpressure |
| Measuring range min. mbar | 0 |
| Measuring range max. mbar | 250 |
| Connection position | rear, centric |
| Class name | PLUS |
| Viewing window | Instrument glass |
| Process connection material | Brass |
