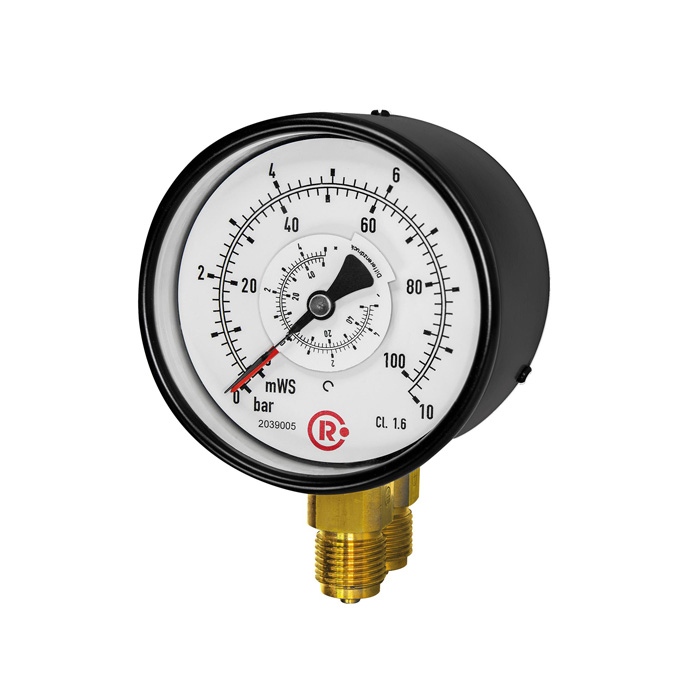

Differential pressure mano., 2x G 1/2 bottom, parallel, 0-10.0 bar, Ø 100
Type number: 435.7020-PU
EAN: 4047322699938
Product no. :
199336Category :
Differential Pressure GaugesDifferential pressure gauge with 2 parallel spigot connections radial bottom, G 1/2, grade 1.6, measuring range 0-10.0 bar, Ø 100
| Housing | Steel, black |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Measuring element | Copper alloy |
| Pointer movement | Brass |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 10 |
| Diameter | 100 mm |
| Graduation value in the bar range | 0.2 bar |
| Connection | G 1/2 |
| Quality class | 45444 |
| Lower / Upper measuring range limit | Overpressure |
| Ring | Steel, black |
| Connection position | radial bottom |
| Class name | PLUS |
| Viewing window | Instrument glass |
| Process connection material | Brass |
