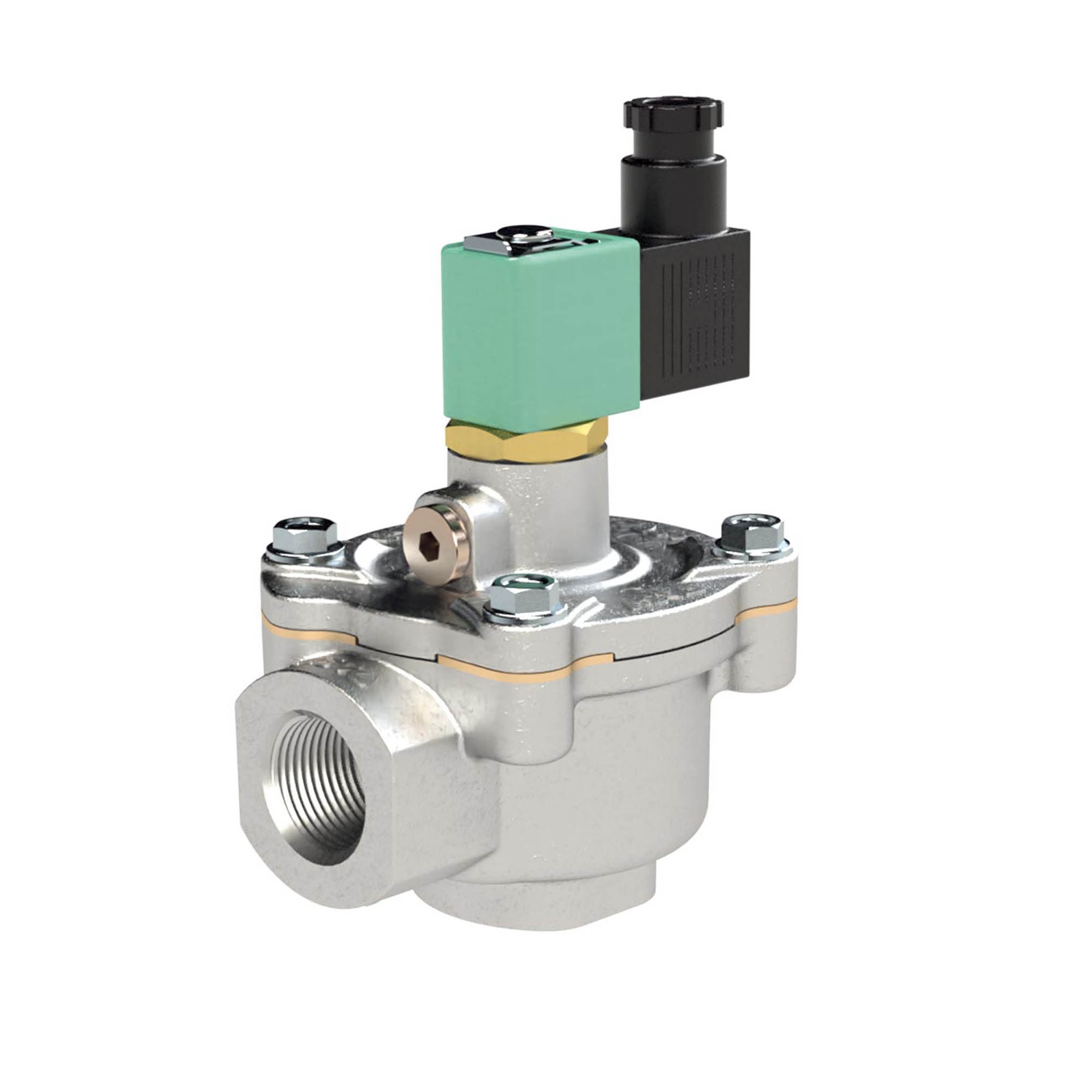

RIEGLER Pulse diaphragm valve, NC, 24 V DC internal pre-control, G 1
Type number: MV 4212-1 G
EAN: 4047322699983
Impulse diaphragm valve, NC, 24V DC, int. pilot, medium temp. -15 to 85°C, ambient temp. -20 to 85°C, G1, PN 2 - 8.5 bar, TPE
| Medium | Air, purge gas, raw gas |
| Housing | Aluminum |
| Sealing material | NBR |
| Membrane | TPE |
| Protection class | IP 65 (when using the appliance inlet/line socket) |
| Electrical connection | ISO 4400 appliance inlet/line socket |
| Operating pressure min. | 2 bar |
| Max. operating pressure | 8.5 bar |
| Medium temperature min. | -15 °C |
| Medium temperature max. | 85 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 85 °C |
| Interior parts | Stainless steel |
| Thread | G 1 |
| DN | 32 |
| Design | 1 |
| Function | normally closed (NC) |
| A | 61 mm |
| B | 90 mm |
| Vent connection | - |
| Class name | FLEX |
