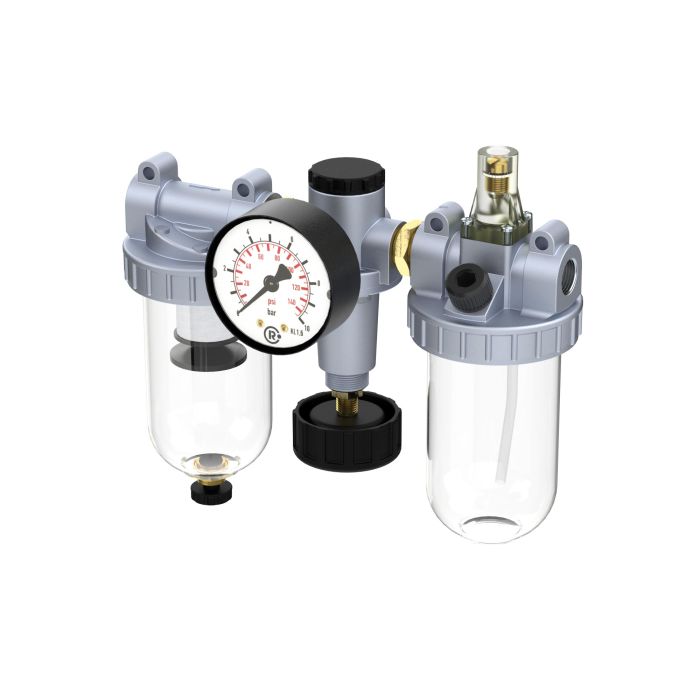

RIEGLER 3-piece "Standard" maintenance unit, with PC container, BG 2, G 3/8
Type number: 850 B.2
EAN: 4047322722056
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3-piece "Standard" maintenance unit with polycarbonate tank, BG 2, G 3/8, max. inlet pressure 16 bar, control range 0.5 - 10 bar
| A | 232 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.04 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Exception | 6b-I, 6c |
| B | 196.7 mm |
| Container | Polycarbonate container |
| BG | 2 |
| C | 51 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| Sealing material | NBR |
| DN | 6 |
| Flow_1 | 1400 l/min |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Inlet pressure max. | 16 bar |
| Filter fineness | 5 µm |
| Housing | Die-cast zinc / aluminum, painted silver |
| Thread | G 3/8 |
| Class name | EASY |
| Condensate drain | semi-automatic |
| Pressure gauge Ø | 50 mm |
| Pressure gauge display max. | 16 bar |
| Pressure gauge display min. | 0 bar |
| Material identification | CW614N |
| Medium temperature max. | 60 °C |
| Medium temperature min. | -10 °C |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| Control range max. | 10 bar |
| Control range min. | 0.5 bar |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Series | Standard |
| Dropper attachment | PA |
| Ambient temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
