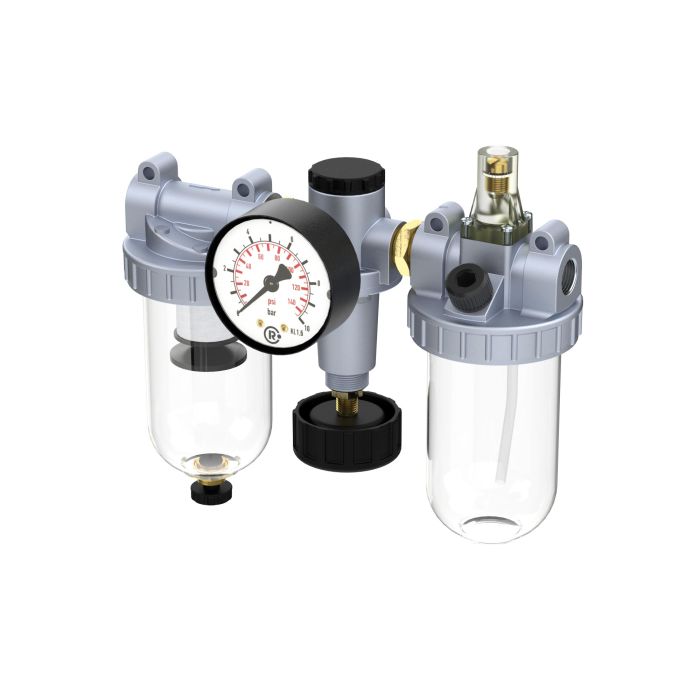

RIEGLER 3-piece "Standard" maintenance unit, with PC container, BG 2, G 3/8
Typennummer: 850 B.2
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Wartungseinheit 3-tlg. »Standard« mit Polycarbonatbehälter, BG 2, G 3/8, Eingangsdruck max. 16 bar, Regelbereich 0,5 - 10 bar
| A | 232 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.04 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Exception | 6b-I, 6c |
| B | 196.7 mm |
| Container | Polycarbonate container |
| BG | 2 |
| C | 51 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| Sealing material | NBR |
| DN | 6 |
| Flow_1 | 1400 l/min |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Inlet pressure max. | 16 bar |
| Filter fineness | 5 µm |
| Housing | Die-cast zinc / aluminum, painted silver |
| Thread | G 3/8 |
| Class name | EASY |
| Condensate drain | semi-automatic |
| Pressure gauge Ø | 50 mm |
| Pressure gauge display max. | 16 bar |
| Pressure gauge display min. | 0 bar |
| Material identification | CW614N |
| Medium temperature max. | 60 °C |
| Medium temperature min. | -10 °C |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| Control range max. | 10 bar |
| Control range min. | 0.5 bar |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Series | Standard |
| Dropper attachment | PA |
| Ambient temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

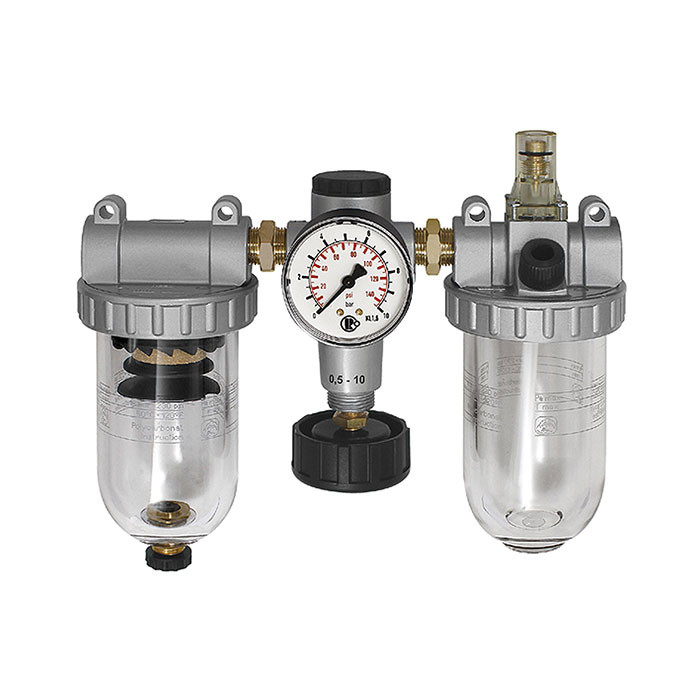

![[101064] RIEGLER Service unit 3-part »Standard« with PC container, Size 1, G 1/4](/web/image/product.template/140500/image_128/%5B101064%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%20with%20PC%20container%2C%20Size%201%2C%20G%201-4?unique=668143b)
|
Type number: 845 B |
86.39 € | |
![[101065] RIEGLER Service unit 3-part »Standard« with PC container, Size 1, G 3/8](/web/image/product.template/140501/image_128/%5B101065%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%20with%20PC%20container%2C%20Size%201%2C%20G%203-8?unique=d3b1aed)
|
Type number: 847 K |
86.39 € | |
![[101069] RIEGLER Service unit 3-part »Standard« with PC container, Size 3, G 1](/web/image/product.template/140505/image_128/%5B101069%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%20with%20PC%20container%2C%20Size%203%2C%20G%201?unique=b822706)
|
Type number: 850 E |
293.29 € | |
![[101067] RIEGLER Service unit 3-part »Standard« with PC container, Size 3, G 1/2](/web/image/product.template/140503/image_128/%5B101067%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%20with%20PC%20container%2C%20Size%203%2C%20G%201-2?unique=2a1eff6)
|
Type number: 850 C |
142.18 € | |
![[101068] RIEGLER Service unit 3-part »Standard« with PC container, Size 3, G 3/4](/web/image/product.template/140504/image_128/%5B101068%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%20with%20PC%20container%2C%20Size%203%2C%20G%203-4?unique=55b5bd0)
|
Type number: 850 D |
297.61 € | |

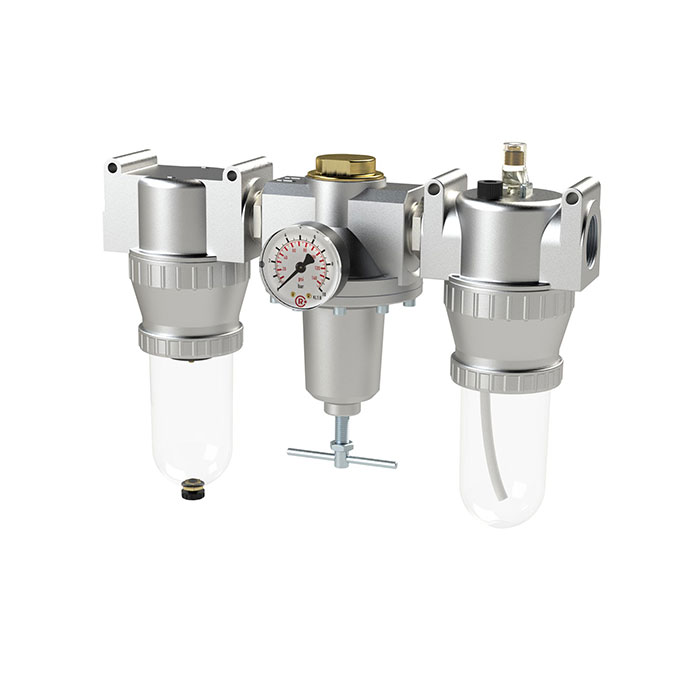

![[101071] RIEGLER Service unit 3-part »Standard« with PC container, Size 4, G 1 1/2](/web/image/product.template/140507/image_128/%5B101071%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%20with%20PC%20container%2C%20Size%204%2C%20G%201%201-2?unique=e9e13d9)
|
Type number: 850 H |
607.86 € | |
![[101070] RIEGLER Service unit 3-part »Standard« with PC container, Size 4, G 1 1/4](/web/image/product.template/140506/image_128/%5B101070%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%20with%20PC%20container%2C%20Size%204%2C%20G%201%201-4?unique=fc5e7be)
|
Type number: 850 F |
634.73 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=04b7896)
|
Type number: 32 |
34.57 € | |

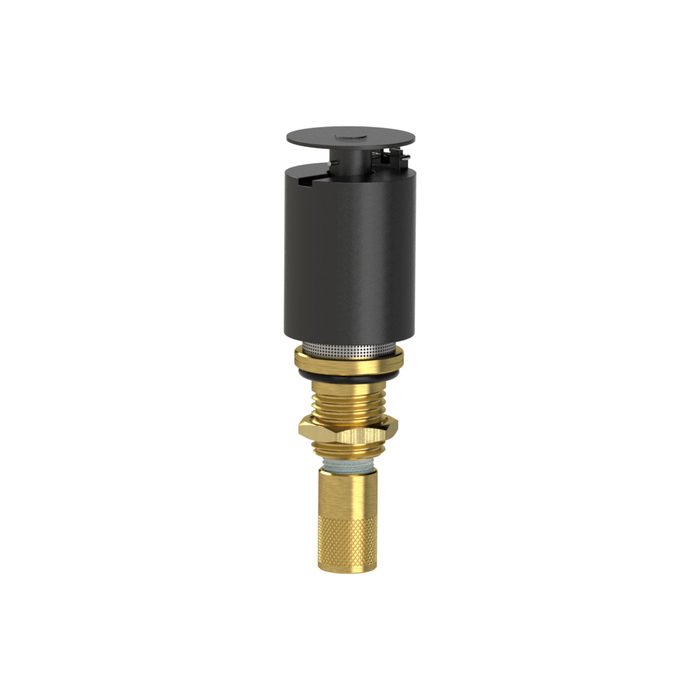

![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=a56678c)
|
Type number: 655.6.900 |
36.96 € | |

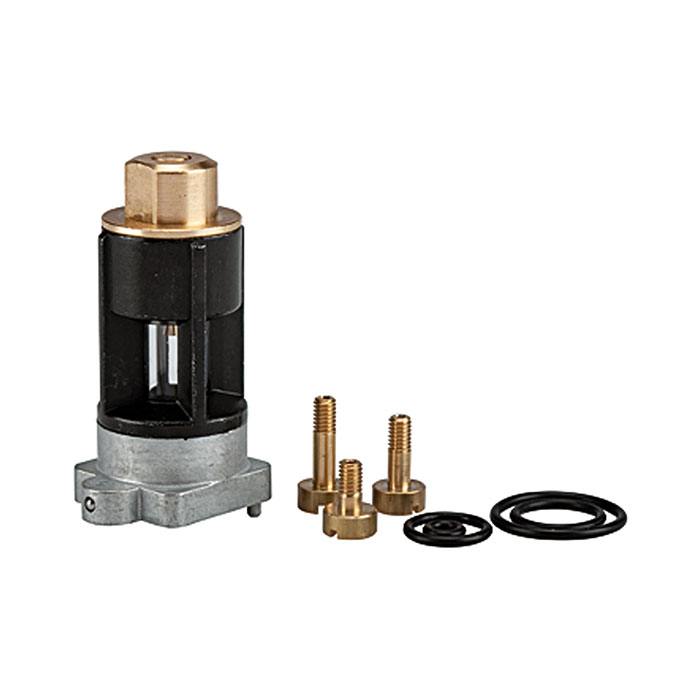

![[100795] RIEGLER Drip cap metal](/web/image/product.template/140231/image_128/%5B100795%5D%20RIEGLER%20Drip%20cap%20metal?unique=d4c6768)
|
Type number: 760.7.992 |
32.01 € | |
![[100796] RIEGLER Adapter for mounting metal drip cap](/web/image/product.template/140232/image_128/%5B100796%5D%20RIEGLER%20Adapter%20for%20mounting%20metal%20drip%20cap?unique=916516a)
|
Type number: 760.7.1135 |
11.09 € | |
![[100944] RIEGLER Protective cage, for series »Standard«, Size 2, G 3/8](/web/image/product.template/140380/image_128/%5B100944%5D%20RIEGLER%20Protective%20cage%2C%20for%20series%20%C2%BBStandard%C2%AB%2C%20Size%202%2C%20G%203-8?unique=938c831)
|
Type number: SK 02 |
20.56 € | |

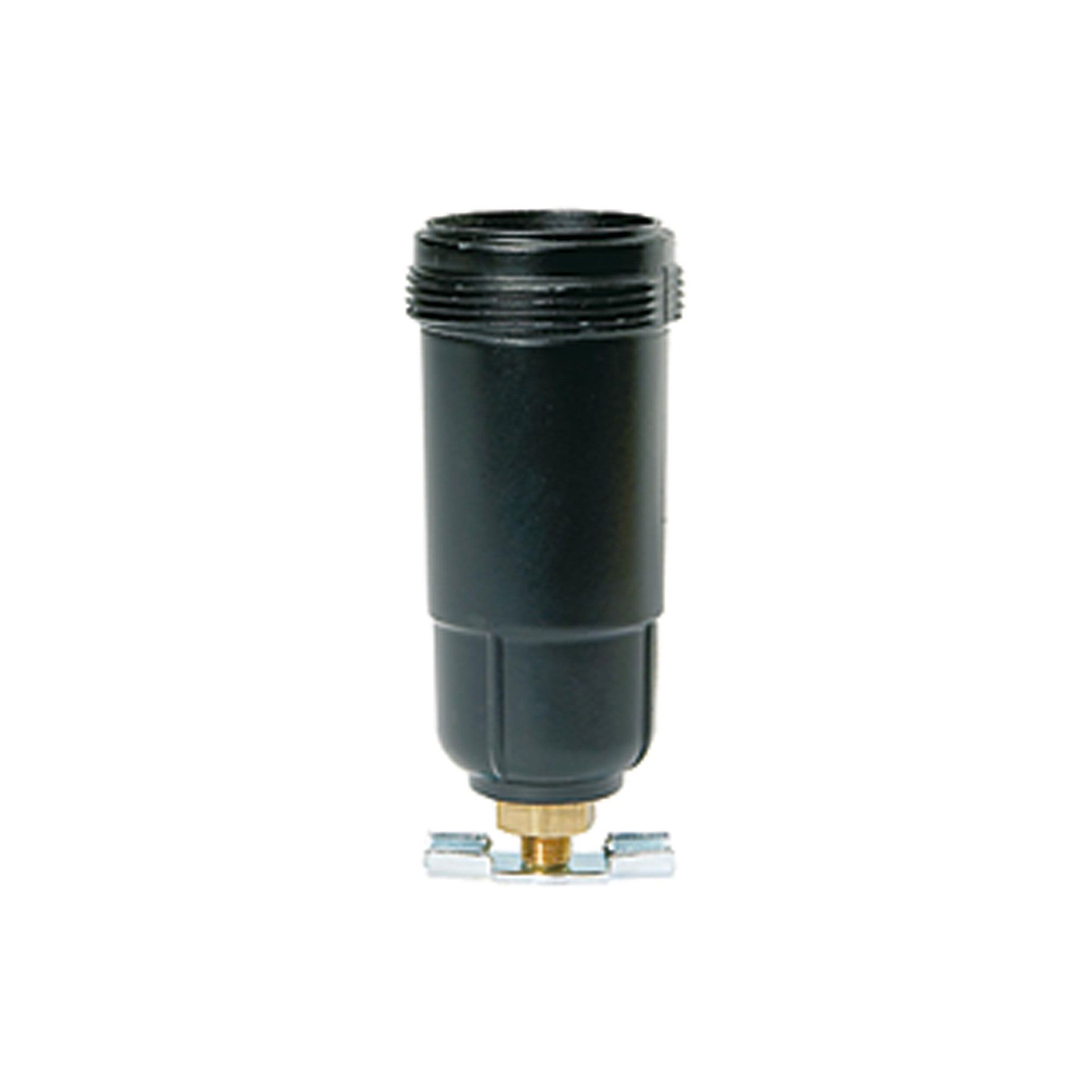

![[100947] RIEGLER Metal container, for filter regulator / filter »Standard«, Size 2](/web/image/product.template/140383/image_128/%5B100947%5D%20RIEGLER%20Metal%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=49cd24e)
|
Type number: 650/11 |
26.58 € | |

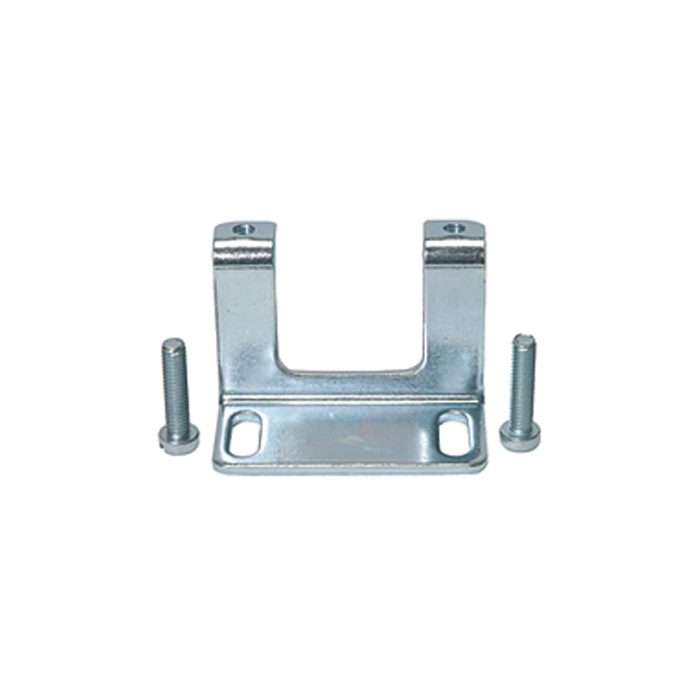

![[100982] RIEGLER Mounting bracket with 2 screws](/web/image/product.template/140418/image_128/%5B100982%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws?unique=1e3c64d)
|
Type number: H 801 |
4.83 € | |

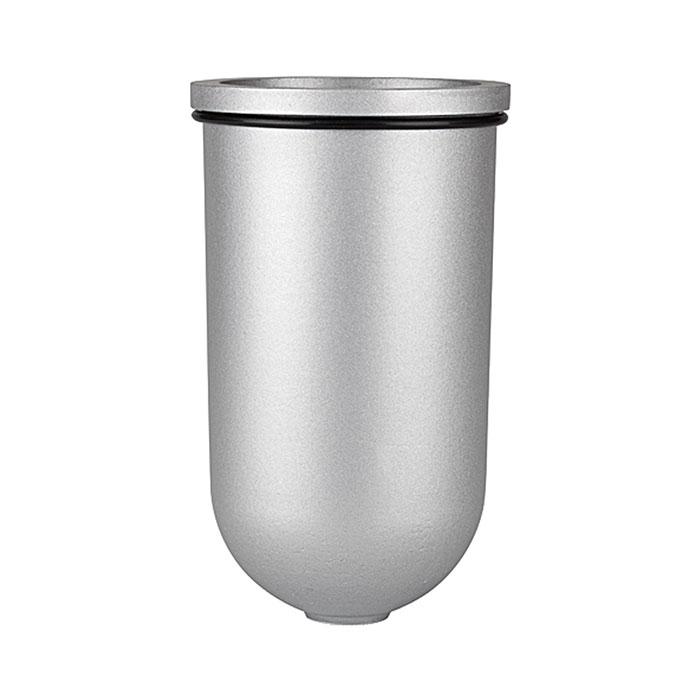

![[101041] RIEGLER Metal container, incl. O-ring, for mist oiler »Standard«, Size 2](/web/image/product.template/140477/image_128/%5B101041%5D%20RIEGLER%20Metal%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=7376486)
|
Type number: 740/13 |
21.38 € | |

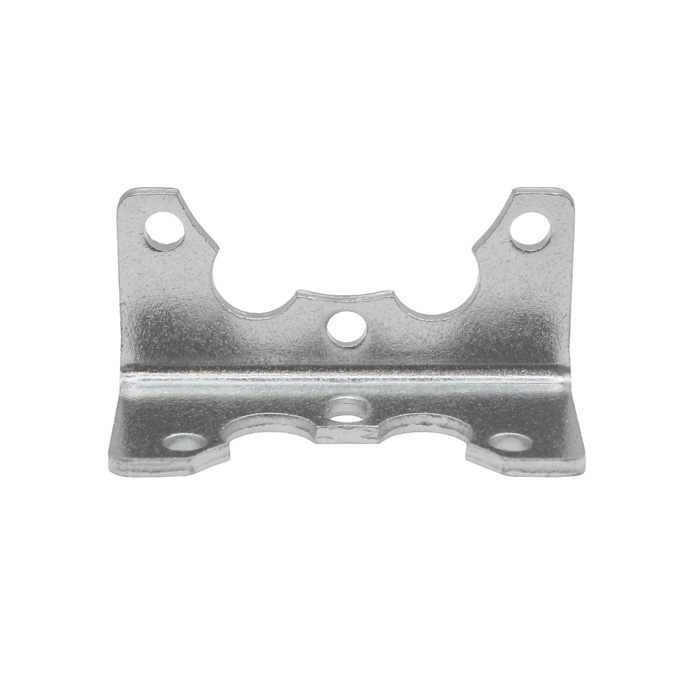

![[145770] RIEGLER Mounting kit, mounting bracket, for "Standard", BG 2, up to G 1/2](/web/image/product.template/279359/image_128/%5B145770%5D%20RIEGLER%20Mounting%20kit%2C%20mounting%20bracket%2C%20for%20%22Standard%22%2C%20BG%202%2C%20up%20to%20G%201-2?unique=e2768d6)
|
Type number: H 83 |
5.51 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101398] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169372/image_128/%5B101398%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=c2b0778)
|
Type number: 218-KD |
6.30 € | |

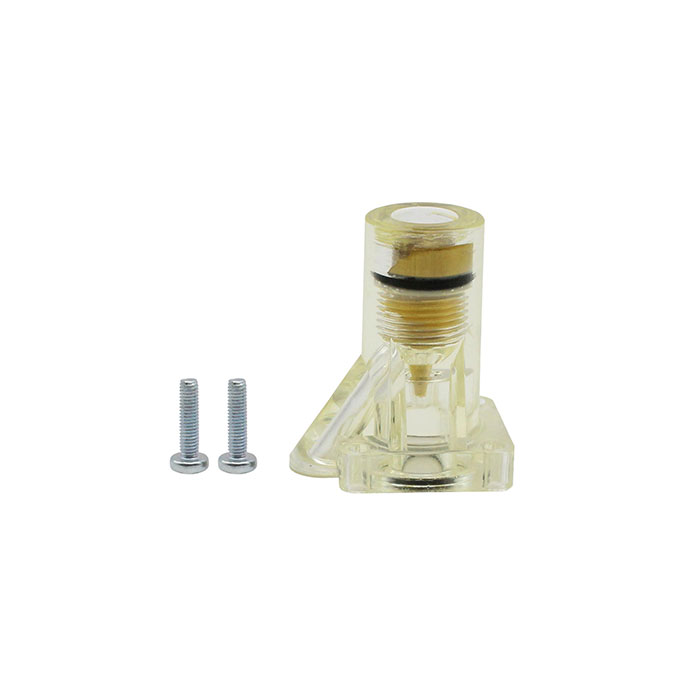

![[100794] RIEGLER Drip cap polycarbonate](/web/image/product.template/140230/image_128/%5B100794%5D%20RIEGLER%20Drip%20cap%20polycarbonate?unique=d4af64f)
|
Type number: 760.7.990 |
7.03 € | |
![[100507] RIEGLER Filter element 5 µm, Cellpor, for »multifix« and »Standard«](/web/image/product.template/139942/image_128/%5B100507%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20Cellpor%2C%20for%20%C2%BBmultifix%C2%AB%20and%20%C2%BBStandard%C2%AB?unique=2effc83)
|
Type number: 633.6.905 |
14.08 € | |

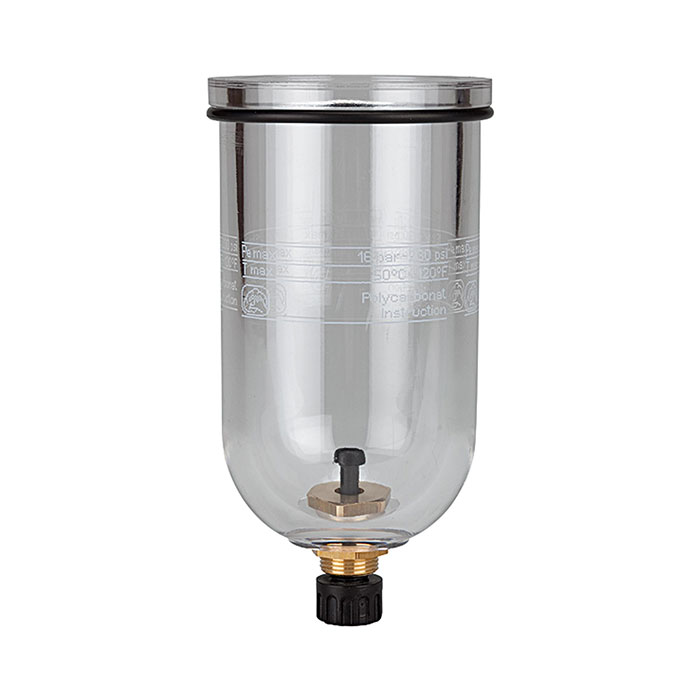

![[100946] RIEGLER PC container, for filter regulator / filter »Standard«, Size 2](/web/image/product.template/140382/image_128/%5B100946%5D%20RIEGLER%20PC%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=ecf18ea)
|
Type number: 650/1-HA |
18.75 € | |

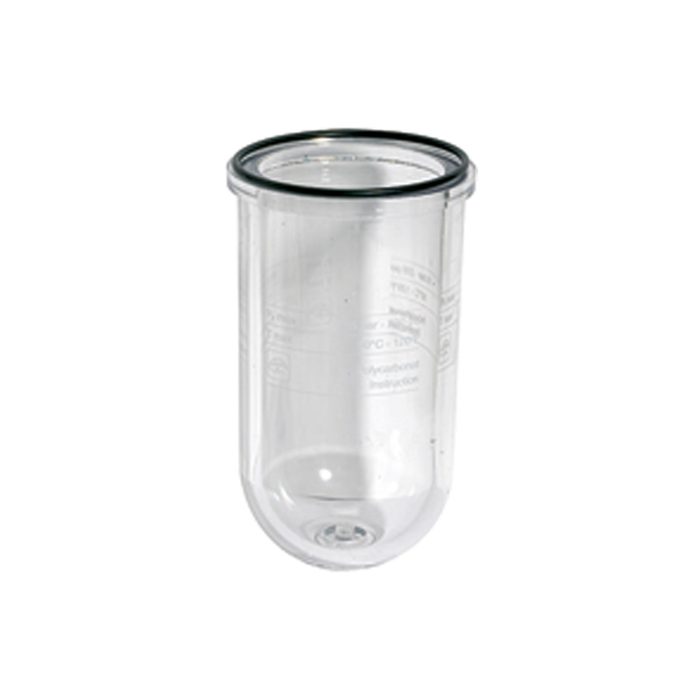

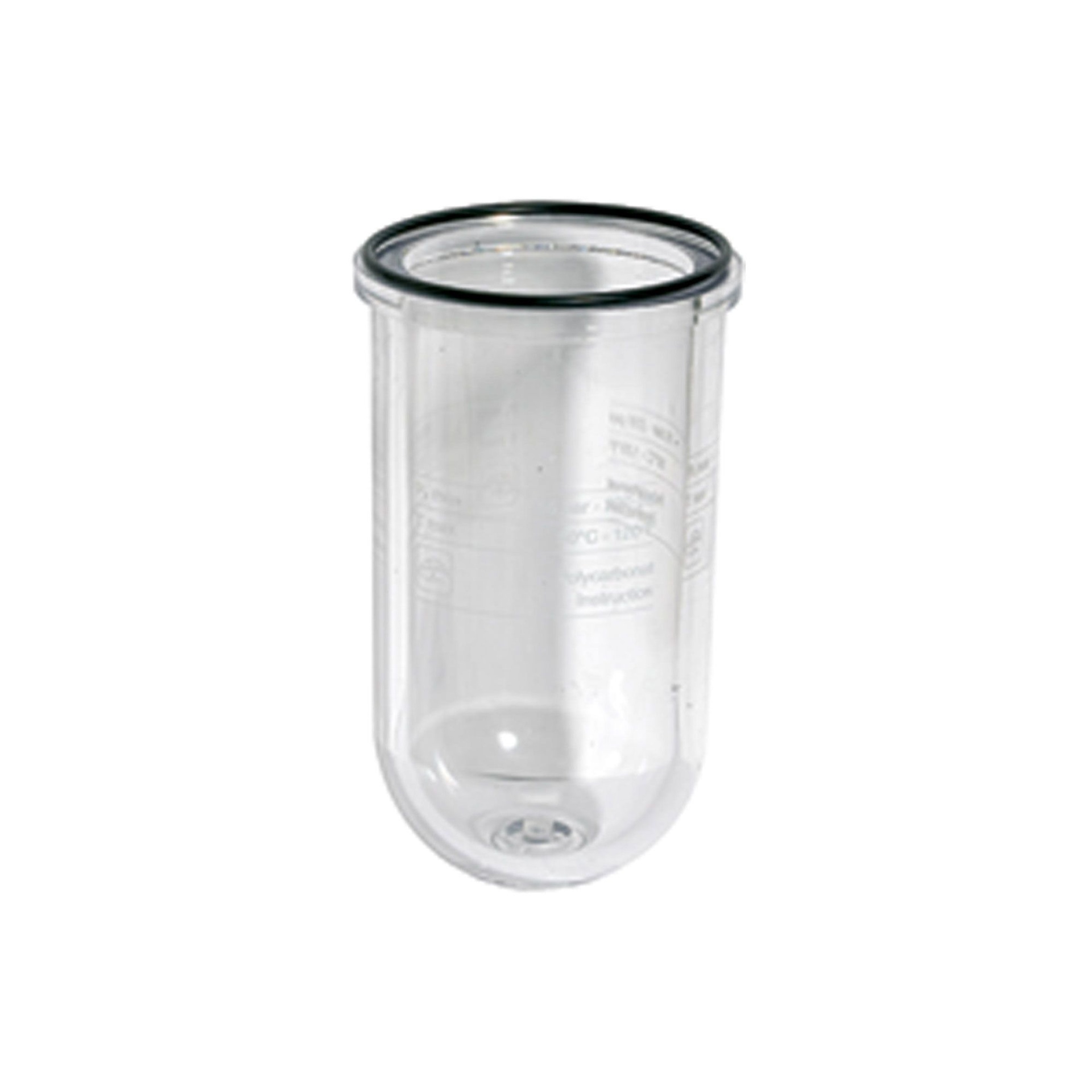

![[101042] RIEGLER PC container, incl. O-ring, for mist oiler »Standard«, Size 2](/web/image/product.template/140478/image_128/%5B101042%5D%20RIEGLER%20PC%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=01be5ee)
|
Type number: 740/03 |
11.82 € | |

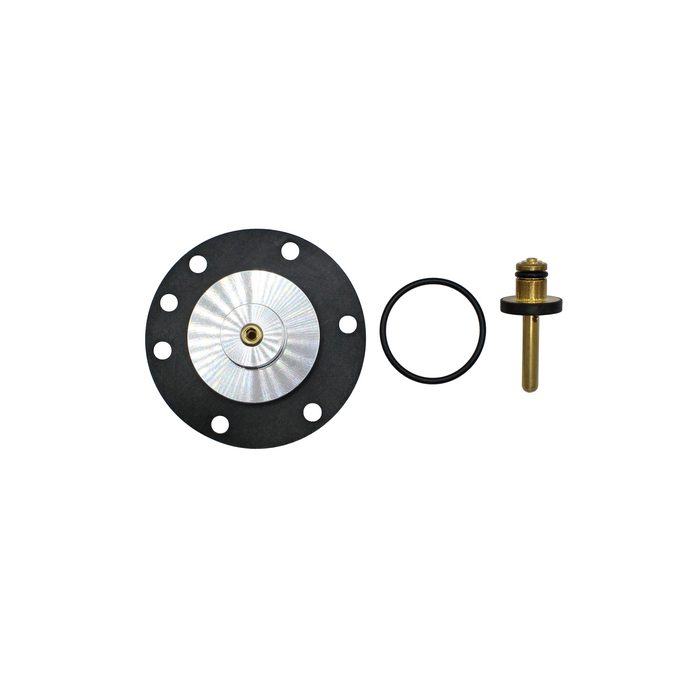

![[100837] RIEGLER Wear part set, for pressure regulator »Standard«, Size 2](/web/image/product.template/140273/image_128/%5B100837%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20pressure%20regulator%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=e00be4f)
|
