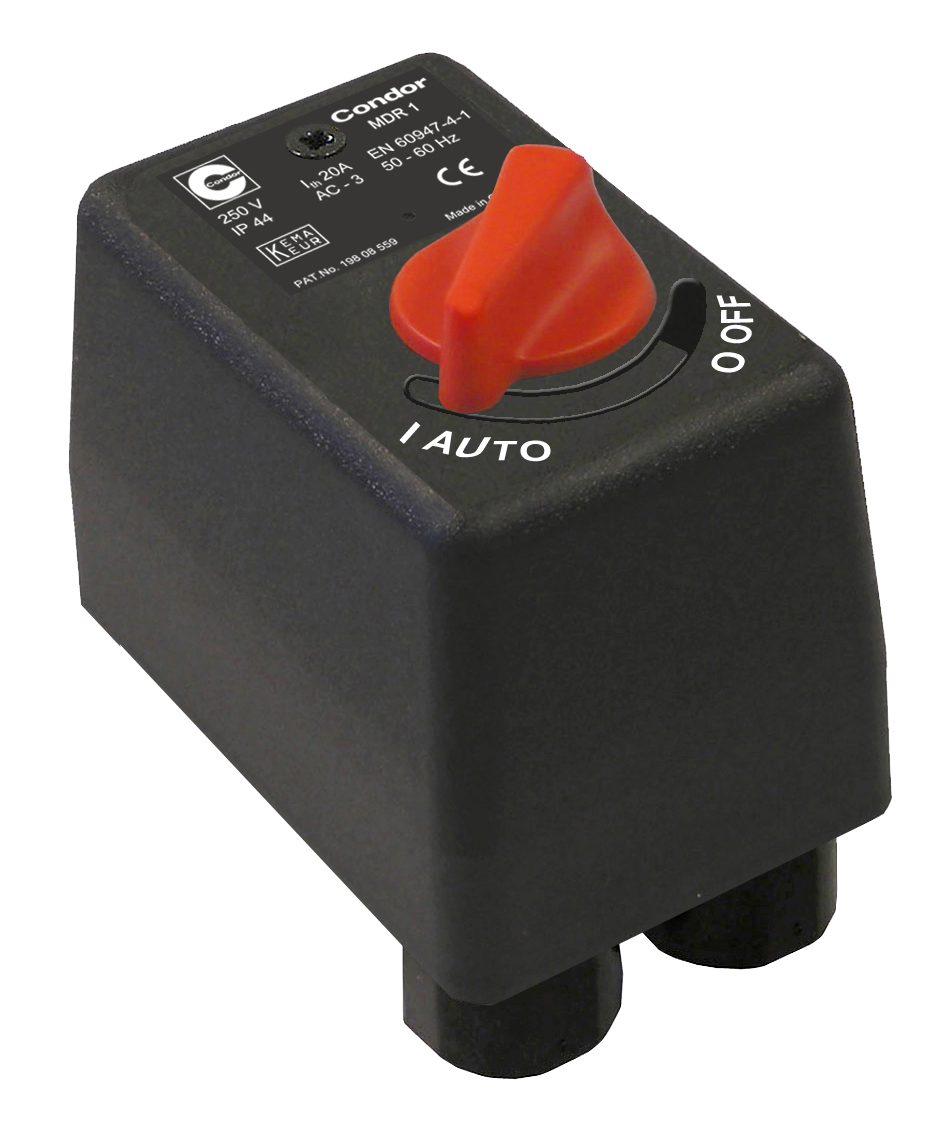

Condor Pressure Switch MDR 1/11 EA 2,5-11 bar G 1/4" Alu
Condor MDR 1/11 bar, voltage: alternating current 230 V
Application: compressed air / pressure switch compressor
Condor-Werke
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology.
Condor pressure switch for compressor MDR 1/11 bar EA 212133
AC version
Switching capacity 4.0 kW
Pressure range 2.5 - 11.00 bar
Incl. cable gland PG 11 Z/ZK
Incl. start-up relief valve AEV 1S
2-pole (NC contact)
In accordance with EN 60947
Differential pressure adjustment optional
Pressure switch type: GBA AAEA 060A080 QDE XXX see further information under Documents.
Required relief valves, cable glands for retrofitting see under "Accessories".
| Thread / connection | G 1/4" aluminum |
| Protection class | IP 44 |
| Motor switching capacity (kW) | 2.5 kW |
| Max. media temperature (°C) | 80°C |
| Current version | Alternating current |
| Type of construction | Electro-mechanical |
| Tension | ≤ 250 V |
| Contact function | 2-pole (normally closed contact) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 220 |
| Pressure range (bar) | 2,5-11 |
| Model range - Pressure switch | MDR 1 |
| On / Off switch button | Yes |
Product variants
| Product | Price | ||
|---|---|---|---|

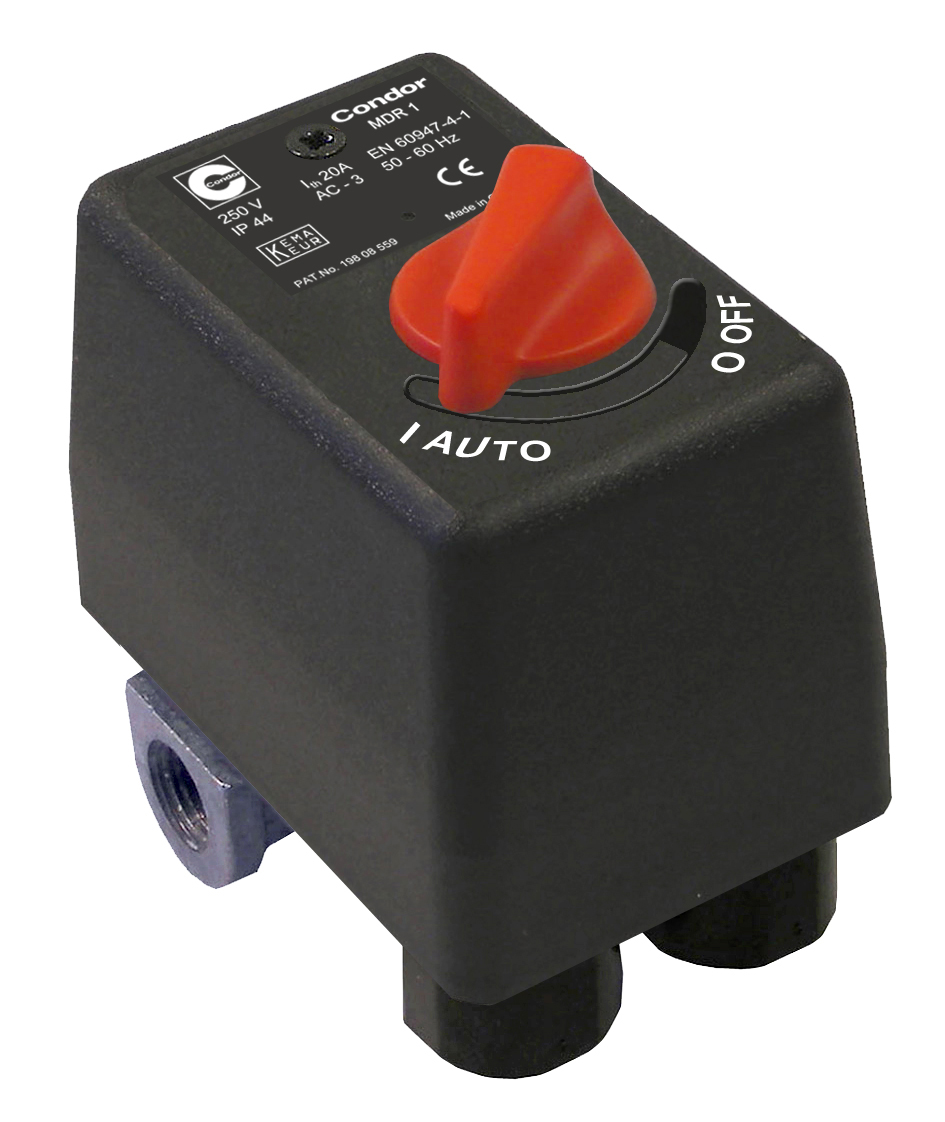

![[212140] Condor Pressure Switch MDR 1/11 EA 2,5-11 bar F4 1/4" Alu](/web/image/product.template/218199/image_128/%5B212140%5D%20Condor%20Pressure%20Switch%20MDR%201-11%20EA%202%2C5-11%20bar%20F4%201-4%22%20Alu?unique=8382e99)
|
Condor MDR 1/11 bar, voltage: alternating current 230 V |
108.92 € | |
![[212157] Condor Pressure Switch MDR 1/11 EA 2,5-11 bar F4 3/8" Alu](/web/image/product.template/217969/image_128/%5B212157%5D%20Condor%20Pressure%20Switch%20MDR%201-11%20EA%202%2C5-11%20bar%20F4%203-8%22%20Alu?unique=4932583)
|
Condor MDR 1/11 bar, voltage: alternating current 230 V |
108.92 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[200888] Condor Grommet WN for cable gland MDR 1, 2, 4 und 43](/web/image/product.template/95482/image_128/%5B200888%5D%20Condor%20Grommet%20WN%20for%20cable%20gland%20MDR%201%2C%202%2C%204%20und%2043?unique=4638de6)
|
Condor choke nipple for cable glands for pressure switches MDR 1, MDR 2, MDR 4 and MDR 43 |
5.24 € | |
![[217541] Condor Delayed unloader valve AEV 1S with quick-connect 6 mm for plastic unloader valves](/web/image/product.template/95511/image_128/%5B217541%5D%20Condor%20Delayed%20unloader%20valve%20AEV%201S%20with%20quick-connect%206%20mm%20for%20plastic%20unloader%20valves?unique=5a3d9f8)
|
Start-up relief valve AEV 1S for MDR 1 and MDR 11 pressure switches |
19.99 € | |
![[226765] Condor Unloader valve EV 1S with quick-connect 6 mm for plastic unloader valves](/web/image/product.template/95510/image_128/%5B226765%5D%20Condor%20Unloader%20valve%20EV%201S%20with%20quick-connect%206%20mm%20for%20plastic%20unloader%20valves?unique=9fb4297)
|
Relief valve EV 1S for Condor MDR 1 and MDR 11 pressure switches |
15.23 € | |
![[255024] Condor Conduits PG 11 G for mounting of cable glands (inner thread)](/web/image/product.template/95512/image_128/%5B255024%5D%20Condor%20Conduits%20PG%2011%20G%20for%20mounting%20of%20cable%20glands%20%28inner%20thread%29?unique=ece841f)
|
Threaded connector PG 11 G for mounting cable glands for MDR 1 pressure switch |
6.78 € | |
![[255031] Condor Cable gland PG 11 Z with strain relief](/web/image/product.template/95513/image_128/%5B255031%5D%20Condor%20Cable%20gland%20PG%2011%20Z%20with%20strain%20relief?unique=16968d7)
|
Cable gland PG 11 Z for MDR 1 pressure switch |
8.57 € | |
![[255048] Condor Cable gland PG 11 ZK with strain relief and cable support](/web/image/product.template/95514/image_128/%5B255048%5D%20Condor%20Cable%20gland%20PG%2011%20ZK%20with%20strain%20relief%20and%20cable%20support?unique=4638de6)
|
Cable gland PG 11 ZK for MDR 1 pressure switch |
9.64 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[227366] Condor Cover H1-EA with On/Off lever for manual On/Off (neutral version, without marking) for MDR 1+EA](/web/image/product.template/95516/image_128/%5B227366%5D%20Condor%20Cover%20H1-EA%20with%20On-Off%20lever%20for%20manual%20On-Off%20%28neutral%20version%2C%20without%20marking%29%20for%20MDR%201%2BEA?unique=417e905)
|
Cover H1-EA for MDR 1 Condor pressure switch |
20.11 € | |
