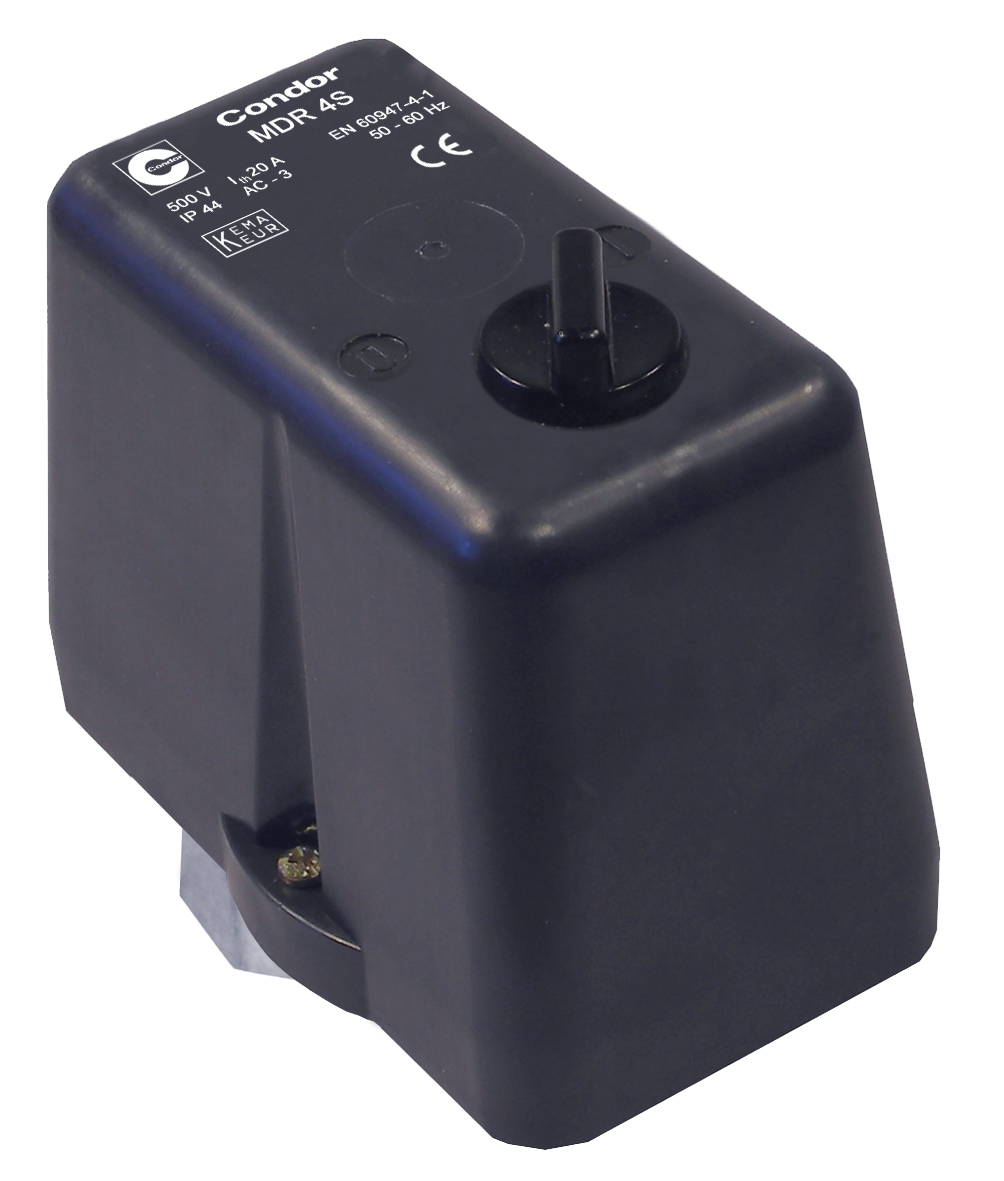

Condor Pressure Switch MDR 4 S/6 EA 1,5-6 bar G 1/4" Alu
Condor MDR 4 S/6 bar, voltage three-phase current 400 V
Compressed air / water: pressure switch compressor / pressure switch pump
Condor-Werke
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology.
Condor pressure switch MDR 4 S/6 bar EA 212584
Three-phase version
Switching capacity 5.5 kW
Pressure range 1.50 - 6.00 bar
3-pole (NC contact)
In accordance with EN 60947
Pressure switch type: DBA AFAA 040A060 XAA XXX see further information under Documents.
Required relief valves, cable glands for retrofitting see under "Accessories".
| Thread / connection | G 1/4" aluminum |
| Protection class | IP 44 |
| Motor switching capacity (kW) | 5.5 kW |
| Max. media temperature (°C) | 80°C |
| Current version | Three-phase current |
| Type of construction | Electro-mechanical |
| Tension | ≤ 400 V |
| Contact function | 3-pole (normally closed contact) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 420 |
| Pressure range (bar) | 1,5-6 |
| Model range - Pressure switch | MDR 4 S |
| On / Off switch button | Ja |
Product variants
| Product | Price | ||
|---|---|---|---|
![[257905] Condor Pressure Switch MDR 4 S/6 EA 1,5-6 bar F4 1/2“ Alu](/web/image/product.template/218141/image_128/%5B257905%5D%20Condor%20Pressure%20Switch%20MDR%204%20S-6%20EA%201%2C5-6%20bar%20F4%201-2%E2%80%9C%20Alu?unique=0a463e1)
|
Condor MDR 4 S/6 bar, voltage three-phase current 400 V |
95.80 € | |
![[257899] Condor Pressure Switch MDR 4 S/6 EA 1,5-6 bar F4 1/4“ Alu](/web/image/product.template/218140/image_128/%5B257899%5D%20Condor%20Pressure%20Switch%20MDR%204%20S-6%20EA%201%2C5-6%20bar%20F4%201-4%E2%80%9C%20Alu?unique=c3a51b7)
|
Condor MDR 4 S/6 bar, voltage three-phase current 400 V |
95.80 € | |
![[257912] Condor Pressure Switch MDR 4 S/6 EA 1,5-6 bar F4 3/8“ Alu](/web/image/product.template/218142/image_128/%5B257912%5D%20Condor%20Pressure%20Switch%20MDR%204%20S-6%20EA%201%2C5-6%20bar%20F4%203-8%E2%80%9C%20Alu?unique=66db349)
|
Condor MDR 4 S/6 bar, voltage three-phase current 400 V |
95.80 € | |
![[212591] Condor Pressure Switch MDR 4 S/6 EA 1,5-6 bar G 1/2" Alu](/web/image/product.template/217555/image_128/%5B212591%5D%20Condor%20Pressure%20Switch%20MDR%204%20S-6%20EA%201%2C5-6%20bar%20G%201-2%22%20Alu?unique=dcc564b)
|
Condor MDR 4 S/6 bar, voltage three-phase current 400 V |
77.14 € | |
![[212607] Condor Pressure Switch MDR 4 S/6 EA 1,5-6 bar G 1/2“ + G 1/4“ Alu](/web/image/product.template/218139/image_128/%5B212607%5D%20Condor%20Pressure%20Switch%20MDR%204%20S-6%20EA%201%2C5-6%20bar%20G%201-2%E2%80%9C%20%2B%20G%201-4%E2%80%9C%20Alu?unique=9b0fff4)
|
Condor MDR 4 S/6 bar, voltage three-phase current 400 V |
87.47 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[200888] Condor Grommet WN for cable gland MDR 1, 2, 4 und 43](/web/image/product.template/95482/image_128/%5B200888%5D%20Condor%20Grommet%20WN%20for%20cable%20gland%20MDR%201%2C%202%2C%204%20und%2043?unique=4638de6)
|
Condor choke nipple for cable glands for pressure switches MDR 1, MDR 2, MDR 4 and MDR 43 |
5.24 € | |
![[200895] Condor Conduits PG 11 G for mounting cable glands (inner thread)](/web/image/product.template/95472/image_128/%5B200895%5D%20Condor%20Conduits%20PG%2011%20G%20for%20mounting%20cable%20glands%20%28inner%20thread%29?unique=4638de6)
|
Condor threaded connector for Condor pressure switches MDR 2, MDR 4 and MDR 43 |
6.90 € | |
![[200901] Condor Cable gland PG 11 V complete](/web/image/product.template/95473/image_128/%5B200901%5D%20Condor%20Cable%20gland%20PG%2011%20V%20complete?unique=7678c97)
|
Condor cable gland complete for Condor pressure switch MDR 2, MDR 4 and MDR 43 |
8.33 € | |
![[200918] Condor Cable gland PG 11 ZK with strain relief and cable support](/web/image/product.template/95475/image_128/%5B200918%5D%20Condor%20Cable%20gland%20PG%2011%20ZK%20with%20strain%20relief%20and%20cable%20support?unique=139b99e)
|
Condor cable gland for Condor pressure switches MDR 2, MDR 4 and MDR 43 |
9.76 € | |
![[200925] Condor Cable gland PG 11 Z with strain relief](/web/image/product.template/95474/image_128/%5B200925%5D%20Condor%20Cable%20gland%20PG%2011%20Z%20with%20strain%20relief?unique=07043a8)
|
Condor cable gland for Condor pressure switches MDR 2, MDR 4 and MDR 43 |
8.81 € | |
![[200956] Condor Cable gland PG 13,5 Z with strain relief](/web/image/product.template/95478/image_128/%5B200956%5D%20Condor%20Cable%20gland%20PG%2013%2C5%20Z%20with%20strain%20relief?unique=6a21eb1)
|
Condor cable gland for Condor pressure switches MDR 2, MDR 4 and MDR 43 |
9.16 € | |
![[200963] Condor Conduits PG 13,5 G for mounting cable glands (inner thread)](/web/image/product.template/95476/image_128/%5B200963%5D%20Condor%20Conduits%20PG%2013%2C5%20G%20for%20mounting%20cable%20glands%20%28inner%20thread%29?unique=3210c6f)
|
Condor threaded connector for Condor pressure switches MDR 2, MDR 4 and MDR 43 |
7.02 € | |
![[201601] Condor Unloader valve EV 4 with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/217946/image_128/%5B201601%5D%20Condor%20Unloader%20valve%20EV%204%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=9fb4297)
|
Relief valve EV 4 for Condor MDR 4 pressure switch |
17.14 € | |
![[201625] Condor Unloader valve EV 4S with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/151649/image_128/%5B201625%5D%20Condor%20Unloader%20valve%20EV%204S%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=9fb4297)
|
EV 4S relief valve for Condor MDR 4 pressure switch |
17.14 € | |
![[201656] Condor Plastic unloader valve (90°) EV 4WS with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/151650/image_128/%5B201656%5D%20Condor%20Plastic%20unloader%20valve%20%2890%C2%B0%29%20EV%204WS%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=9fb4297)
|
Relief valve EV 4WS for Condor MDR 4 pressure switch |
24.18 € | |
![[201663] Condor Delayed unloader valve AEV 4 with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/151651/image_128/%5B201663%5D%20Condor%20Delayed%20unloader%20valve%20AEV%204%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=359f299)
|
Start-up relief valve AEV 4 for Condor MDR 4 pressure switch |
22.94 € | |
![[201687] Condor Delayed unloader valve (90°) AEV 4S with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/151652/image_128/%5B201687%5D%20Condor%20Delayed%20unloader%20valve%20%2890%C2%B0%29%20AEV%204S%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=773360a)
|
Start-up relief valve AEV 4S for Condor MDR 4 pressure switch |
22.94 € | |
![[201694] Condor Delayed unloader valve (90°) AEV 4-W with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/217948/image_128/%5B201694%5D%20Condor%20Delayed%20unloader%20valve%20%2890%C2%B0%29%20AEV%204-W%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=e46d50e)
|
Start-up relief valve AEV 4W for Condor MDR 4 pressure switch |
30.18 € | |
![[255055] Condor Plastic unloader valve (90°) EV 4W with screw connection for 6 mm plastic or discharge copper tube](/web/image/product.template/151662/image_128/%5B255055%5D%20Condor%20Plastic%20unloader%20valve%20%2890%C2%B0%29%20EV%204W%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20discharge%20copper%20tube?unique=e46d50e)
|
Relief valve EV 4W for Condor MDR 4 pressure switch |
30.23 € | |
![[255062] Condor Plastic unloader valve (90°) EV 2Wi with screw connection for 1/4" plastic or discharge copper tube](/web/image/product.template/217947/image_128/%5B255062%5D%20Condor%20Plastic%20unloader%20valve%20%2890%C2%B0%29%20EV%202Wi%20with%20screw%20connection%20for%201-4%22%20plastic%20or%20discharge%20copper%20tube?unique=0157baf)
|
Relief valve EV 4Wi for Condor MDR 4 pressure switch |
30.23 € | |
![[255079] Condor Delayed unloader valve (90°) AEV 4-Wi with screw connection for 1/4" plastic or copper discharge tube](/web/image/product.template/151663/image_128/%5B255079%5D%20Condor%20Delayed%20unloader%20valve%20%2890%C2%B0%29%20AEV%204-Wi%20with%20screw%20connection%20for%201-4%22%20plastic%20or%20copper%20discharge%20tube?unique=4638de6)
|
Start-up relief valve AEV 4Wi for Condor MDR 4 pressure switch |
30.18 € | |
![[255086] Condor Delayed unloader valve (90°) AEV 4-WS with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/217949/image_128/%5B255086%5D%20Condor%20Delayed%20unloader%20valve%20%2890%C2%B0%29%20AEV%204-WS%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=e46d50e)
|
Start-up relief valve AEV 4WS for Condor MDR 4 pressure switch |
30.18 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[229476] Condor Cover H4 S-EA for MDR 4 S+EA with rotary knob for manual On/Off (Neutral version, without marking)](/web/image/product.template/151654/image_128/%5B229476%5D%20Condor%20Cover%20H4%20S-EA%20for%20MDR%204%20S%2BEA%20with%20rotary%20knob%20for%20manual%20On-Off%20%28Neutral%20version%2C%20without%20marking%29?unique=4a2cd86)
|
H4 S hood with on/off switch for Condor MDR 4 S pressure switch |
17.85 € | |
