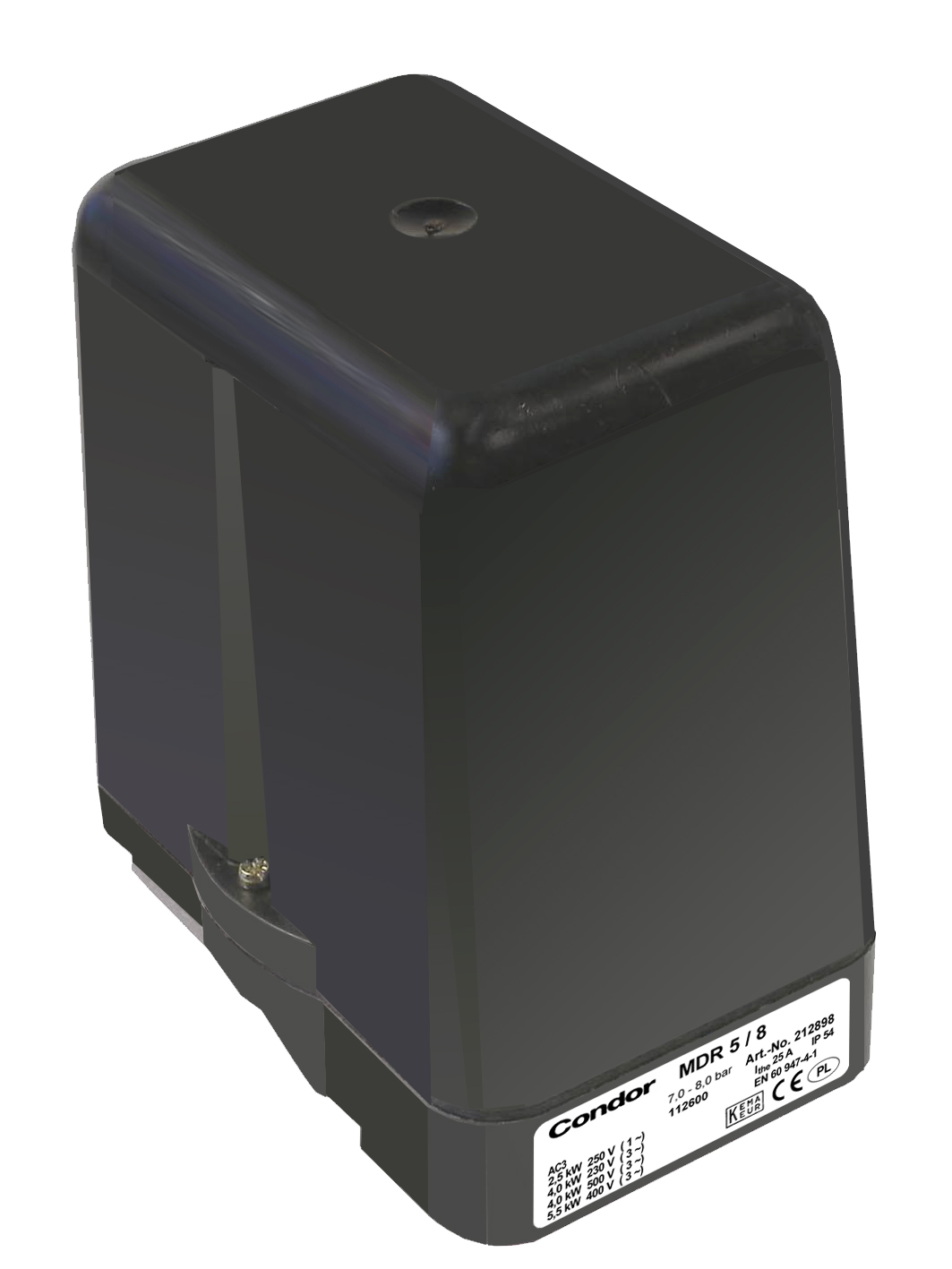

Condor Pressure Switch MDR 5/8 2-8 bar G 1/2" Alu
Condor MDR 5/8 bar, voltage three-phase current 400 V
Compressed air / water: pressure switch compressor / pressure switch pump
Condor-Werke
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology.
Condor Druckschalter MDR 5/8 bar 212898
Drehstromausführung
Schaltvermögen 5,5
Druckbereich 2,00 - 8,00 bar
3-polig (Öffner)
nach EN 60947
Technische Änderungen des Herstellers vorbehalten!
Druckschaltertyp: EAA BAAA 070A080 XXX XXX siehe weitere Informationen unter Dokumente.
Erforderliche Entlastungsventile, Kabelverschraubungen, Hauben für die nachträgliche Montage siehe unter "Zubehör".
| Thread / connection | G 1/2" aluminum |
| Protection class | IP 54 |
| Motor switching capacity (kW) | 5.5 kW |
| Max. media temperature (°C) | 80°C |
| Current version | Three-phase current |
| Type of construction | Electro-mechanical |
| Tension | ≤ 400 V |
| Contact function | 3-pole (normally closed contact) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 820 |
| Pressure range (bar) | 2-8 |
| Model range - Pressure switch | MDR 5 |
| On / Off switch button | Nein |
Product variants
| Product | Price | ||
|---|---|---|---|
![[212911] Condor Pressure Switch MDR 5/8 2-8 bar 1/2" + 1/4" Alu](/web/image/product.template/217571/image_128/%5B212911%5D%20Condor%20Pressure%20Switch%20MDR%205-8%202-8%20bar%201-2%22%20%2B%201-4%22%20Alu?unique=dcc564b)
|
Condor MDR 5/8 bar, voltage three-phase current 400 V |
103.21 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[201878] Condor Unloader valve EV 5 with screw connection for 6 mm plastic or copper discharge tube, screw connection for vent port](/web/image/product.template/95973/image_128/%5B201878%5D%20Condor%20Unloader%20valve%20EV%205%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube%2C%20screw%20connection%20for%20vent%20port?unique=9fb4297)
|
Relief valve EV 5 for Condor MDR 5 pressure switch |
33.42 € | |
![[201885] Condor Unloader valve EV 5i with screw connection for 1/4" plastic or copper discharge tube](/web/image/product.template/95974/image_128/%5B201885%5D%20Condor%20Unloader%20valve%20EV%205i%20with%20screw%20connection%20for%201-4%22%20plastic%20or%20copper%20discharge%20tube?unique=9fb4297)
|
[201885] Condor Unloader valve EV 5i with screw connection for 1/4" plastic or copper discharge tube
Relief valve EV 5i for Condor MDR 5 pressure switch |
33.42 € | |
![[201892] Condor Unloader valve EV 5E with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/95975/image_128/%5B201892%5D%20Condor%20Unloader%20valve%20EV%205E%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=9fb4297)
|
[201892] Condor Unloader valve EV 5E with screw connection for 6 mm plastic or copper discharge tube
Relief valve EV 5E for Condor MDR 5 pressure switch |
24.94 € | |
![[201908] Condor Unloader valve EV 5Ei with screw connection for 1/4" plastic or copper discharge tube](/web/image/product.template/95976/image_128/%5B201908%5D%20Condor%20Unloader%20valve%20EV%205Ei%20with%20screw%20connection%20for%201-4%22%20plastic%20or%20copper%20discharge%20tube?unique=4638de6)
|
Relief valve EV 5Ei for Condor MDR 5 pressure switch |
24.94 € | |
![[201939] Condor Delayed unloader valve AEV 5 with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/95978/image_128/%5B201939%5D%20Condor%20Delayed%20unloader%20valve%20AEV%205%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=c4f6a73)
|
Start-up relief valve AEV 5 for Condor MDR 5 pressure switch |
39.79 € | |
![[201946] Condor Delayed unloader valve AEV 5i with screw connection for 1/4" plastic or copper discharge tube](/web/image/product.template/95979/image_128/%5B201946%5D%20Condor%20Delayed%20unloader%20valve%20AEV%205i%20with%20screw%20connection%20for%201-4%22%20plastic%20or%20copper%20discharge%20tube?unique=c94da43)
|
Start-up relief valve AEV 5i for Condor MDR 5 pressure switch |
39.79 € | |
![[202028] Condor Thermal, 3-pole overload relay R5 0,86 - 1,50 A](/web/image/product.template/226368/image_128/%5B202028%5D%20Condor%20Thermal%2C%203-pole%20overload%20relay%20R5%200%2C86%20-%201%2C50%20A?unique=4638de6)
|
Overcurrent relay / motor protection relay R 5 / 1.5 for Condor MDR 5 pressure switch |
63.50 € | |
![[202035] Condor Thermal, 3-pole overload relay R5 1,50 - 2,45 A](/web/image/product.template/226369/image_128/%5B202035%5D%20Condor%20Thermal%2C%203-pole%20overload%20relay%20R5%201%2C50%20-%202%2C45%20A?unique=6e8499b)
|
Overcurrent relay / motor protection relay R 5 / 2.45 for Condor MDR 5 pressure switch |
63.50 € | |
![[202042] Condor Thermal, 3-pole overload relay R5 2,40 - 4,20 A](/web/image/product.template/226371/image_128/%5B202042%5D%20Condor%20Thermal%2C%203-pole%20overload%20relay%20R5%202%2C40%20-%204%2C20%20A?unique=9fb4297)
|
Overcurrent relay / motor protection relay R 5 / 4.2 for Condor MDR 5 pressure switch |
63.50 € | |
![[202059] Condor Thermal, 3-pole overload relay R5 4,00 - 7,00 A](/web/image/product.template/226372/image_128/%5B202059%5D%20Condor%20Thermal%2C%203-pole%20overload%20relay%20R5%204%2C00%20-%207%2C00%20A?unique=9fb4297)
|
Overcurrent relay / motor protection relay R 5 / 7.0 for Condor MDR 5 pressure switch |
63.50 € | |
![[202066] Condor Thermal, 3-pole overload relay R5 6,10 - 10,3 A](/web/image/product.template/226373/image_128/%5B202066%5D%20Condor%20Thermal%2C%203-pole%20overload%20relay%20R5%206%2C10%20-%2010%2C3%20A?unique=9fb4297)
|
Overcurrent relay / motor protection relay R 5 / 10.3 for Condor MDR 5 pressure switch |
66.07 € | |
![[202073] Condor Thermal, 3-pole overload relay R5 9,00 - 14,0 A](/web/image/product.template/226374/image_128/%5B202073%5D%20Condor%20Thermal%2C%203-pole%20overload%20relay%20R5%209%2C00%20-%2014%2C0%20A?unique=9fb4297)
|
Overcurrent relay / motor protection relay R 5 / 14.0 for Condor MDR 5 pressure switch |
82.73 € | |
![[202080] Condor Thermal, 3-pole overload relay R5 11,0 - 18,0 A](/web/image/product.template/226375/image_128/%5B202080%5D%20Condor%20Thermal%2C%203-pole%20overload%20relay%20R5%2011%2C0%20-%2018%2C0%20A?unique=9fb4297)
|
Overcurrent relay / motor protection relay R 5 / 18.0 for Condor MDR 5 pressure switch |
82.73 € | |
![[230045] Condor Mounting bracket](/web/image/product.template/95986/image_128/%5B230045%5D%20Condor%20Mounting%20bracket?unique=9fb4297)
|
Condor mounting bracket for Condor pressure switch MDR 5 and MDR 53 |
14.16 € | |
![[269496] Condor Grommet WN M20 for cable gland MDR 5](/web/image/product.template/95980/image_128/%5B269496%5D%20Condor%20Grommet%20WN%20M20%20for%20cable%20gland%20MDR%205?unique=9fb4297)
|
Condor choke nipple for Condor cable glands for Condor pressure switches MDR 5 and MDR 53 |
5.24 € | |
![[269502] Condor Screw plug M20](/web/image/product.template/95981/image_128/%5B269502%5D%20Condor%20Screw%20plug%20M20?unique=4638de6)
|
Condor screw plug M 20 for Condor pressure switch MDR 5 and MDR 53 |
2.86 € | |
![[269519] Condor Cable gland M20 L with strain relief, clamping range 10-14 mm](/web/image/product.template/95984/image_128/%5B269519%5D%20Condor%20Cable%20gland%20M20%20L%20with%20strain%20relief%2C%20clamping%20range%2010-14%20mm?unique=9fb4297)
|
Condor cable gland for Condor pressure switch MDR 5 and MDR 53 |
12.50 € | |
![[269526] Condor Cable gland M20 LK with strain relief and cable support, clamping range 10-14 mm](/web/image/product.template/95985/image_128/%5B269526%5D%20Condor%20Cable%20gland%20M20%20LK%20with%20strain%20relief%20and%20cable%20support%2C%20clamping%20range%2010-14%20mm?unique=9fb4297)
|
Condor cable gland for Condor pressure switch MDR 5 and MDR 53 |
12.85 € | |
![[269533] Condor Cable gland M20 Z with strain relief, clamping range 6-12 mm](/web/image/product.template/95982/image_128/%5B269533%5D%20Condor%20Cable%20gland%20M20%20Z%20with%20strain%20relief%2C%20clamping%20range%206-12%20mm?unique=9fb4297)
|
Condor cable gland for Condor pressure switch MDR 5 and MDR 53 |
12.50 € | |
![[269540] Condor Cable gland M20 ZK with strain relief and cable support, clamping range 6-12 mm](/web/image/product.template/95983/image_128/%5B269540%5D%20Condor%20Cable%20gland%20M20%20ZK%20with%20strain%20relief%20and%20cable%20support%2C%20clamping%20range%206-12%20mm?unique=4638de6)
|
Condor cable gland for Condor pressure switch MDR 5 and MDR 53 |
12.85 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[230052] Condor Cover H5 without On/Off push buttons for MDR 5](/web/image/product.template/95987/image_128/%5B230052%5D%20Condor%20Cover%20H5%20without%20On-Off%20push%20buttons%20for%20MDR%205?unique=e6d34e3)
|
Condor cover for Condor control pressure switch MDR 5 and MDR 53 |
18.56 € | |
