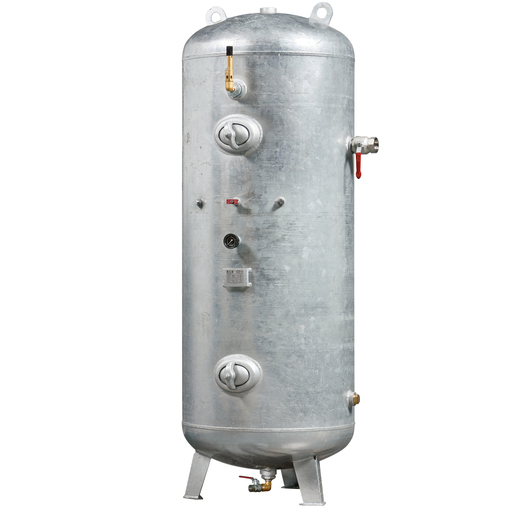

KAESER Compressed air tank 3000/16 st. CE/PED
Vertical version, maximum permissible overpressure 16 bar
Note (illustration):
The tank is supplied without fitting set / pressure gauge set.
We recommend ordering this as well!
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
KAESER compressed air tanks
Compressed air tank - upright version
Rely on KAESER air reservoirs for economy and safety. In addition to their high-quality workmanship, they are characterized by excellent corrosion protection. Plastic protective caps on all connection nozzles ensure optimum protection during transportation to the customer. Thanks to large maintenance openings, cleaning, maintenance and tank inspections are effortless and uncomplicated.
Inspection intervals of up to five years
Optimum corrosion protection (hot-dip galvanized)
Excellent corrosion protection
Easily accessible and generously dimensioned maintenance openings
Note:
The tank is supplied without fitting set and pressure gauge set.
We recommend ordering these at the same time - see under accessories
| Design | standing |
| Volume of compressed air tank (litres) | 3.000 |
| Max. Overpressure (bar) | 16 |
| Diameter (mm) | 1.250 |
| Container height (mm) | 2.785 |
| Weight (kg) | 850 |
| Compressed air inlet connection | 2x G 2½" |
| Compressed air outlet connection | 2x G 2½" |
| Safety valve connection | G 1" |
| Manometer set connection | G ½" |
| Condensate drain connection | G 2½" |
| Container acceptance | DIRECTIVE 2014/68/EU |
| Maintenance opening according to AD2000 | 2x hand hole |
| Min. operating temperature (°C) | -10 |
| Max. Operating temperature (°C) | +50 |
| Surface coating | galvanized |
Product variants
| Product | Price | ||
|---|---|---|---|

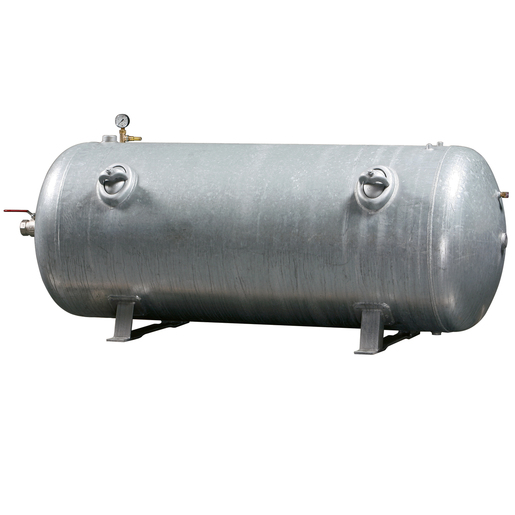

![[3.5285.20030] KAESER Compressed air tank 3000/16 lg. CE/PED](/web/image/product.template/102328/image_128/%5B3.5285.20030%5D%20KAESER%20Compressed%20air%20tank%203000-16%20lg.%20CE-PED?unique=ef71e09)
|
Horizontal design, maximum permissible overpressure 16 bar Note (illustration): |
9,243.33 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

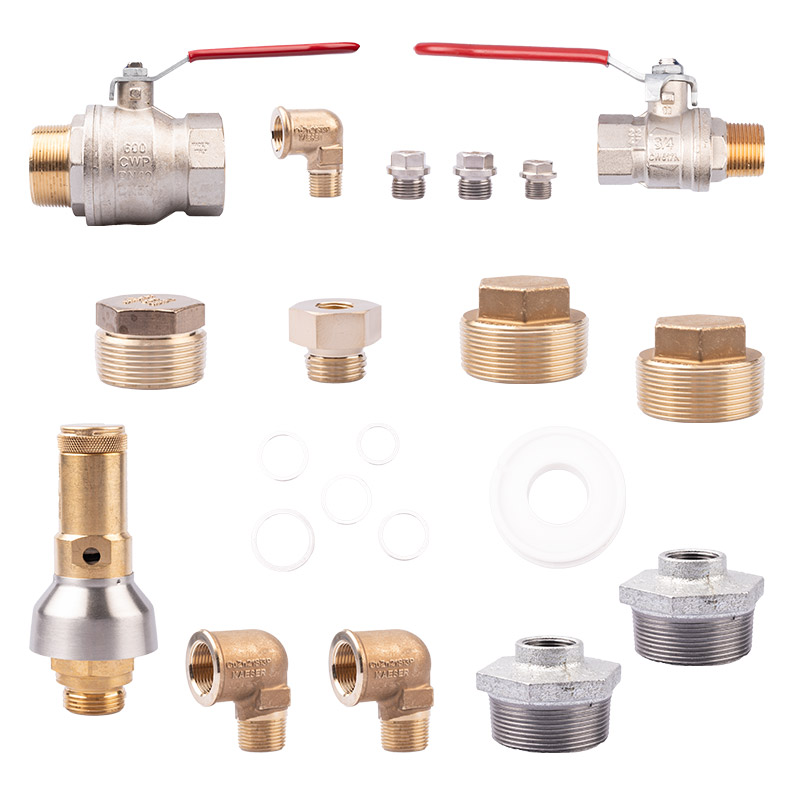

![[8.4416.2] KAESER fitting set for air receiver 3000/16 vertical version](/web/image/product.template/236576/image_128/%5B8.4416.2%5D%20KAESER%20fitting%20set%20for%20air%20receiver%203000-16%20vertical%20version?unique=ef71e09)
|
Note image: Image similar |
1,040.06 € | |
![[8.4509.0] KAESER ECO-DRAIN 13 steam trap set for DLB ST 3000l/4000l/11bar/16bar](/web/image/product.template/236643/image_128/%5B8.4509.0%5D%20KAESER%20ECO-DRAIN%2013%20steam%20trap%20set%20for%20DLB%20ST%203000l-4000l-11bar-16bar?unique=ef71e09)
|
KAESER's ECO-DRAIN electronic condensate drains reliably drain condensate from cyclones, compressed air receivers and refrigeration dryers without any loss of pressure. |
957.95 € | |
