Wortmann Oil-water-seperators model drukosep 1
Drukosep 1 oil water separator, new unit incl. a filter set.
Up to 1.8 m³/min compressor capacity.
Professional condensate treatment with an oil separator / water separator to protect the compressed air system or compressor. The Wortmann oil-water separator reliably separates oily condensate and ensures oil-free compressed air.
Wortmann
For over 35 years, Wortmann has been providing practical system solutions for compressed air treatment.

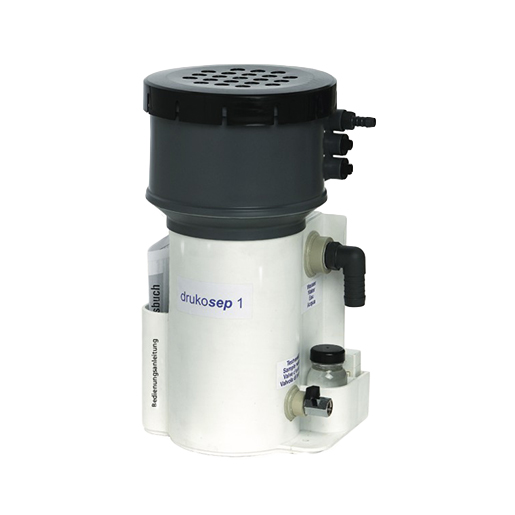

Wortmann Drukosep 1 oil water separator 3201, incl. a filter set.
The Drukosep 1 reliably de-oils the condensate produced through a combination of deflection and calming chamber, as well as a series connection of coalescence and activated carbon filter directly at the point of origin.
The treated condensate can be discharged directly into the sewer system as purified water.
For further technical data, see "Downloads" below.
| Max. Compressor capacity (m³/min) | 1,8 |
| Height (mm) | 445 |
| Width (mm) | 240 |
| Depth (mm) | 240 |
| Condensate inlet connection | 3x 1/2" |
| Water drain connection | 1" |
| Filtration Filter set: Water+exhaust air | sep1W/L |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

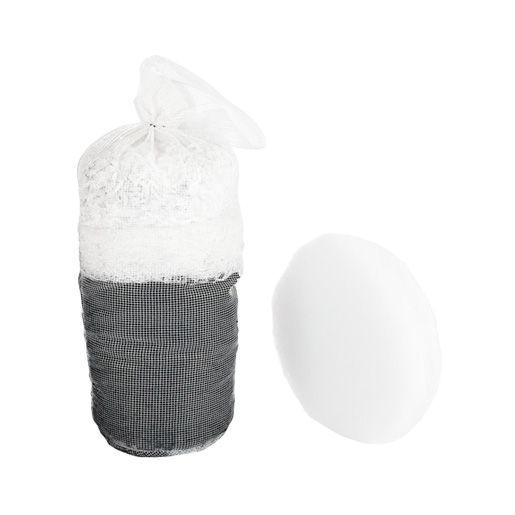

![[WO-SEP1W/L] Wortmann Replacement filterset W/L for drukosep 1](/web/image/product.template/121808/image_128/%5BWO-SEP1W-L%5D%20Wortmann%20Replacement%20filterset%20W-L%20for%20drukosep%201%20?unique=b300f0f)
|
116.62 € | ||
