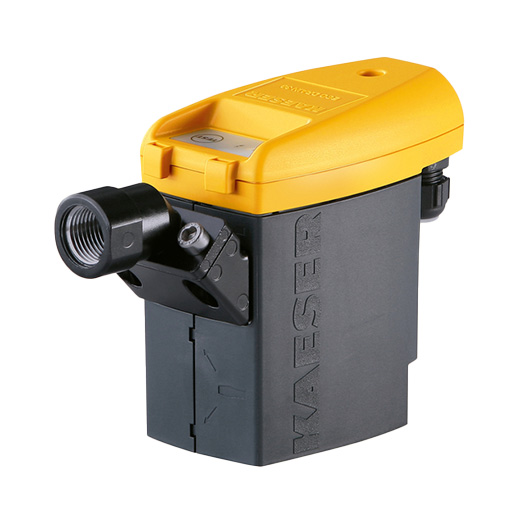

KAESER Steam trap model ECO-DRAIN 30 95-240VAC
The ECO-DRAIN electronic condensate drains from KAESER reliably drain condensate from cyclones, compressed air tanks and refrigeration dryers without any loss of pressure.
Article no.: 8.2578.1 has been replaced by article no. : 8.2578.2
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Thanks to a condensate volume-dependent control concept and a dirt-resistant valve mechanism, the ECO-DRAIN electronic condensate drains from KAESER are particularly economical and reliable.
Compressed air losses excluded
Condensate drains remove the condensate separated in cyclones, compressed air tanks, refrigeration dryers and filters from the compressed air network. They are therefore indispensable for efficient compressed air treatment and a trouble-free compressed air supply.
Electronic ECO-DRAIN condensate drains from KAESER are particularly economical and reliable thanks to a condensate volume-dependent control concept and a dirt-resistant valve mechanism.
Features:
- Suitable for aggressive condensate
- LED display operation
- Function test button
- Industry standard
- Capacitive level sensor
| Condensate temperature min. (°C) | +1 |
| Max. condensate temperature (°C) | +60 |
| Electrical supply | 95-240 VAC / 50-60 Hz |
| Max. input power (W) | 3 |
| Min. overpressure (bar) | 1 |
| Max. Overpressure (bar) | 16 |
| Protection class | IP 67 |
| Condensate inlet connection | G ½ |
| Condensate drain connection | G ¼ |
| Weight (kg) | 0,8 |
| Width (mm) | 164 |
| Depth (mm) | 65 |
| Height (mm) | 118 |
| Max. Volume flow for climate zone 2 for | 2,5 |
| Max. Volume flow for climate zone 2 for | 5 |
| LED display fault | No |
| Floating contact Fault | No |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

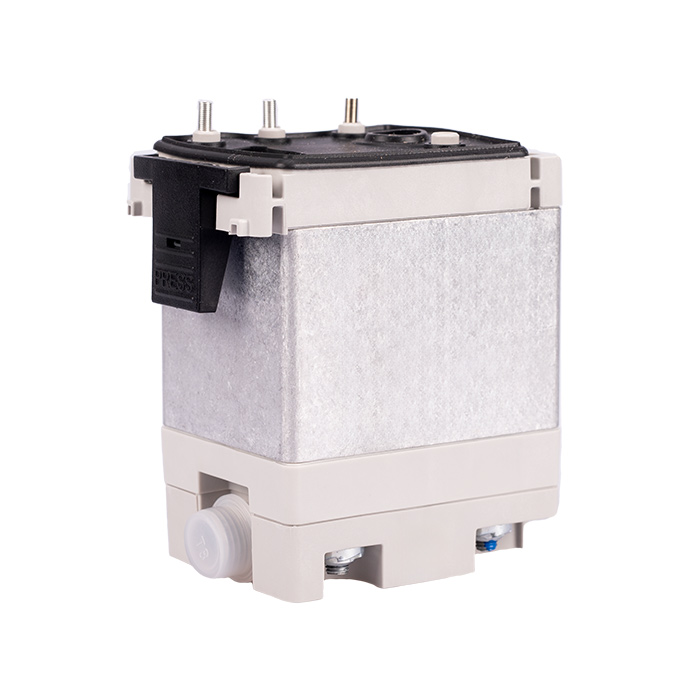

![[8.2474.01550] KAESER ECO-DRAIN 30 service unit](/web/image/product.template/16932/image_128/%5B8.2474.01550%5D%20KAESER%20ECO-DRAIN%2030%20service%20unit?unique=7085d25)
|
Für Kondensatableiter KAESER ECO-DRAIN 30 |
167.79 € | |
