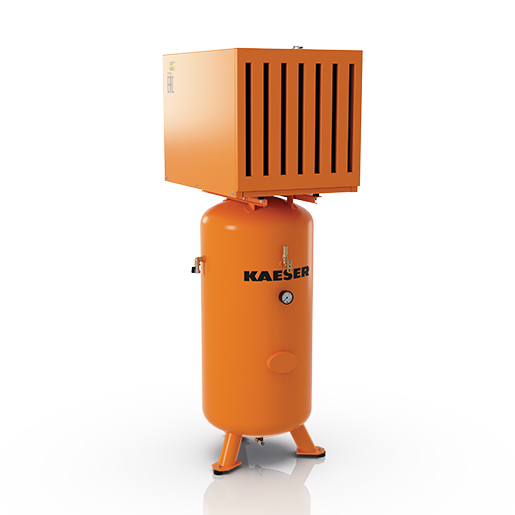

KAESER Reciprocating compressor EUROCOMP model EPC 840-250 St with sound enclosure
Volume flow at 6 bar: 590 l/min | Maximum overpressure: 10 bar | Pressure tank, vertical: 250 liters | Electrical connection: 400 V / 3 Ph / 50 Hz
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Product no. :
DEEPC840250STSDHCategory :
Oil-Lubricated Workshop CompressorsWeight :
156.00 kgDelivery area :
GermanyCompressor equipment
- air-cooled compressor block with ring oil lubrication (up to 2.4 kW splash oil lubrication)
- Intake air filter with silencer
- Aluminum cylinder heads and additional cooling pipes for optimum heat dissipation
- Ring cooler made of multi-chamber aluminum profile simultaneously designed as contact protection (from 3 kW)
- lightweight, low-noise reed valves
- Oil filler neck, breather, oil drain plug, oil level indicator glass
- Compressor and motor directly coupled
- Oil level monitoring with automatic shutdown in the event of low oil*
- Vibration isolation of compressor, motor and pressure vessel with vibration metal elements and elastic pressure hose
- Oscillating metal elements for the pressure vessel
Motor- four-pole, 1500 1/min, three-phase current 400 V/50 Hz
- Protection class IP 54, design B 15
- integrated axial fan for cooling the compressor and motor
*Optional for an additional charge. We are happy to answer any questions you may have.
| Volume flow at 6 bar (l/min) | 590 |
| Volume flow at 8 bar (l/min) | 530 |
| Max. Overpressure (bar) | 10 |
| Volume of compressed air tank (litres) | 250 |
| Motor speed (1/min) | 1.500 |
| Rated power drive motor (kW) | 4,9 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Number of cylinders | 2 |
| Compressed air connection | G 1/2 |
| Emission sound pressure level (dB(A)) | 78 |
| Width (mm) | 650 |
| Height (mm) | 1820 |
| Depth (mm) | 710 |
| Weight (kg) | 156 |
| Design | stationary |
| Sound insulation bonnet design | Yes |
