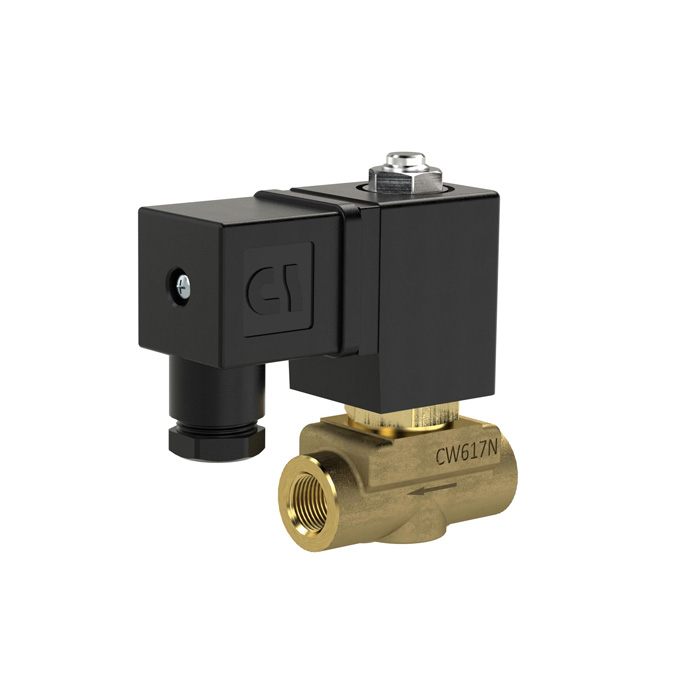

RIEGLER 2/2 MV, NC, MS, G14, DN 4,0, PN 0-8, NBR, direktg. 24V DC
Typennummer: MVA.14.MS.24D.N.RD.4
RIEGLER & Co. KG in Bad Urach ist ein angesehenes Unternehmen, das für seine innovativen Ansätze, erstklassige Produktqualität und engagierte Kundenbetreuung geschätzt wird. Seit mehr als 80 Jahren hat sich dieses Familienunternehmen zu einem führenden Anbieter von Komponenten für Druckluft- und Pneumatik sowie individuellen Systemlösungen entwickelt.
2/2-way solenoid valve, NC, brass, G 1/4, DN 4.0, PN 0-8, NBR, directly operated 24V DC, med.temp -20 to 85, ambi.temp -20 to 55
| Gehäuse | Messing |
| Dichtmaterial | NBR |
| Schutzart | IP 65 (bei Verwendung der Gerätesteckdose) |
| Betriebsdruck min. | 0 bar |
| Betriebsdruck max. | 8 bar |
| Mediumstemperatur min. | -20 °C |
| Mediumstemperatur max. | 85 °C |
| Umgebungstemperatur min. | -20 °C |
| Umgebungstemperatur max. | 55 °C |
| Gewinde | G 1/4 |
| DN | 4 |
| Gewindenorm | G-Gewinde nach DIN EN ISO 228-1 |
| Funktion | stromlos geschlossen (NC) |
| A (mm) | 50 |
| B (mm) | 80 |
| C (mm) | 29.5 |
| REACH SVHC1 Stoff Name | Blei |
| CAS-Nr. SVHC 1 | 7439-92-1 |
| RoHS Werkstoff-Hinweis | RoHS konform |
| RoHS Richtlinie | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Artikel der Richtlinie | Artikel 4, Absatz 1, Anhang 3 |
| Anteil SVHC Stoff in % bei RoHS | 0.04 |
| Ausnahme | 6c |
| REACH Info | enthält SVHC Stoff |
| SCIP Meldungsnummer Lieferant | keine SCIP Nr. vorhanden |
| Anteil SVHC SCIP | >= 1,0% w/w and < 10,0% w/w |
| SCIP Meldungsnummer RIEGLER | keine SCIP Nr. vorhanden |
| Anteil SVHC Stoff in SCIP | >= 0,1 % in w/w |
| Materialkennung | CW614N |
| Klassenname | PLUS |
| Stand Material Compliance | 44811 |
| Elektrischer Anschluss | Gerätesteckdose nach DIN EN 175301-803 Bauform A |
| Innenteile | Messing und Edelstahl |
| Ventilsitz | Messing und Edelstahl |
| Spannung | 24V DC |
