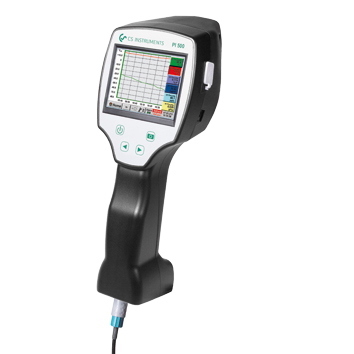

CS INSTRUMENTS Portable hand-held measuring device model PI 500, incl. data logger, incl. plug-in power supply unit
The PI 500 is a flexible mobile flowmeter for consumption and pressure measurements in industry. With simple operation, extensive data storage and USB data transfer, it is the ideal tool for efficient analysis. Perfect for companies that value accuracy.
CS Instruments
As a leading manufacturer of compressed air measurement technology, CS INSTRUMENTS stands for highest quality and innovation. "Made in Germany" is our practice - development, production, and calibration take place exclusively in Germany.
PI 500 - Mobile flowmeter
The PI 500 is an innovative mobile flowmeter with integrated data logger that can be used for a wide range of industrial compressed air and gas applications. Whether consumption and flow measurement, pressure and vacuum measurement or temperature and residual moisture measurement - the PI 500 covers everything and offers you a comprehensive solution for process optimization.
An outstanding feature of the PI 500 is the graphical display of the colored measurement curves, which allows you to intuitively analyze your measurement data. With the ability to store up to 100 million measured values, you are able to record comprehensive data sets including date and measurement location. The data is conveniently transferred to the PC via a USB stick, while the CS Soft Basic software enables easy analysis. This allows you to create measurement data and service reports quickly and easily.
Thanks to the PI 500's flexible sensor input, you can connect various sensors, including:
- Pressure probes for positive and negative pressure
- Consumption sensors such as VA 500 and VA 520
- Temperature sensor Pt 100, Pt 1000 or 4...20 mA
- Dew point sensors FA 510 and FA 515
- Electrical active power meter
- Any third-party sensors with signals such as 0...1/10 V, 0/4...20 mA, Pt 100, Pt 1000, pulse and Modbus
Product details:
- Versatile sensor input: For numerous common sensor signals
- Long operating time: Internally rechargeable LI-Ion batteries for around 12 hours of continuous operation
- User-friendly display: 3.5" graphic display with simple touchscreen operation
- Integrated data logger: Saves measured values precisely and reliably
- USB interface: For reading out data via USB stick
- International: Supports up to 8 selectable languages
With the PI 500, you are ideally equipped to monitor and optimize your industrial processes - efficiently, flexibly and user-friendly.
| Power supply | Internally rechargeable Li-Ion batteries, charging time approx. 4 h, PI 500; continuous operation > 4 h depending on power consumption for ext. sensor |
| EMC | DIN EN 61326 |
| Operating temperature (°C) | 0...50 |
| Dimensions | 82 x 96 x 245 mm |
| Housing | PC/ABS |
| Display | 3.5″ touch panel TFT transmissive, graphics, curves, statistics |
| Interface | USB interface |
| Weight (kg) | 0,450 |
| Storage temperature | -20...70 |
| Voltage supply for sensors | Output voltage: 24 VDC ± 10%; output current: 120 mA in continuous operation |
| Power supply unit | 100 - 240 VAC/50 - 60 Hz, 12 VDC - 1A, safety class 2 for use in dry rooms only |
| Memory capacity | 16 GB - Standard memory card |
