CS INSTRUMENTS VA 570 Flow/consumption sensor, with integrated 1 1/4" measuring section
The VA 570 is a flow meter with a powerful thermal mass flow sensor for precise consumption monitoring and leakage analysis. Ideal for distribution stations and billing, the VA 570 provides maximum control over your operations.
CS Instruments
As a leading manufacturer of compressed air measurement technology, CS INSTRUMENTS stands for highest quality and innovation. "Made in Germany" is our practice - development, production, and calibration take place exclusively in Germany.

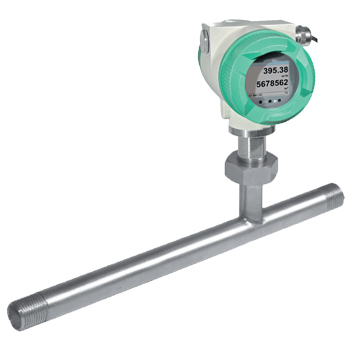

VA 570 with integrated 1 1/4" measuring section - Thermal mass flow sensor for flow measurement
Take advantage of the VA 570 flow meter with integrated 1 1/4" measuring section and optimize your energy efficiency and sustainability strategies. This advanced thermal mass flow sensor allows you to monitor your consumption and analyze leaks efficiently. The VA 570 is ideal for use in distribution stations, upstream of individual departments and for consumer billing purposes.
Advantages of the compact VA 570 flow sensor:
- Precise measurement: The VA 570 measures the mass flow directly and enables the output of the standardized volume flow without the need for additional measurements of pressure and temperature.
- High-quality materials: All wetted parts are made of stainless steel, which meets the highest standards of purity and surface quality.
- Rugged construction: The aluminum housing is specially designed for harsh industrial conditions and is also suitable for outdoor installations.
- Low maintenance: Thanks to its design without moving parts, the VA 570 is particularly easy to maintain.
- Low pressure loss: The sensor reduces pressure loss to a minimum, increasing the efficiency of your systems.
- Safety certificates: The VA 570 can be supplied with ATEX or DVGW certification, which qualifies it for use with various gases such as natural gas, hydrogen and biogas.
- High accuracy: It guarantees precise measurement of both small and large flows with an accuracy of up to ±1% of the measured value.
- Multiple interfaces: The VA 570 has 04...20 mA, pulse and Modbus RTU (RS 485) interfaces as standard, with additional optional interfaces for extended communication options.
- Integrated display: The device provides you with important measured values directly via an integrated display and makes it easy to control and adjust the settings.
- Easy installation: The sensor can be easily installed in the measuring section and, if necessary, easily unscrewed without having to laboriously dismantle the measuring section.
- Comprehensive diagnostics: All relevant measured values and settings can be called up via Modbus RTU, and you can query extensive diagnostic functions both directly on the display and remotely.
- Flexibility: The VA 570 is designed for media temperatures of up to 180 °C (ATEX version up to 120 °C) and can handle pressures of up to 16 bar (special version up to 40 bar).
| Measuring range | up to 50 Nm/s, Low-Speed Version*; up to 92.7 Nm/s, Standard Version*; up to 185 Nm/s, Max. Version*; up to 224 Nm/s, high-speed version*; * Measuring range Nm³/h for different pipe diameters and gases, see table Measuring ranges flow rate; * All measured values based on DIN 1343 standard conditions 0° and 1013 mbar ex works |
| Protection class | IP 67; IP64 for ATEX II 2D Ex tb IIIC T90°C Db |
| Outputs | Standard: 1 x 4...20 mA analog output (not galvanically isolated), pulse output, RS 485 (Modbus-RTU) Optional: 2 x 4...20 mA active, Modbus TCP, HART, Profibus DP, Profinet, MBus |
| Burden | < 500 Ω |
| Material | Housing die-cast aluminum, sensor tube stainless steel 1.4404 |
| Operating temperature (°C) | -20...70 |
| Accuracy (v. M. = from measured value) (v. E. |
± 1.5 % of the average ± 0.3 % of the average on request: ± 1 % of the average ± 0.3 % of the average |
| Operating pressure (bar) | 16, in special version 40 |
| Supply | 18...36 VDC, 5 W |
| Accuracy specifications | based on ambient temperature 22 °C ± 2 °C, system pressure 6 bar |
| Measuring principle | Thermal mass flow sensor |
| Repeatability | 0.25 % of weight with correct installation (installation aid, position, inlet section) |
| Response time | t90 < 3 s |
| Media temperature range | -20 .... 180 (ATEX version: -20 ... 120) |
| Setting options via display, external handheld PI 500, PC service software, remote diagnostics | Nm³/h, Nm³/min, Nl/min, l/s, ft/min, cfm, kg/h, kg/min, internal diameter, reference conditions °C/°F, mbar/hPa, zero point correction, creep suppression, scaling analog output 4...20 mA, pulse/alarm, error codes, etc. |
| Approval | ATEX II 2G Ex db IIC T4 Gb; ATEX II 2D Ex tb IIIC T90°C Db; DVGW |
| Additional mean value calculation | freely adjustable across all measured variables from 1 minute to 1 day, e.g. 1/2 hour average value, daily average value |
