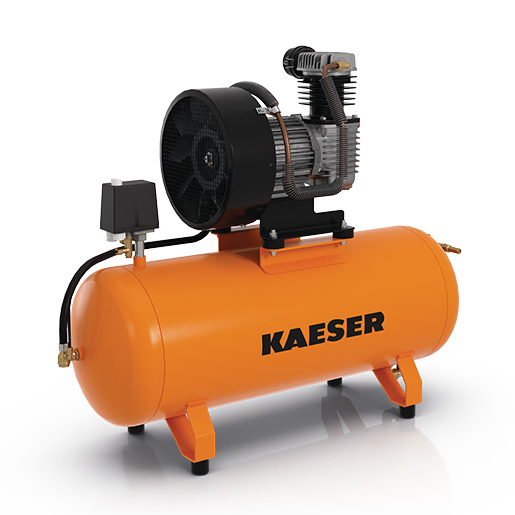

KAESER Reciprocating compressor EUROCOMP model EPC 340-100

https://www.filcom-technik.de/web/image/product.template/103262/image_1920?unique=bcbfce3

Volume flow at 6 bar: 195 l/min | Maximum overpressure: 10 bar | Pressure tank, horizontal: 90 liters | Electrical connection: 400 V / 3 Ph / 50 Hz

1,902.81 € 1902.81 EUR 1,902.81 € VAT Included

1,950.00 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
KAESER Kompressoren SE

KAESER Kompressoren SE

KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919

Product no. :

1.5746.7

Category :

Oil-Lubricated Workshop Compressors

Weight :

76.00 kg

Delivery area :

Germany

Compressor equipment

- air-cooled compressor block with ring oil lubrication (up to 2.4 kW splash oil lubrication)

- Intake air filter with silencer

- Aluminum cylinder heads and additional cooling pipes for optimum heat dissipation

- Ring cooler made of multi-chamber aluminum profile simultaneously designed as contact protection (from 3 kW)

- lightweight, low-noise reed valves

- Oil filler neck, breather, oil drain plug, oil level indicator glass

- Compressor and motor directly coupled

- Oil level monitoring with automatic shutdown in the event of low oil*

- Vibration isolation of compressor, motor and pressure vessel with vibration metal elements and elastic pressure hose

- Oscillating metal elements for the pressure vessel


Motor- four-pole, 1500 1/min, three-phase current 400 V/50 Hz

- Protection class IP 54, design B 15

- integrated axial fan for cooling the compressor and motor

*Optional for an additional charge. We are happy to answer any questions you may have.

Volume flow at 6 bar (l/min) 195
Volume flow at 8 bar (l/min) 170
Max. Overpressure (bar) 10
Volume of compressed air tank (litres) 90
Motor speed (1/min) 1500
Rated power drive motor (kW) 1,7
Electrical supply 400 V / 3 Ph / 50 Hz
Number of cylinders 1
Compressed air connection G 1/2
Emission sound pressure level (dB(A)) 73
Width (mm) 1120
Height (mm) 910
Depth (mm) 350
Weight (kg) 73
Design stationary
Sound insulation bonnet design No
KAESER Betriebsanleitung EPC
Download
KAESER Prospekt EPC
Download

Variants / Alternatives

Product Price

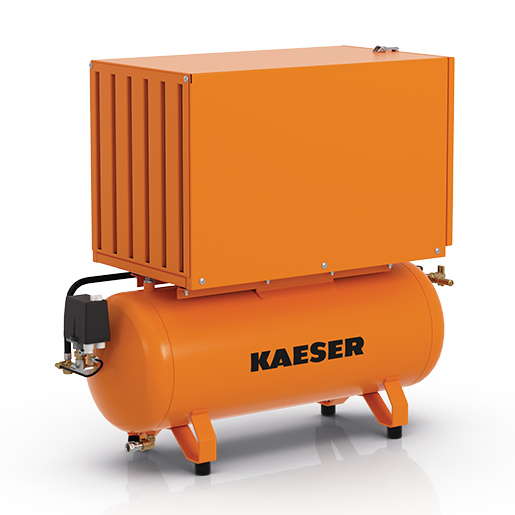

[DEEPC340100SDH] KAESER Reciprocating compressor EUROCOMP Model EPC 340-100 with sound enclosure

Volume flow at 6 bar: 195 l/min | Maximum overpressure: 10 bar | Pressure tank, horizontal: 90 liters | Electrical connection: 400 V / 3 Ph / 50 Hz

 3,278.69 €

Maintenance, wear and spare parts

Product Price
[9.0894.1] KAESER Compressor oil VDL 150

VDL 150 piston compressor oil suitable for EUROCOMP piston compressors and piston compressors over 15 kW

 36.77 €
