Riegler Precision pressure regulator »FUTURA«, Size 2, G 1/2, 0.5 - 8 bar
Type number: FU 7548
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Precision pressure regulator "FUTURA", incl. pressure gauge, BG 2, G 1/2, PE max. 16 bar, temp. -10 °C to 50 °C, control range 0.5 - 8 bar
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Intrinsic air consumption max. | 2.6 l/min (depending on secondary pressure) |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Thread | G 1/2 |
| Control range min. | 0.5 bar |
| Control range max. | 8 bar |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 2 |
| A | 63 mm |
| B | 150 mm |
| C | 110 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Intrinsic air consumption | Yes |
| Class name | MAX |
| Stand Material Compliance | 45159 |
| Flow_1 | 5200 l/min |
| SCIP message number Supplier | 248c5528-a48c-4bfb-b901-3490fcdad6a7 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100076] Riegler Precision pressure regulator »FUTURA«, Size 1, G 1/4, 0.1 - 1 bar](/web/image/product.template/121944/image_128/%5B100076%5D%20Riegler%20Precision%20pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.1%20-%201%20bar?unique=2940df5)
|
Type number: FU 7401 |
79.25 € | |
![[100078] Riegler Precision pressure regulator »FUTURA«, Size 1, G 1/4, 0.2 - 4 bar](/web/image/product.template/121946/image_128/%5B100078%5D%20Riegler%20Precision%20pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.2%20-%204%20bar?unique=dc0b6a1)
|
Type number: FU 7404 |
79.25 € | |
![[100080] Riegler Precision pressure regulator »FUTURA«, Size 1, G 1/4, 0.5-10 bar](/web/image/product.template/121948/image_128/%5B100080%5D%20Riegler%20Precision%20pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.5-10%20bar?unique=3b7cd9b)
|
Type number: FU 7410 |
79.25 € | |
![[100079] Riegler Precision pressure regulator »FUTURA«, Size 1, G 1/4, 0.5 - 8 bar](/web/image/product.template/121947/image_128/%5B100079%5D%20Riegler%20Precision%20pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%208%20bar?unique=6b94fd4)
|
Type number: FU 7408 |
79.25 € | |

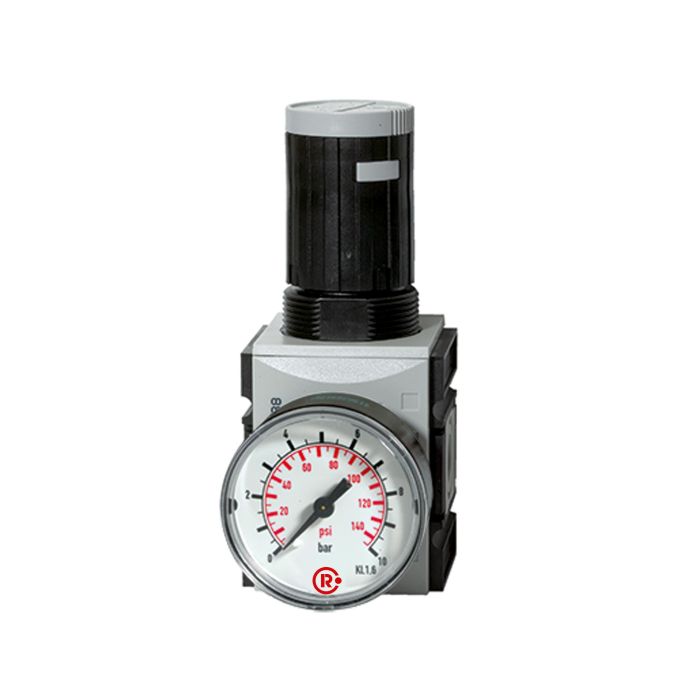

![[100085] Riegler Precision pressure regulator »FUTURA«, Size 1, G 3/8, 0.5-10 bar](/web/image/product.template/121954/image_128/%5B100085%5D%20Riegler%20Precision%20pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%203-8%2C%200.5-10%20bar?unique=7a9a025)
|
Type number: FU 7510 |
79.25 € | |
![[100084] Riegler Precision pressure regulator »FUTURA«, Size 1, G 3/8, 0.5 - 8 bar](/web/image/product.template/121953/image_128/%5B100084%5D%20Riegler%20Precision%20pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%208%20bar?unique=e0445dc)
|
Type number: FU 7508 |
79.25 € | |
![[100091] Riegler Precision pressure regulator »FUTURA«, Size 2, G 1/2, 0.1 - 1 bar](/web/image/product.template/121962/image_128/%5B100091%5D%20Riegler%20Precision%20pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%201-2%2C%200.1%20-%201%20bar?unique=6b5748d)
|
Type number: FU 7541 |
101.94 € | |
![[100092] Riegler Precision pressure regulator »FUTURA«, Size 2, G 1/2, 0.1 - 2 bar](/web/image/product.template/121963/image_128/%5B100092%5D%20Riegler%20Precision%20pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%201-2%2C%200.1%20-%202%20bar?unique=ed6d2ea)
|
Type number: FU 7542 |
101.94 € | |
![[100093] Riegler Precision pressure regulator »FUTURA«, Size 2, G 1/2, 0.2 - 4 bar](/web/image/product.template/121964/image_128/%5B100093%5D%20Riegler%20Precision%20pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%201-2%2C%200.2%20-%204%20bar?unique=c380b99)
|
Type number: FU 7544 |
101.94 € | |
![[100095] Riegler Precision pressure regulator »FUTURA«, Size 2, G 1/2, 0.5-10 bar](/web/image/product.template/121966/image_128/%5B100095%5D%20Riegler%20Precision%20pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%201-2%2C%200.5-10%20bar?unique=57318ee)
|
Type number: FU 7550 |
101.94 € | |
![[139483] Riegler Precision pressure regulator »FUTURA«, Size 2, G 1/2, 0.5-16 bar](/web/image/product.template/121967/image_128/%5B139483%5D%20Riegler%20Precision%20pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%201-2%2C%200.5-16%20bar?unique=d52895d)
|
Type number: FU 7556 |
100.03 € | |
![[100087] Riegler Precision pressure regulator »FUTURA«, Size 2, G 3/8, 0.1 - 2 bar](/web/image/product.template/121957/image_128/%5B100087%5D%20Riegler%20Precision%20pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%203-8%2C%200.1%20-%202%20bar?unique=428a261)
|
Type number: FU 7522 |
101.94 € | |
![[100088] RIEGLER precision pressure regulator FUTURA, with mano, BG 2, G 3/8, 0.2-4 bar](/web/image/product.template/121958/image_128/%5B100088%5D%20RIEGLER%20precision%20pressure%20regulator%20FUTURA%2C%20with%20mano%2C%20BG%202%2C%20G%203-8%2C%200.2-4%20bar?unique=5d69e63)
|
Type number: FU 7524 |
62.18 € | |
![[100090] RIEGLER precision pressure regulator FUTURA, with mano, BG 2, G 3/8, 0.5-10 bar](/web/image/product.template/121960/image_128/%5B100090%5D%20RIEGLER%20precision%20pressure%20regulator%20FUTURA%2C%20with%20mano%2C%20BG%202%2C%20G%203-8%2C%200.5-10%20bar?unique=db1cc1d)
|
Type number: FU 7530 |
62.18 € | |
![[100089] RIEGLER precision pressure regulator FUTURA, with mano, BG 2, G 3/8, 0.5-8 bar](/web/image/product.template/121959/image_128/%5B100089%5D%20RIEGLER%20precision%20pressure%20regulator%20FUTURA%2C%20with%20mano%2C%20BG%202%2C%20G%203-8%2C%200.5-8%20bar?unique=efe5f8d)
|
Type number: FU 7528 |
62.18 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100037] Riegler Plug lock for »FUTURA«, made of nickel-plated brass](/web/image/product.template/118199/image_128/%5B100037%5D%20Riegler%20Plug%20lock%20for%20%C2%BBFUTURA%C2%AB%2C%20made%20of%20nickel-plated%20brass?unique=43721ec)
|
Type number: SS 32 |
73.26 € | |
![[100043] Riegler Mounting bracket incl. 2 screws, for »FUTURA«, Size 2](/web/image/product.template/118205/image_128/%5B100043%5D%20Riegler%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=05d11b7)
|
Type number: H 852 |
17.04 € | |
![[100044] Riegler Wall console incl. 2 screws and O-ring, for »FUTURA«, Size 2](/web/image/product.template/118206/image_128/%5B100044%5D%20Riegler%20Wall%20console%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=b6753ca)
|
Type number: WK 102 |
8.53 € | |
![[100045] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 2](/web/image/product.template/118207/image_128/%5B100045%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=00481dc)
|
Type number: KP 200 |
4.31 € | |
![[100046] Riegler Control panel nut M42x1.5, for »FUTURA«, Size 2, G 3/8 and G 1/2](/web/image/product.template/118208/image_128/%5B100046%5D%20Riegler%20Control%20panel%20nut%20M42x1.5%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%203-8%20and%20G%201-2?unique=0e0e6f7)
|
Type number: FU 33-55 |
2.98 € | |
![[100331] RIEGLER Wall console with connection thread G 3/8, for »FUTURA«, Size 2](/web/image/product.template/139765/image_128/%5B100331%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%203-8%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=21df57b)
|
Type number: WK 102-38 |
43.07 € | |
![[100332] RIEGLER Wall console with connection thread G 1/2, for »FUTURA«, Size 2](/web/image/product.template/139766/image_128/%5B100332%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%201-2%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=6d5a04b)
|
Type number: WK 102-12 |
43.07 € | |
![[100333] RIEGLER Wall console with connection thread G 3/4, for »FUTURA«, Size 2](/web/image/product.template/139767/image_128/%5B100333%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%203-4%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=d8cd52e)
|
Type number: WK 102-34 |
43.07 € | |

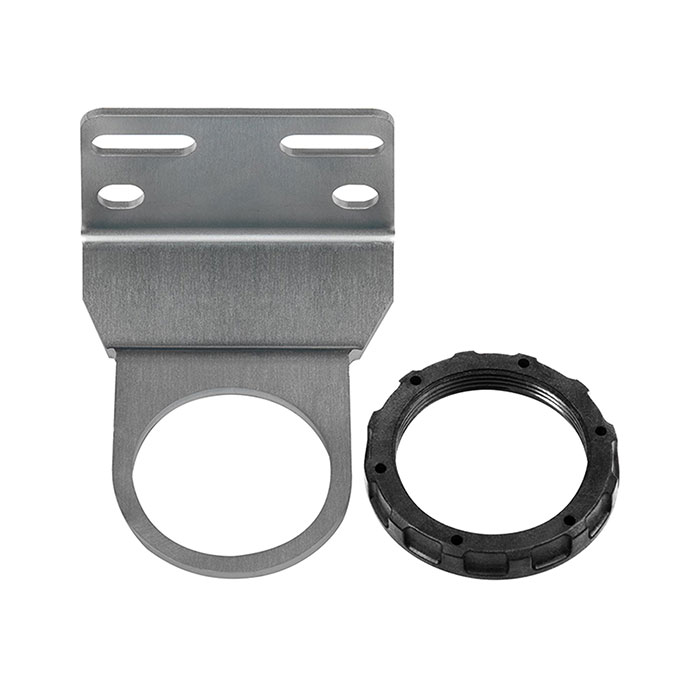

![[152946] RIEGLER Mounting bracket with control panel nut M42x1.5, »FUTURA«, Size 2](/web/image/product.template/212485/image_128/%5B152946%5D%20RIEGLER%20Mounting%20bracket%20with%20control%20panel%20nut%20M42x1.5%2C%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=1a871fe)
|
