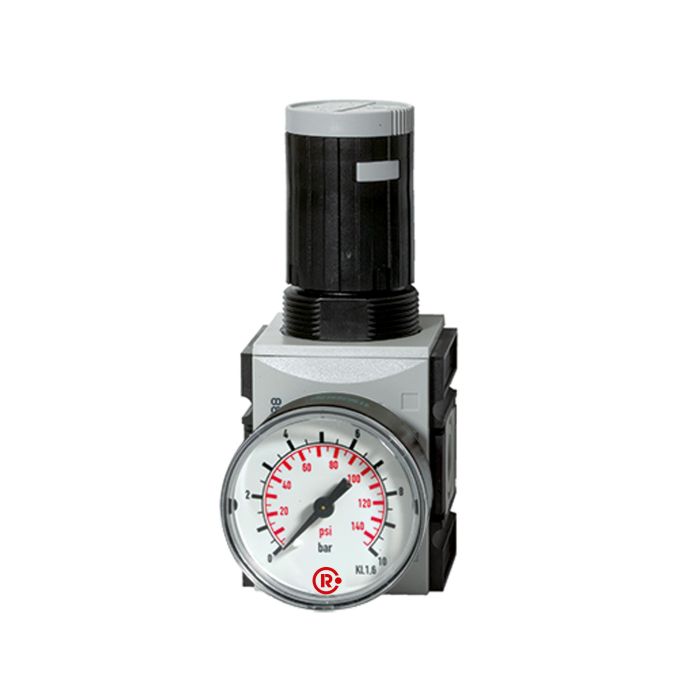

RIEGLER precision pressure regulator FUTURA, with mano, BG 2, G 3/8, 0.5-10 bar
Type number: FU 7530
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Precision pressure regulator "FUTURA" made of PA66 GF60, for compressed air preparation, 0.5 bar - Type FU 7530
The RIEGLER precision pressure regulator "FUTURA", with Mano, BG 2, G 3/8, 0.5-10 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of PA66 GF60 with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 16 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 3/8 - suitable for common industry standards. Suitable for compressed air, neutral gases. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Intrinsic air consumption max. | 2.6 l/min (depending on secondary pressure) |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Thread | G 3/8 |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 2 |
| A | 63 mm |
| B | 150 mm |
| C | 110 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Intrinsic air consumption | Yes |
| Class name | MAX |
| Stand Material Compliance | 45159 |
| Flow 1 | 4500 l/min |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100037] Riegler Plug lock for »FUTURA«, made of nickel-plated brass](/web/image/product.template/118199/image_128/%5B100037%5D%20Riegler%20Plug%20lock%20for%20%C2%BBFUTURA%C2%AB%2C%20made%20of%20nickel-plated%20brass?unique=f92ff32)
|
Type number: SS 32 |
43.95 € | |
![[100043] Riegler Mounting bracket incl. 2 screws, for »FUTURA«, Size 2](/web/image/product.template/118205/image_128/%5B100043%5D%20Riegler%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=16e8c98)
|
Type number: H 852 |
10.22 € | |
![[100044] Riegler Wall console incl. 2 screws and O-ring, for »FUTURA«, Size 2](/web/image/product.template/118206/image_128/%5B100044%5D%20Riegler%20Wall%20console%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=86c1375)
|
Type number: WK 102 |
5.13 € | |
![[100045] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 2](/web/image/product.template/118207/image_128/%5B100045%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=dc343f6)
|
Type number: KP 200 |
2.58 € | |
![[100046] Riegler Control panel nut M42x1.5, for »FUTURA«, Size 2, G 3/8 and G 1/2](/web/image/product.template/118208/image_128/%5B100046%5D%20Riegler%20Control%20panel%20nut%20M42x1.5%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%203-8%20and%20G%201-2?unique=cf932d0)
|
Type number: FU 33-55 |
1.77 € | |
![[100331] RIEGLER Wall console with connection thread G 3/8, for »FUTURA«, Size 2](/web/image/product.template/139765/image_128/%5B100331%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%203-8%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=8e3de4c)
|
Type number: WK 102-38 |
42.36 € | |
![[100332] RIEGLER Wall console with connection thread G 1/2, for »FUTURA«, Size 2](/web/image/product.template/139766/image_128/%5B100332%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%201-2%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=71c0121)
|
Type number: WK 102-12 |
42.36 € | |
![[100333] RIEGLER Wall console with connection thread G 3/4, for »FUTURA«, Size 2](/web/image/product.template/139767/image_128/%5B100333%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%203-4%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=ed3feda)
|
Type number: WK 102-34 |
42.36 € | |

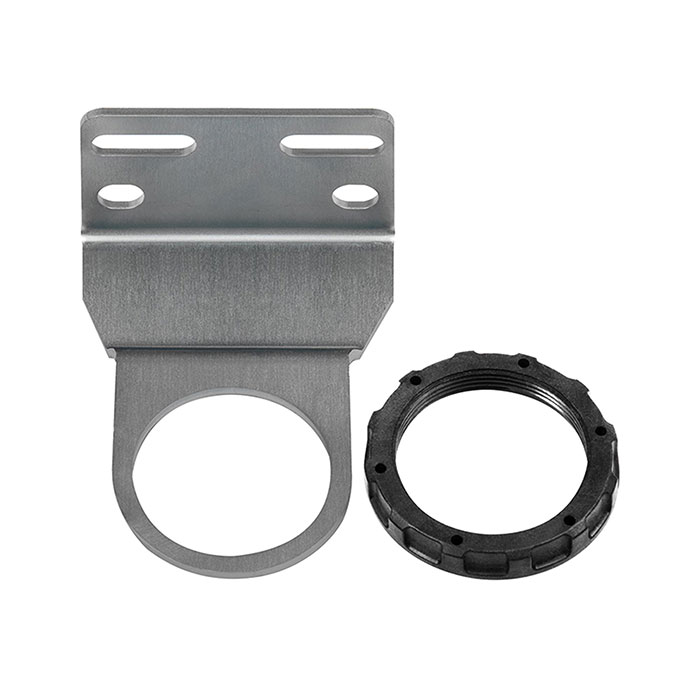

![[152946] RIEGLER Mounting bracket with control panel nut M42x1.5, »FUTURA«, Size 2](/web/image/product.template/212485/image_128/%5B152946%5D%20RIEGLER%20Mounting%20bracket%20with%20control%20panel%20nut%20M42x1.5%2C%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=0d29142)
|
