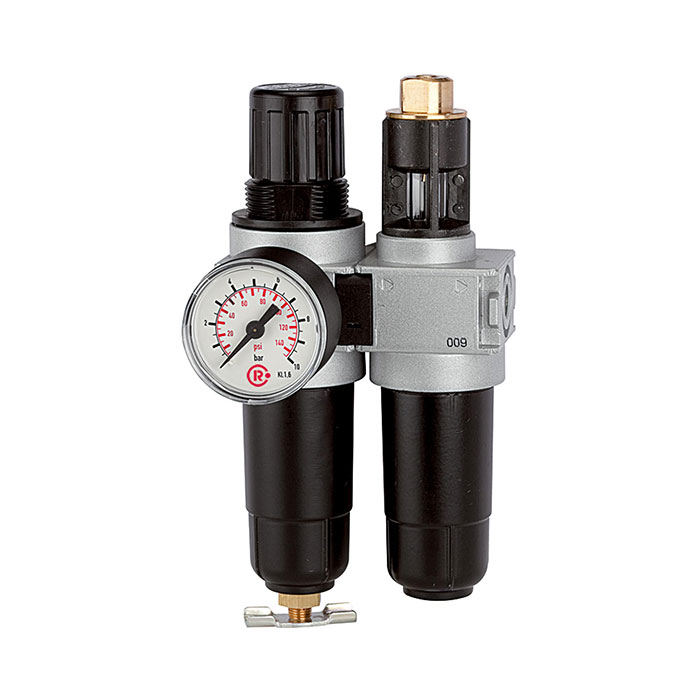

RIEGLER Service unit 2-part »multifix-mini«, Metal container, G 1/8
Type number: CL 05 M
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Service unit 2-part »multifix-mini« with metal container, Size 0, G 1/8, Input pressure max. 12 bar, Control range 0.5 - 10 bar
| Inlet pressure max. | 12 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix-mini |
| Container | Metal container |
| Filter fineness | 5 µm |
| Dropper attachment | Zinc-glass-NBR |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1/8 |
| Flow rate | 700 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 5 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 0 |
| A | 80 mm |
| B | 162 mm |
| C | 63 mm |
| D | 99 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100397] RIEGLER Service unit 2-part »multifix-mini«, Metal container, G 1/4](/web/image/product.template/139831/image_128/%5B100397%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBmultifix-mini%C2%AB%2C%20Metal%20container%2C%20G%201-4?unique=4b58f1d)
|
Type number: CL 06 M |
94.24 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=a056128)
|
Type number: 32 |
34.57 € | |
![[100344] RIEGLER Mounting bracket with nut M30x1.5](/web/image/product.template/139778/image_128/%5B100344%5D%20RIEGLER%20Mounting%20bracket%20with%20nut%20M30x1.5?unique=e03fd01)
|
Type number: MV 30 |
5.11 € | |
![[100345] RIEGLER Control panel nut M30x1.5, for »multifix-mini« and »multifix«](/web/image/product.template/139779/image_128/%5B100345%5D%20RIEGLER%20Control%20panel%20nut%20M30x1.5%2C%20for%20%C2%BBmultifix-mini%C2%AB%20and%20%C2%BBmultifix%C2%AB?unique=27584db)
|
Type number: R 11-55 |
1.64 € | |
![[100346] RIEGLER Coupling package for blocking several components](/web/image/product.template/139780/image_128/%5B100346%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components?unique=148b518)
|
Type number: KP 05 |
0.93 € | |
![[100357] RIEGLER Polycarbonate container, incl. NBR O-ring 30x2](/web/image/product.template/139791/image_128/%5B100357%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20NBR%20O-ring%2030x2?unique=9528641)
|
Type number: 640/1-HA |
10.21 € | |
![[100359] RIEGLER Metal container, incl. NBR O-ring, with semi autom. bleeder valve](/web/image/product.template/139793/image_128/%5B100359%5D%20RIEGLER%20Metal%20container%2C%20incl.%20NBR%20O-ring%2C%20with%20semi%20autom.%20bleeder%20valve?unique=ebbd264)
|
Type number: 641/11-HA |
21.96 € | |
![[100360] RIEGLER Metal container, incl. O-ring, with fully autom. bleeder valve](/web/image/product.template/139794/image_128/%5B100360%5D%20RIEGLER%20Metal%20container%2C%20incl.%20O-ring%2C%20with%20fully%20autom.%20bleeder%20valve?unique=b191870)
|
Type number: 640/11-A |
55.26 € | |
![[100361] RIEGLER Polycarbonate container, incl. O-ring, fully autom. bleeder valve](/web/image/product.template/139795/image_128/%5B100361%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring%2C%20fully%20autom.%20bleeder%20valve?unique=28e83ff)
|
Type number: KS 11 F-A |
43.65 € | |
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=2982ee1)
|
Type number: 655.6.900 |
36.96 € | |
![[100367] RIEGLER Mounting set for »multifix-mini«](/web/image/product.template/139801/image_128/%5B100367%5D%20RIEGLER%20Mounting%20set%20for%20%C2%BBmultifix-mini%C2%AB?unique=65f4cb2)
|
Type number: ZW 05 |
4.03 € | |
![[100383] RIEGLER Polycarbonate container incl. O-ring](/web/image/product.template/139817/image_128/%5B100383%5D%20RIEGLER%20Polycarbonate%20container%20incl.%20O-ring?unique=e78ebbc)
|
Type number: 740/01 |
7.01 € | |
![[100393] RIEGLER Drip cap metal](/web/image/product.template/139827/image_128/%5B100393%5D%20RIEGLER%20Drip%20cap%20metal?unique=ffae751)
|
Type number: 1233.7.909 |
18.71 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100392] RIEGLER Drip cap polyamide PA, Thread M24x1.5](/web/image/product.template/139826/image_128/%5B100392%5D%20RIEGLER%20Drip%20cap%20polyamide%20PA%2C%20Thread%20M24x1.5?unique=e961ce3)
|
Type number: 1233.7.990 |
9.50 € | |
![[100134] Riegler Filter element 5 µm, Cellpor](/web/image/product.template/123199/image_128/%5B100134%5D%20Riegler%20Filter%20element%205%20%C2%B5m%2C%20Cellpor?unique=1c09ebb)
|
Type number: 611.6.905 |
13.14 € | |
![[100358] RIEGLER Metal container, incl. NBR O-ring 30x2](/web/image/product.template/139792/image_128/%5B100358%5D%20RIEGLER%20Metal%20container%2C%20incl.%20NBR%20O-ring%2030x2?unique=d0b39b6)
|
Type number: 640/11 |
17.06 € | |
![[100391] RIEGLER Metal container incl. O-ring](/web/image/product.template/139825/image_128/%5B100391%5D%20RIEGLER%20Metal%20container%20incl.%20O-ring?unique=5a5d1ca)
|
Type number: 740/11 |
14.43 € | |
![[101534] RIEGLER Standard pressure gauge, rear centric, G 1/8, 0 - 16 bar/230 psi](/web/image/product.template/169508/image_128/%5B101534%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-8%2C%200%20-%2016%20bar-230%20psi?unique=810c6e3)
|
Type number: 110.47-KD |
6.15 € | |

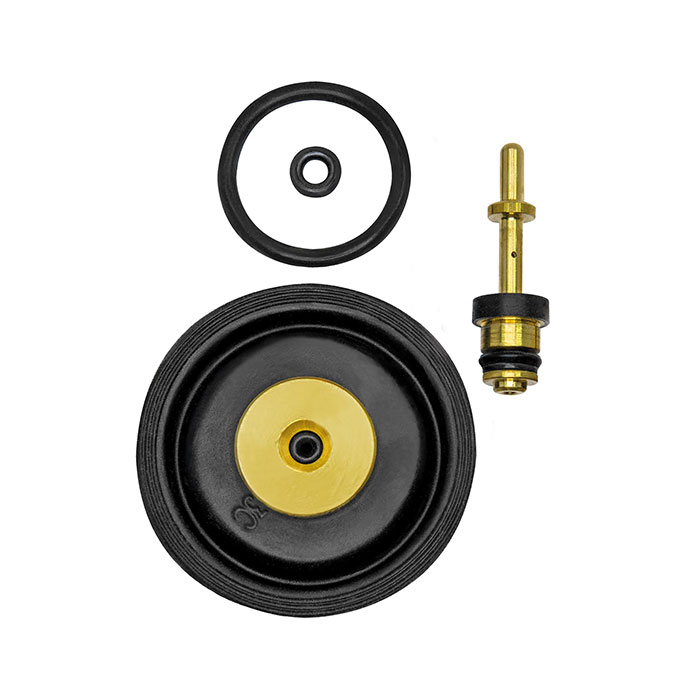

![[100347] RIEGLER Wear part set, for »multifix-mini«, Size 0, G 1/8 and G 1/4](/web/image/product.template/139781/image_128/%5B100347%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20%C2%BBmultifix-mini%C2%AB%2C%20Size%200%2C%20G%201-8%20and%20G%201-4?unique=5e3af02)
|
