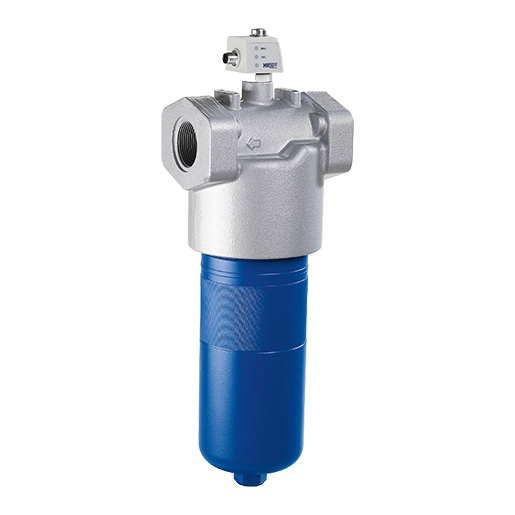

Hengst line filter simple 350LEN0160-PWR10A00-V5,0-M-U6 / R928033733
Hengst Filtration
High-quality filtration solutions for hydraulic systems. In the filtration industry, one name stands for excellence, advancement, and top-notch performance: Hengst Filtration. Over many years, Hengst Filtration has established itself as a leading provider of filter solutions for diverse applications and industrial sectors.
| Anschlussart | Pipe thread according to SAE J1926 |
| Connection size | 1 7/8-12 UN 2B [SAE 24] |
| Anzeigedruck (bar) | 5 |
| Series | 350LEN |
| Betriebstemperatur (°C) | -10°C to +100°C |
| Bypass | yes |
| Element | Glass fiber 10µm |
| Filtertype | Inline filter, simple |
| Weight (kg) | 17.2 |
| Max. Operating pressure (bar) | 350 |
| Nenngröße | 0160 |
| Verschmutzungsanzeige | optical / brass |
| Seal material | NBR seal |
| Werkstoff Filterkopf | Cast iron with spheroidal graphite |
| Werkstoff Filtertopf | Steel |
