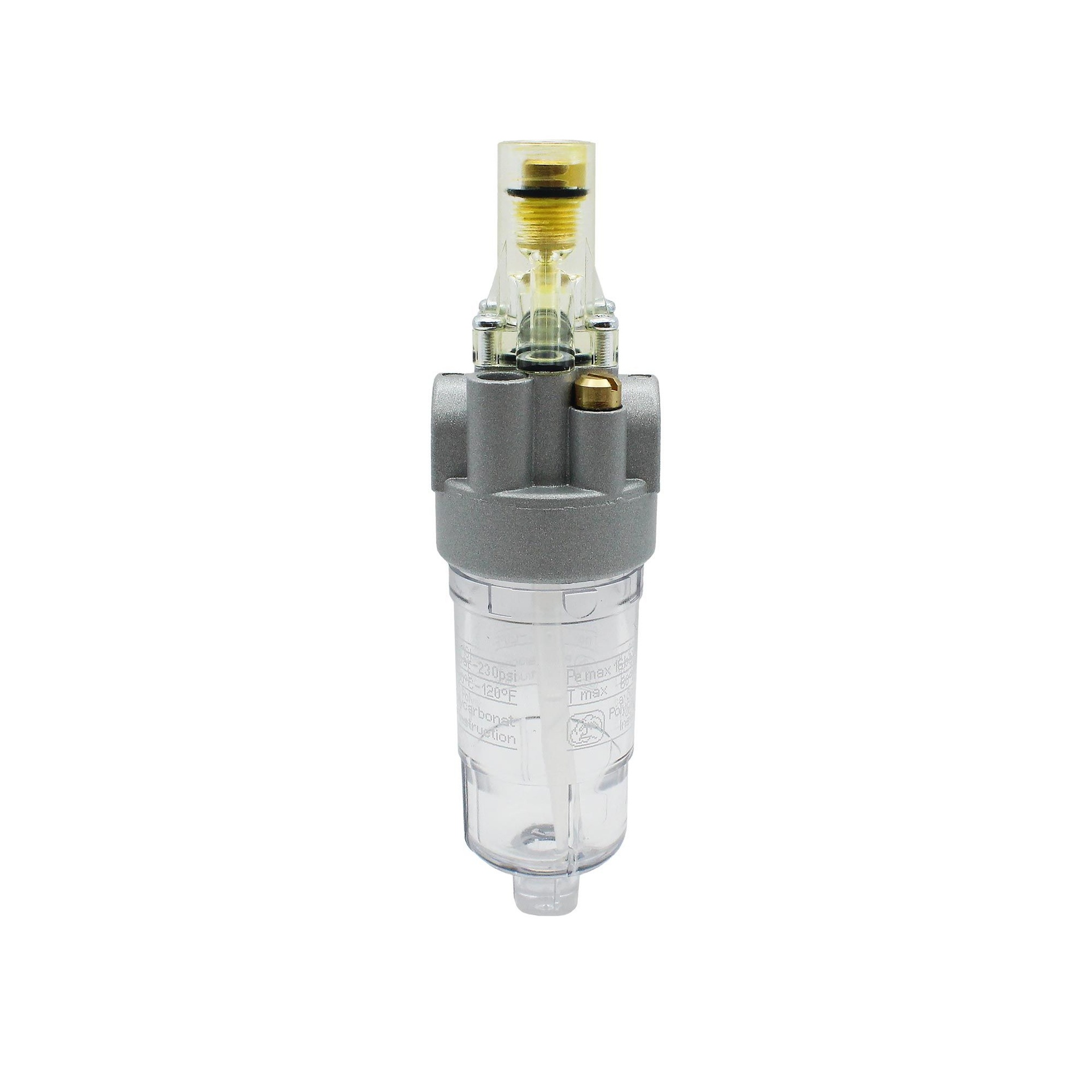

RIEGLER Mist oiler »Standard-mini« with PC container, Size 0, G 1/8

Price:

24.47 €

RIEGLER Mist oiler »Standard-mini« with PC container, Size 0, G 1/4
RIEGLER Mist oiler »Standard-mini« with PC container, Size 0, G 1/4
24.47 € 24.47 €
RIEGLER Mist oiler »Standard« with Metal container, Size 1, G 1/4
RIEGLER Mist oiler »Standard« with Metal container, Size 1, G 1/4
51.43 € 51.43 €

RIEGLER Mist oiler »Standard-mini« with PC container, Size 0, G 1/8

https://www.filcom-technik.de/web/image/product.template/140226/image_1920?unique=902bb14

Type number: 743 K

EAN: 4047322116664

24.47 € 24.47 EUR 24.47 € VAT Included

38.08 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

100790

EAN :

4047322116664

Category :

Oilers

Weight :

0.21 kg

Mist lubricator "Standard-mini" with polycarbonate tank, BG 0, G 1/8, PE max. 16 bar, ambient medium temperature max. 60 °C

Inlet pressure max. 16 bar
Housing Die-cast zinc, painted silver
Sealing material NBR
Flow rate measurement at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar
Series Standard mini
Container Polycarbonate container
Dropper attachment PA
Oil grade CL 32 according to DIN 51517-ISO VG 32
Medium temperature min. -10 °C
Medium temperature max. 60 °C
Ambient temperature min. -10 °C
Ambient temperature max. 60 °C
Thread G 1/8
Flow rate 650 l/min
DN 5
BG 0
A 40 mm
B 144.5 mm
C 49.5 mm
D 95 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6a-I, 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW614N
Class name EASY
