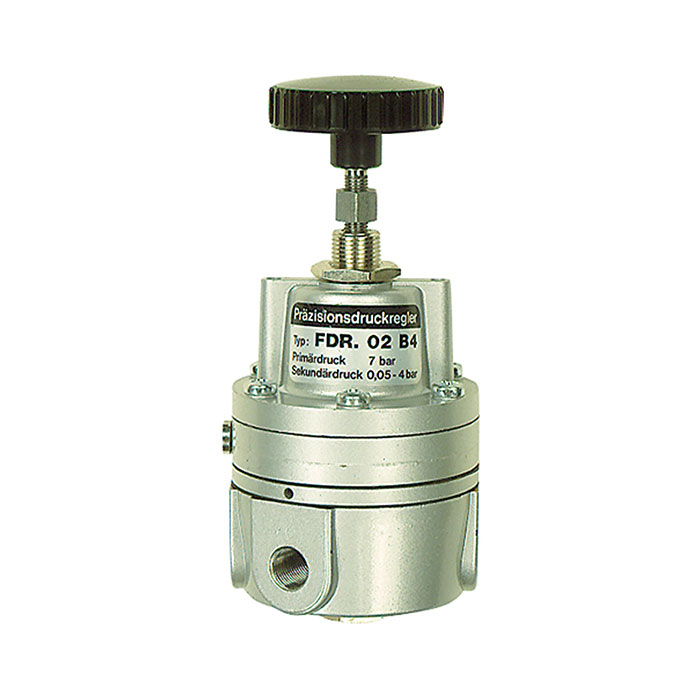

RIEGLER Precision pressure regulator, G 1/4, Control range 0.05 - 4 bar
Type number: 637.93
EAN: 4047322108904
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Precision pressure regulator without pressure gauge, G 1/4, control range 0.05 - 4 bar, PE max. 16 bar, ambient medium temperature max. 60 °C
| Inlet pressure max. | 16 bar |
| Medium | ultra-fine filtered, unlubricated compressed air (0.01 µm) |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Intrinsic air consumption max. | 2.2 - 4.5 l/min, depending on inlet pressure and control range |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Pressure gauge connection | G 1/8 |
| Thread | G 1/4 |
| Flow rate | 570 l/min |
| Control range min. | 0.05 bar |
| Control range max. | 4 bar |
| A | 58 mm |
| B | 124 mm |
| C | 107 mm |
| D | 17 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a, 6a-I, 6b, 6b-I |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Intrinsic air consumption | Yes |
| Class name | FLEX |
