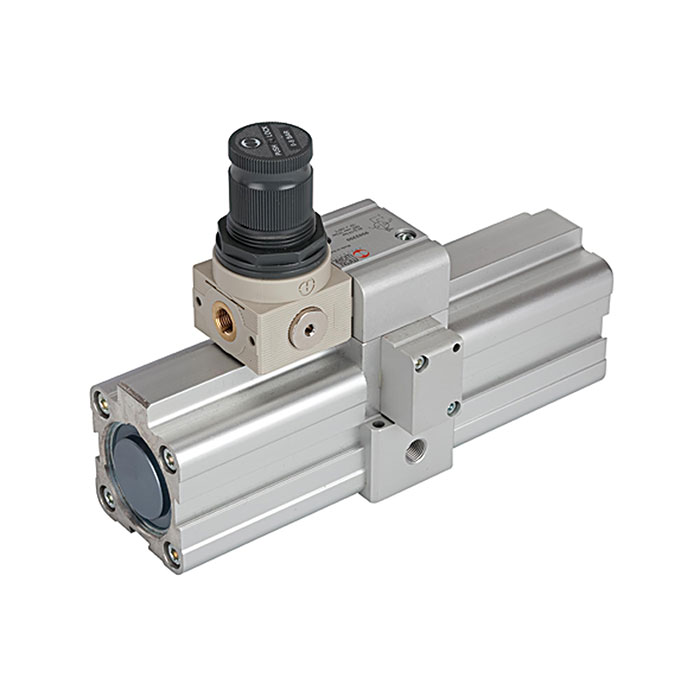

RIEGLER Double piston pressure multiplier (booster) with controller, G1/8
Type number: B-922
EAN: 4047322284936
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
101531EAN :
4047322284936Category :
Air-Air Pressure Multipliers (Boosters)Weight :
1.59 kgDouble piston pressure booster with regulator, G 1/8, piston Ø 40 mm, amplification 1:1 to 1.6:1, PE 2 - 10 bar, PA max. 16 bar
| Inlet pressure min. | 2 bar |
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Housing | Aluminum, anodized |
| Sealing material | NBR |
| Pipe | Profile tube made of aluminium, anodized |
| Mounting options | any, via 4 mounting holes |
| Thread | G 1/8 |
| P2:P1 | 1:1 to 1.6:1 |
| Piston Ø | 40 mm |
| Pressure regulator | with plastic housing |
| L | 194 mm |
| H | 141.2 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.0035 |
| Exception | 6a |
| REACH Info | contains SVHC substance |
| Outlet pressure max. | 16 bar |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | C 45 Pb |
| Class name | PLUS |
