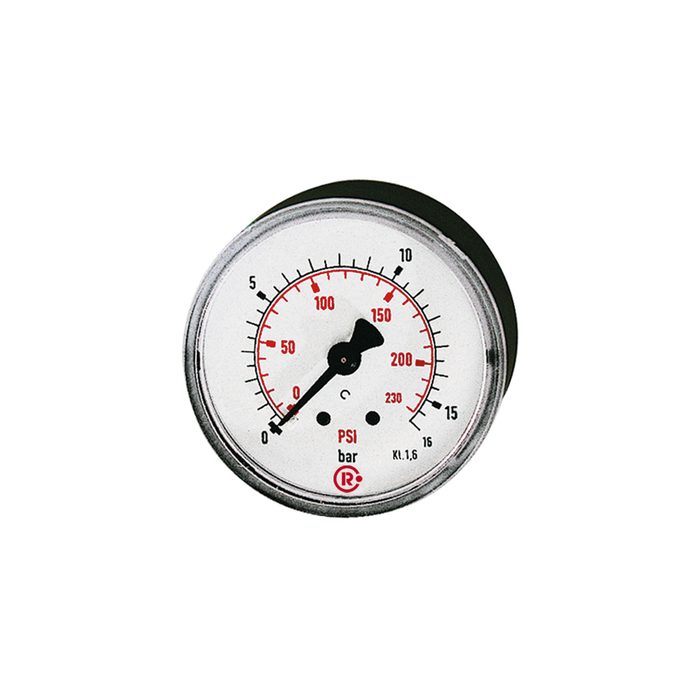

RIEGLER Standard pressure gauge, rear centric, G 1/8, 0 - 6 bar/87 psi
Type number: 110.45-KD
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Standardmano., Kunststoffgeh., Doppelskala bar/psi, Anschluss hinten zentr., G 1/8, Gütekl. 1,6, Messber. 0 - 6,0 bar/87 psi, Ø 40
| Housing | Plastic |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Type | 111.12 |
| Measuring element | Copper alloy |
| Pointer movement | Copper alloy |
| Viewing window | Plastic crystal clear |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 6 |
| Measuring range min. psi | 0 |
| Diameter | 40 mm |
| Graduation value in the bar range | 0.2 bar |
| Description of the | Pressure gauge Ø 40 mm, G 1/8 AG, 0 - 6 bar/87 psi |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Measuring range max. psi | 87 |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Quality class | 45444 |
| Connection position | rear, centric |
| Class name | PLUS |
| Process connection material | Copper alloy |
