RIEGLER Standard pressure gauge, radial bottom, G 1/2, -1 / +9 bar, Ø 160
Type number: 8306
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Standard pressure gauge, Single scale bar, Connection radial bottom, G 1/2, Goods class 1.6, Measurement range -1 / +9 bar, Ø 160
| Housing | Sheet steel |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Type | 111.10 |
| Measuring element | Copper alloy |
| Pointer movement | Copper alloy |
| Viewing window | Instrument flat glass |
| Measuring range min. bar | -1 |
| Measuring range max. bar | 9 |
| Diameter | 160 mm |
| Graduation value in the bar range | 0.2 bar |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 1/2 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Quality class | 45444 |
| Lower / Upper measuring range limit | Vacuum/overpressure |
| Brand pointer | - |
| Connection position | radial bottom |
| Class name | PLUS |
| Process connection material | Copper alloy |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101968] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 0.6 bar, Ø 100](/web/image/product.template/169940/image_128/%5B101968%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%200.6%20bar%2C%20%C3%98%20100?unique=32316d7)
|
Type number: 141 |
14.65 € | |
![[101987] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 0.6 bar, Ø 160](/web/image/product.template/169959/image_128/%5B101987%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%200.6%20bar%2C%20%C3%98%20160?unique=ec55adf)
|
Type number: 151 |
30.70 € | |
![[101950] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 0.6 bar, Ø 80](/web/image/product.template/169922/image_128/%5B101950%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%200.6%20bar%2C%20%C3%98%2080?unique=09d5e7e)
|
Type number: 130 |
12.76 € | |
![[101979] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0-100 bar, Ø 100](/web/image/product.template/169951/image_128/%5B101979%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200-100%20bar%2C%20%C3%98%20100?unique=6d530fa)
|
Type number: 150/2 |
16.62 € | |
![[101974] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 10 bar, Ø 100](/web/image/product.template/169946/image_128/%5B101974%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%2010%20bar%2C%20%C3%98%20100?unique=8669c53)
|
Type number: 147 |
14.65 € | |
![[101993] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 10 bar, Ø 160](/web/image/product.template/169965/image_128/%5B101993%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%2010%20bar%2C%20%C3%98%20160?unique=80554ce)
|
Type number: 157 |
30.70 € | |
![[101956] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 10 bar, Ø 80](/web/image/product.template/169928/image_128/%5B101956%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%2010%20bar%2C%20%C3%98%2080?unique=5ada4b7)
|
Type number: 136 |
12.76 € | |
![[101980] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0-160 bar, Ø 100](/web/image/product.template/169952/image_128/%5B101980%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200-160%20bar%2C%20%C3%98%20100?unique=b2ad711)
|
Type number: 150/3 |
16.62 € | |
![[101970] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 1.6 bar, Ø 100](/web/image/product.template/169942/image_128/%5B101970%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%201.6%20bar%2C%20%C3%98%20100?unique=048ff45)
|
Type number: 143 |
14.65 € | |
![[101975] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 16 bar, Ø 100](/web/image/product.template/169947/image_128/%5B101975%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%2016%20bar%2C%20%C3%98%20100?unique=f6cac08)
|
Type number: 148 |
14.65 € | |
![[101989] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 1.6 bar, Ø 160](/web/image/product.template/169961/image_128/%5B101989%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%201.6%20bar%2C%20%C3%98%20160?unique=8f43b4c)
|
Type number: 153 |
30.70 € | |
![[101994] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 16 bar, Ø 160](/web/image/product.template/169966/image_128/%5B101994%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%2016%20bar%2C%20%C3%98%20160?unique=6e141d1)
|
Type number: 158 |
30.70 € | |
![[101952] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 1.6 bar, Ø 80](/web/image/product.template/169924/image_128/%5B101952%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%201.6%20bar%2C%20%C3%98%2080?unique=2547beb)
|
Type number: 132 |
12.76 € | |
![[101957] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 16 bar, Ø 80](/web/image/product.template/169929/image_128/%5B101957%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%2016%20bar%2C%20%C3%98%2080?unique=f6cac08)
|
Type number: 137 |
12.76 € | |
![[101969] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 1 bar, Ø 100](/web/image/product.template/169941/image_128/%5B101969%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%201%20bar%2C%20%C3%98%20100?unique=551615c)
|
Type number: 142 |
14.65 € | |
![[101988] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 1 bar, Ø 160](/web/image/product.template/169960/image_128/%5B101988%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%201%20bar%2C%20%C3%98%20160?unique=e640e55)
|
Type number: 152 |
30.70 € | |
![[101951] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 1 bar, Ø 80](/web/image/product.template/169923/image_128/%5B101951%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%201%20bar%2C%20%C3%98%2080?unique=a75e582)
|
Type number: 131 |
12.76 € | |
![[101971] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 2.5 bar, Ø 100](/web/image/product.template/169943/image_128/%5B101971%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%202.5%20bar%2C%20%C3%98%20100?unique=bfbd3da)
|
Type number: 144 |
14.65 € | |
![[101976] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 25 bar, Ø 100](/web/image/product.template/169948/image_128/%5B101976%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%2025%20bar%2C%20%C3%98%20100?unique=f6cac08)
|
Type number: 149 |
14.65 € | |
![[101990] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 2.5 bar, Ø 160](/web/image/product.template/169962/image_128/%5B101990%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%202.5%20bar%2C%20%C3%98%20160?unique=3ad04b4)
|
Type number: 154 |
30.70 € | |
![[101995] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 25 bar, Ø 160](/web/image/product.template/169967/image_128/%5B101995%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%2025%20bar%2C%20%C3%98%20160?unique=10d657a)
|
Type number: 159 |
30.70 € | |
![[101953] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 2.5 bar, Ø 80](/web/image/product.template/169925/image_128/%5B101953%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%202.5%20bar%2C%20%C3%98%2080?unique=caa2d35)
|
Type number: 133 |
12.76 € | |
![[101958] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 25 bar, Ø 80](/web/image/product.template/169930/image_128/%5B101958%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%2025%20bar%2C%20%C3%98%2080?unique=f6cac08)
|
Type number: 138 |
12.76 € | |
![[101977] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 40 bar, Ø 100](/web/image/product.template/169949/image_128/%5B101977%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%2040%20bar%2C%20%C3%98%20100?unique=fdbcc73)
|
Type number: 150 |
14.65 € | |
![[101996] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 40 bar, Ø 160](/web/image/product.template/169968/image_128/%5B101996%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%2040%20bar%2C%20%C3%98%20160?unique=9d9af33)
|
Type number: 160 |
30.70 € | |
![[101959] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 40 bar, Ø 80](/web/image/product.template/169931/image_128/%5B101959%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%2040%20bar%2C%20%C3%98%2080?unique=8aaf383)
|
Type number: 139 |
12.76 € | |

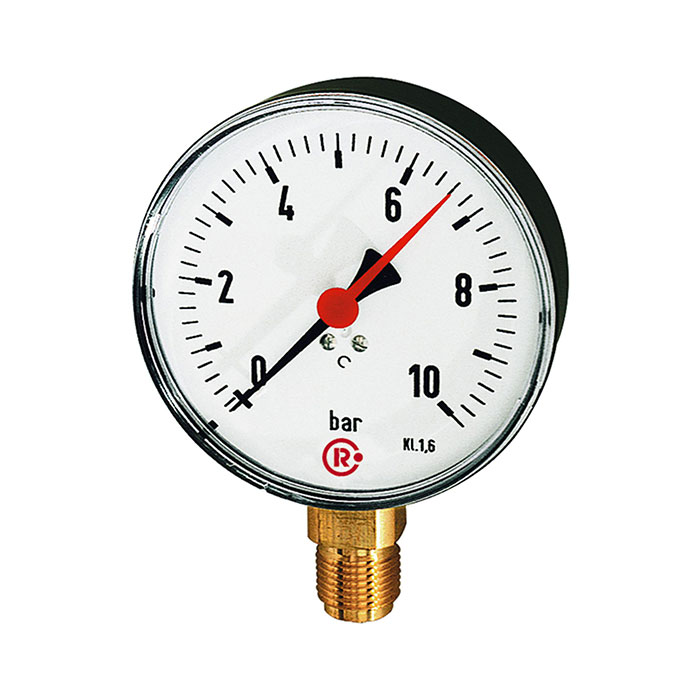

![[101972] RIEGLER Standard pressure gauge, radial bottom, G 1/2, 0 - 4 bar, Ø 100](/web/image/product.template/169944/image_128/%5B101972%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-2%2C%200%20-%204%20bar%2C%20%C3%98%20100?unique=158559c)
|
