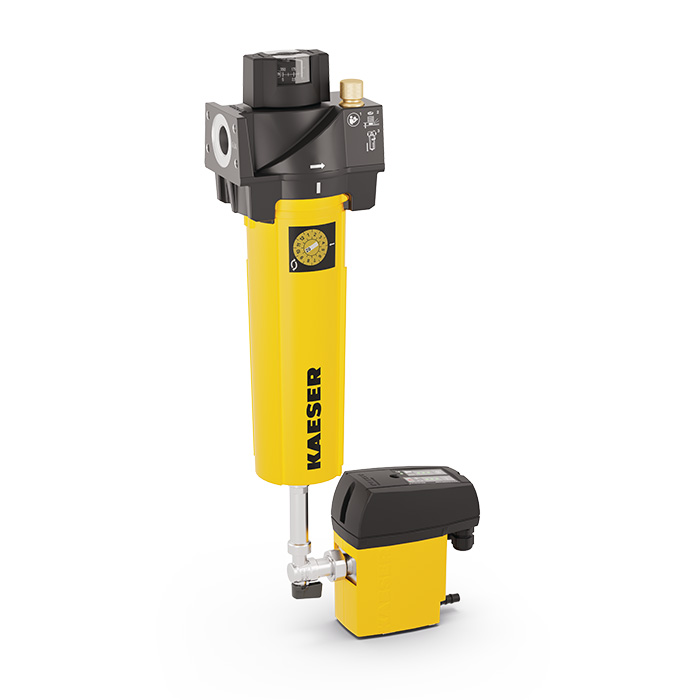

KAESER Filter Extra model F6KE G 3/8", ECO-DRAIN 31F
Volume flow: 0.60 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Product no. :
102103.10141Category :
Compressed Air FiltersWeight :
3.60 kgDelivery area :
DeutschlandThe KAESER coalescence filter Extra offers the same effective filtration as the KB model, but for even higher compressed air quality. It reliably removes solid and liquid aerosols as well as ultra-fine particles, providing optimum protection for your compressed air systems.
| Volume flow (m³/min) | 0,60 |
| Compressed air inlet connection | G 3/8" |
| Differential pressure in new condition | < 0,05 |
| Differential pressure at saturation | < 0,2 |
| Residual aerosol content | < 0,01 |
| Min. overpressure (bar) | 2 |
| Max. Overpressure (bar) | 16 |
| Weight (kg) | 3,6 |
| Width (mm) | 238 |
| Height (mm) | 459 |
| Depth (mm) | 219 |
| Condensate drain | ECO-DRAIN 31F |
| Degree of filtration | KE - Coalescence filter Extra |
Product variants
| Product | Price | ||
|---|---|---|---|
![[MDM500199686] KAESER Filter Extra model F6KE G 3/8", Ball valve](/web/image/product.template/262465/image_128/%5BMDM500199686%5D%20KAESER%20Filter%20Extra%20model%20F6KE%20G%203-8%22%2C%20Ball%20valve?unique=d72a765)
|
Volume flow: 0.60 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³ |
315.05 € | |
![[MDM500011073] KAESER Filter Extra model F6KE G 3/8", ECO-DRAIN 30](/web/image/product.template/262370/image_128/%5BMDM500011073%5D%20KAESER%20Filter%20Extra%20model%20F6KE%20G%203-8%22%2C%20ECO-DRAIN%2030?unique=faac79f)
|
Volume flow: 0.60 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³ |
552.46 € | |
![[102103.10111] KAESER Filter Extra model F6KE G 3/8", Float drain](/web/image/product.template/262252/image_128/%5B102103.10111%5D%20KAESER%20Filter%20Extra%20model%20F6KE%20G%203-8%22%2C%20Float%20drain?unique=cf554a7)
|
Volume flow: 0.60 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³ |
315.05 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[405341.0] KAESER mounting KIT connecting flange KF1.2](/web/image/product.template/226068/image_128/%5B405341.0%5D%20KAESER%20mounting%20KIT%20connecting%20flange%20KF1.2?unique=7085d25)
|
Assembly kit / connection kit for 2 KAESER compressed air filters |
37.49 € | |
![[4E0519.0] KAESER KIT wall holder filter KF1.2](/web/image/product.template/226190/image_128/%5B4E0519.0%5D%20KAESER%20KIT%20wall%20holder%20filter%20KF1.2?unique=ef71e09)
|
KIT Wall bracket for KAESER compressed air filters |
68.78 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[8.2474.01540] KAESER ECO-DRAIN 31/31F service unit](/web/image/product.template/16858/image_128/%5B8.2474.01540%5D%20KAESER%20ECO-DRAIN%2031-31F%20service%20unit?unique=7085d25)
|
Für Kondensatableiter KAESER ECO-DRAIN 31/31F |
185.64 € | |
![[901507.0] KAESER Filter element E110KB](/web/image/product.template/16500/image_128/%5B901507.0%5D%20KAESER%20Filter%20element%20E110KB%20%20?unique=ef71e09)
|
Filterelement für KAESER Filter Basic Modell F110KB |
583.10 € | |
