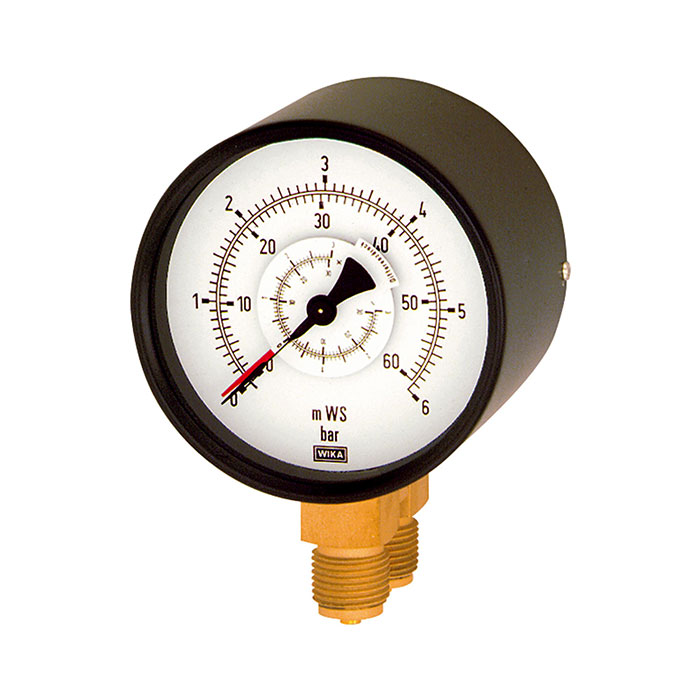

RIEGLER Differential pressure gauge, parallel, 2 x G 1/2, 0-1.6 bar, Ø100
Type number: 1202
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Differential pressure gauge with 2 parallel spigot connections radial bottom, G 1/2, type 711.12, grade 1.6, measuring range 0-1.6 bar, Ø 100
| Housing | Steel, black |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Type | 711.12 |
| Measuring element | Copper alloy |
| Pointer movement | Copper alloy |
| Viewing window | Instrument flat glass |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 1.6 |
| Diameter | 100 mm |
| Graduation value in the bar range | 0.05 bar |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/2 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Quality class | 45444 |
| Lower / Upper measuring range limit | Overpressure |
| Ring | Steel, black |
| Connection position | radial bottom |
| Class name | MAX |
| Process connection material | Copper alloy |
